Last Update
29.04.2025
Configuration-Code BD220CL_12_2500
Code number 102Z3020
Type designation BD220CL 12V DC
Product status 现有型号
Data Sheet Download
Setup
Polynomial BD220CL_12_2500 BD220CL_12_3000 BD220CL_12_3500 BD220CL_12_4000
Voltage range [V … V] 10 … 17 10 … 17 10 … 17 10 … 17
Frequency 0 0 0 0
High starting torque yes yes yes yes
Run capacitor no no no no
Motor speed [rpm] 2500 3000 3500 4000
Variable speed yes yes yes yes
Refrigerant R404A R404A R404A R404A
Specials Tropical use recommended no no no no
Heavy duty pull down capability no no no no
Mobile operation possible yes yes yes yes
Hot gas defrost capability no no no no
Cooling Required cooling Max. ambient temp.: 38°C S (static cooling) Max. ambient temp.: 38°C S (static cooling) Max. ambient temp.: 38°C S (static cooling) Max. ambient temp.: 38°C S (static cooling)

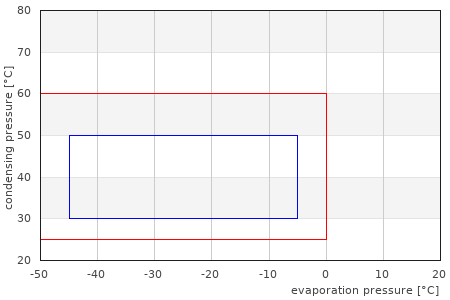

Operation limits diagram = short = continuous
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 105 | 359 n/a | n/a n/a | n/a n/a | n/a 125 | 427 n/a | n/a n/a | n/a n/a | n/a 145 | 495 n/a | n/a n/a | n/a n/a | n/a 164 | 560 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.8 | 2.7 n/a | n/a n/a | n/a n/a | n/a 0.82 | 2.8 n/a | n/a n/a | n/a n/a | n/a 0.84 | 2.9 n/a | n/a n/a | n/a n/a | n/a 0.84 | 2.9 n/a | n/a n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 156 | 533 n/a | n/a n/a | n/a n/a | n/a 186 | 635 n/a | n/a n/a | n/a n/a | n/a 217 | 741 n/a | n/a n/a | n/a n/a | n/a 245 | 837 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.14 | 3.9 n/a | n/a n/a | n/a n/a | n/a 1.16 | 4 n/a | n/a n/a | n/a n/a | n/a 1.19 | 4.1 n/a | n/a n/a | n/a n/a | n/a 1.19 | 4.1 n/a | n/a n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 79 | 270 n/a | n/a n/a | n/a n/a | n/a 94 | 321 n/a | n/a n/a | n/a n/a | n/a 109 | 372 n/a | n/a n/a | n/a n/a | n/a 122 | 417 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.79 | 2.7 n/a | n/a n/a | n/a n/a | n/a 0.79 | 2.7 n/a | n/a n/a | n/a n/a | n/a 0.81 | 2.8 n/a | n/a n/a | n/a n/a | n/a 0.8 | 2.7 n/a | n/a n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 117 | 400 n/a | n/a n/a | n/a n/a | n/a 139 | 475 n/a | n/a n/a | n/a n/a | n/a 162 | 553 n/a | n/a n/a | n/a n/a | n/a 183 | 625 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.86 | 2.9 n/a | n/a n/a | n/a n/a | n/a 0.87 | 3 n/a | n/a n/a | n/a n/a | n/a 0.89 | 3 n/a | n/a n/a | n/a n/a | n/a 0.89 | 3 n/a | n/a n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 180 | 615 n/a | n/a n/a | n/a n/a | n/a 214 | 731 n/a | n/a n/a | n/a n/a | n/a 248 | 847 n/a | n/a n/a | n/a n/a | n/a 279 | 953 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.37 | 4.7 n/a | n/a n/a | n/a n/a | n/a 1.37 | 4.7 n/a | n/a n/a | n/a n/a | n/a 1.37 | 4.7 n/a | n/a n/a | n/a n/a | n/a 1.36 | 4.6 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 168 | 574 n/a | n/a n/a | n/a n/a | n/a 200 | 683 n/a | n/a n/a | n/a n/a | n/a 231 | 789 n/a | n/a n/a | n/a n/a | n/a 260 | 888 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.37 | 4.7 n/a | n/a n/a | n/a n/a | n/a 1.34 | 4.6 n/a | n/a n/a | n/a n/a | n/a 1.33 | 4.5 n/a | n/a n/a | n/a n/a | n/a 1.3 | 4.4 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 146 | 499 n/a | n/a n/a | n/a n/a | n/a 173 | 591 n/a | n/a n/a | n/a n/a | n/a 201 | 686 n/a | n/a n/a | n/a n/a | n/a 226 | 772 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.14 | 3.9 n/a | n/a n/a | n/a n/a | n/a 1.14 | 3.9 n/a | n/a n/a | n/a n/a | n/a 1.16 | 4 n/a | n/a n/a | n/a n/a | n/a 1.14 | 3.9 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
