Last Update
29.04.2025
Configuration-Code SC15G16oc
Code number 104G7560
Type designation SC15G
Product status 变体型号
Data Sheet Download
Setup
Polynomial SC15G16oc
Voltage range [V … V] 103 … 127
Frequency 60
High starting torque yes
Run capacitor no
Motor speed [rpm] 3500
Variable speed no
Refrigerant R134a
Specials Tropical use recommended no
Heavy duty pull down capability yes
Mobile operation possible no
Hot gas defrost capability yes
Cooling Required cooling Max. ambient temp.: 43°C OC (oil cooler)

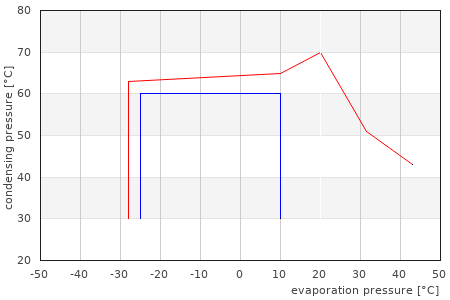

Operation limits diagram = short = continuous
CECOMAF CECOMAF ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 256 | 874 685 | 2339 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.84 | 2.9 1.32 | 4.5 n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 362 | 1236 899 | 3070 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.1 | 3.8 1.59 | 5.4 n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 145 | 495 780 | 2664 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.7 | 2.4 1.57 | 5.4 n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 306 | 1045 851 | 2906 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.92 | 3.1 1.55 | 5.3 n/a | n/a
AHAM AHAM ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 431 | 1472 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.29 | 4.4 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 398 | 1359 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.25 | 4.3 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 346 | 1182 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.1 | 3.8 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a
