Last Update
29.04.2025
Configuration-Code TL3G25
Code number 102G4350 102G4352 102G4353
Type designation TL3G TL3G TL3G
Product status 现有型号 变体型号 变体型号
Data Sheet Download Download Download
Setup
Polynomial TL3G25 TL3G26
Voltage range [V … V] 187 … 254 198 … 254
Frequency 50 60
High starting torque yes yes
Run capacitor no no
Motor speed [rpm] 2900 3500
Variable speed no no
Refrigerant R134a R134a
Specials Tropical use recommended yes no
Heavy duty pull down capability yes yes
Mobile operation possible no no
Hot gas defrost capability yes yes
Cooling Required cooling Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C S (static cooling)

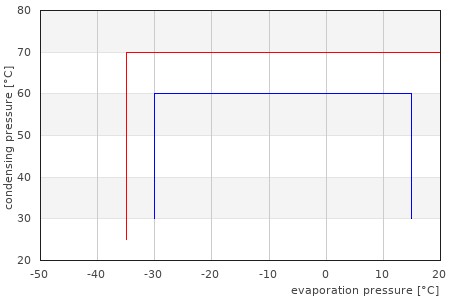

Operation limits diagram = short = continuous
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 41 | 140 106 | 362 211 | 721 n/a | n/a 47 | 161 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.62 | 2.1 1.1 | 3.8 1.59 | 5.4 n/a | n/a 0.68 | 2.3 n/a | n/a n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 58 | 198 139 | 475 257 | 878 n/a | n/a 68 | 232 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.85 | 2.9 1.34 | 4.6 1.86 | 6.4 n/a | n/a 0.92 | 3.1 n/a | n/a n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 30 | 102 127 | 434 224 | 765 n/a | n/a 35 | 120 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.59 | 2 1.36 | 4.6 1.74 | 5.9 n/a | n/a 0.65 | 2.2 n/a | n/a n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 52 | 178 136 | 464 221 | 755 n/a | n/a 60 | 205 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.76 | 2.6 1.35 | 4.6 1.6 | 5.5 n/a | n/a 0.83 | 2.8 n/a | n/a n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 74 | 253 n/a | n/a n/a | n/a n/a | n/a 86 | 294 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.09 | 3.7 n/a | n/a n/a | n/a n/a | n/a 1.18 | 4 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 70 | 239 n/a | n/a n/a | n/a n/a | n/a 82 | 280 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.05 | 3.6 n/a | n/a n/a | n/a n/a | n/a 1.15 | 3.9 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 60 | 205 n/a | n/a n/a | n/a n/a | n/a 70 | 239 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.93 | 3.2 n/a | n/a n/a | n/a n/a | n/a 1.01 | 3.4 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
