Last Update
29.04.2025
Configuration-Code TL4G15
Code number 102G3460 102G3462 102G3464 102G3465 102G3468
Type designation TL4G TL4G TL4G TL4G TL4G
Product status 现有型号 变体型号 变体型号 变体型号 变体型号
Data Sheet Download Download Download Download Download
Setup
Polynomial TL4G15 TL4G16 TL4G15_513A TL4G16_513A
Voltage range [V … V] 90 … 127 90 … 135 90 … 127 90 … 135
Frequency 50 60 50 60
High starting torque yes yes yes yes
Run capacitor no no no no
Motor speed [rpm] 2900 3500 2900 3500
Variable speed no no no no
Refrigerant R134a R134a R513A R513A
Specials Tropical use recommended yes yes yes yes
Heavy duty pull down capability yes yes yes yes
Mobile operation possible no no no no
Hot gas defrost capability yes yes yes yes
Cooling Required cooling Max. ambient temp.: 38°C S (static cooling) Max. ambient temp.: 43°C S (static cooling) Max. ambient temp.: 38°C S (static cooling) Max. ambient temp.: 43°C S (static cooling)

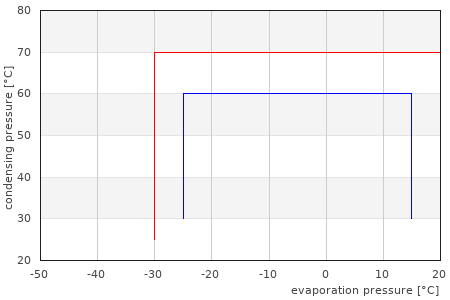

Operation limits diagram = short = continuous
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 54 | 184 136 | 464 277 | 946 n/a | n/a 64 | 219 163 | 557 333 | 1137 n/a | n/a 58 | 198 141 | 482 280 | 956 n/a | n/a 69 | 236 169 | 577 337 | 1151
COP | EER [W/W | Btu/Wh] n/a | n/a 0.59 | 2 1 | 3.4 1.46 | 5 n/a | n/a 0.71 | 2.4 1.2 | 4.1 1.76 | 6 n/a | n/a 0.59 | 2 0.98 | 3.3 1.41 | 4.8 n/a | n/a 0.71 | 2.4 1.17 | 4 1.7 | 5.8
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 75 | 256 180 | 615 337 | 1151 n/a | n/a 89 | 304 215 | 734 405 | 1383 n/a | n/a 82 | 280 188 | 642 346 | 1182 n/a | n/a 99 | 338 226 | 772 416 | 1421
COP | EER [W/W | Btu/Wh] n/a | n/a 0.78 | 2.7 1.22 | 4.2 1.71 | 5.8 n/a | n/a 0.94 | 3.2 1.46 | 5 2.06 | 7 n/a | n/a 0.8 | 2.7 1.21 | 4.1 1.68 | 5.7 n/a | n/a 0.96 | 3.3 1.45 | 5 2.03 | 6.9
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 28 | 96 163 | 557 289 | 987 n/a | n/a 34 | 116 196 | 669 347 | 1185 n/a | n/a 32 | 109 170 | 581 293 | 1001 n/a | n/a 38 | 130 204 | 697 352 | 1202
COP | EER [W/W | Btu/Wh] n/a | n/a 0.35 | 1.2 1.24 | 4.2 1.57 | 5.4 n/a | n/a 0.42 | 1.4 1.49 | 5.1 1.89 | 6.5 n/a | n/a 0.36 | 1.2 1.23 | 4.2 1.52 | 5.2 n/a | n/a 0.43 | 1.5 1.47 | 5 1.83 | 6.2
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 63 | 215 175 | 598 290 | 990 n/a | n/a 76 | 260 210 | 717 348 | 1188 n/a | n/a 67 | 229 180 | 615 289 | 987 n/a | n/a 80 | 273 216 | 738 348 | 1188
COP | EER [W/W | Btu/Wh] n/a | n/a 0.65 | 2.2 1.21 | 4.1 1.47 | 5 n/a | n/a 0.78 | 2.7 1.46 | 5 1.76 | 6 n/a | n/a 0.64 | 2.2 1.18 | 4 1.4 | 4.8 n/a | n/a 0.77 | 2.6 1.42 | 4.8 1.69 | 5.8
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 91 | 311 n/a | n/a n/a | n/a n/a | n/a 110 | 376 n/a | n/a n/a | n/a n/a | n/a 100 | 342 n/a | n/a n/a | n/a n/a | n/a 120 | 410 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.94 | 3.2 n/a | n/a n/a | n/a n/a | n/a 1.13 | 3.9 n/a | n/a n/a | n/a n/a | n/a 0.96 | 3.3 n/a | n/a n/a | n/a n/a | n/a 1.15 | 3.9 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 82 | 280 n/a | n/a n/a | n/a n/a | n/a 99 | 338 n/a | n/a n/a | n/a n/a | n/a 90 | 307 n/a | n/a n/a | n/a n/a | n/a 108 | 369 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.87 | 3 n/a | n/a n/a | n/a n/a | n/a 1.04 | 3.6 n/a | n/a n/a | n/a n/a | n/a 0.88 | 3 n/a | n/a n/a | n/a n/a | n/a 1.06 | 3.6 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 73 | 249 n/a | n/a n/a | n/a n/a | n/a 88 | 301 n/a | n/a n/a | n/a n/a | n/a 80 | 273 n/a | n/a n/a | n/a n/a | n/a 96 | 328 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.78 | 2.7 n/a | n/a n/a | n/a n/a | n/a 0.93 | 3.2 n/a | n/a n/a | n/a n/a | n/a 0.79 | 2.7 n/a | n/a n/a | n/a n/a | n/a 0.95 | 3.2 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
