Last Update
29.04.2025
Configuration-Code TL5F25
Code number 102G4501
Type designation TL5F
Product status 现有型号
Data Sheet Download
Setup
Polynomial TL5F25
Voltage range [V … V] 198 … 254
Frequency 50
High starting torque yes
Run capacitor no
Motor speed [rpm] 2900
Variable speed no
Refrigerant R134a
Specials Tropical use recommended no
Heavy duty pull down capability no
Mobile operation possible no
Hot gas defrost capability no
Cooling Required cooling Max. ambient temp.: 38°C S (static cooling)

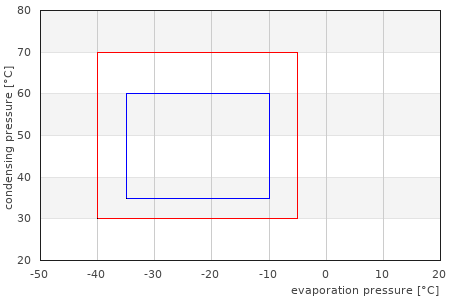

Operation limits diagram = short = continuous
CECOMAF CECOMAF ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 82 | 280 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.81 | 2.8 n/a | n/a n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 113 | 386 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.06 | 3.6 n/a | n/a n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 59 | 201 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.8 | 2.7 n/a | n/a n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 95 | 324 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.9 | 3.1 n/a | n/a n/a | n/a
AHAM AHAM ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 131 | 447 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.28 | 4.4 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 121 | 413 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.26 | 4.3 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 109 | 372 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.11 | 3.8 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a
