Last Update
29.04.2025
Configuration-Code TL5G25
Code number 102G4550 102G4552 102G4553 102G4564 102G4566 102G4567
Type designation TL5G TL5G TL5G TL5G TL5G TL5G
Product status 现有型号 变体型号 变体型号 变体型号 变体型号 变体型号
Data Sheet Download Download Download Download Download
Setup
Polynomial TL5G25 TL5G26 TL5G25_513 TL5G26_513
Voltage range [V … V] 187 … 254 198 … 254 187 … 254 198 … 253
Frequency 50 60 50 60
High starting torque yes yes yes yes
Run capacitor no no no no
Motor speed [rpm] 2900 3500 2900 3500
Variable speed no no no no
Refrigerant R134a R134a R513A R513A
Specials Tropical use recommended yes no yes no
Heavy duty pull down capability yes yes yes yes
Mobile operation possible no no no no
Hot gas defrost capability yes yes yes yes
Cooling Required cooling Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C S (static cooling) Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C S (static cooling)

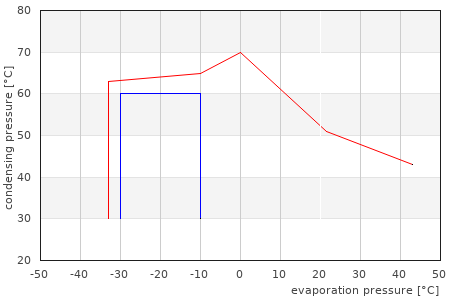

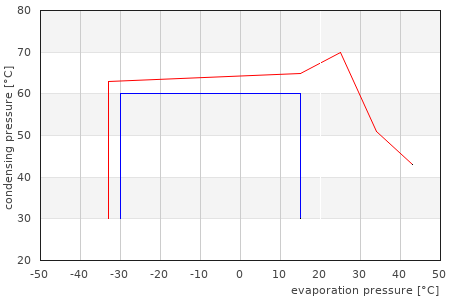

Operation limits diagram = short = continuous
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 79 | 270 178 | 608 341 | 1165 n/a | n/a 91 | 311 n/a | n/a n/a | n/a n/a | n/a 86 | 294 185 | 632 346 | 1182 n/a | n/a 99 | 338 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.79 | 2.7 1.19 | 4.1 1.67 | 5.7 n/a | n/a 0.87 | 3 n/a | n/a n/a | n/a n/a | n/a 0.79 | 2.7 1.17 | 4 1.61 | 5.5 n/a | n/a 0.86 | 2.9 n/a | n/a n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 109 | 372 230 | 785 413 | 1410 n/a | n/a 126 | 430 n/a | n/a n/a | n/a n/a | n/a 121 | 413 242 | 826 425 | 1451 n/a | n/a 140 | 478 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.03 | 3.5 1.43 | 4.9 1.94 | 6.6 n/a | n/a 1.12 | 3.8 n/a | n/a n/a | n/a n/a | n/a 1.06 | 3.6 1.42 | 4.8 1.91 | 6.5 n/a | n/a 1.14 | 3.9 n/a | n/a n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 54 | 184 200 | 683 351 | 1199 n/a | n/a 64 | 219 n/a | n/a n/a | n/a n/a | n/a 61 | 208 210 | 717 357 | 1219 n/a | n/a 72 | 246 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.74 | 2.5 1.42 | 4.8 1.79 | 6.1 n/a | n/a 0.85 | 2.9 n/a | n/a n/a | n/a n/a | n/a 0.75 | 2.6 1.41 | 4.8 1.74 | 5.9 n/a | n/a 0.87 | 3 n/a | n/a n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 90 | 307 218 | 744 354 | 1209 n/a | n/a 105 | 359 n/a | n/a n/a | n/a n/a | n/a 95 | 324 225 | 768 355 | 1212 n/a | n/a 111 | 379 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.86 | 2.9 1.41 | 4.8 1.67 | 5.7 n/a | n/a 0.94 | 3.2 n/a | n/a n/a | n/a n/a | n/a 0.85 | 2.9 1.37 | 4.7 1.6 | 5.5 n/a | n/a 0.91 | 3.1 n/a | n/a n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 121 | 413 n/a | n/a n/a | n/a n/a | n/a 142 | 485 n/a | n/a n/a | n/a n/a | n/a 133 | 454 n/a | n/a n/a | n/a n/a | n/a 157 | 536 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.19 | 4.1 n/a | n/a n/a | n/a n/a | n/a 1.29 | 4.4 n/a | n/a n/a | n/a n/a | n/a 1.22 | 4.2 n/a | n/a n/a | n/a n/a | n/a 1.31 | 4.5 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 112 | 382 n/a | n/a n/a | n/a n/a | n/a 132 | 451 n/a | n/a n/a | n/a n/a | n/a 124 | 423 n/a | n/a n/a | n/a n/a | n/a 146 | 499 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.17 | 4 n/a | n/a n/a | n/a n/a | n/a 1.28 | 4.4 n/a | n/a n/a | n/a n/a | n/a 1.2 | 4.1 n/a | n/a n/a | n/a n/a | n/a 1.3 | 4.4 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 100 | 342 n/a | n/a n/a | n/a n/a | n/a 118 | 403 n/a | n/a n/a | n/a n/a | n/a 110 | 376 n/a | n/a n/a | n/a n/a | n/a 129 | 441 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.03 | 3.5 n/a | n/a n/a | n/a n/a | n/a 1.13 | 3.9 n/a | n/a n/a | n/a n/a | n/a 1.05 | 3.6 n/a | n/a n/a | n/a n/a | n/a 1.14 | 3.9 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
