Last Update
29.04.2025
Configuration-Code TL5CNK25
Code number 102H4590 102H4594 102H4595
Type designation TL5CN TL5CN TL5CN
Product status 现有型号 变体型号 变体型号
Data Sheet Download Download Download
Setup
Polynomial TL5CNK25
Voltage range [V … V] 198 … 254
Frequency 50
High starting torque yes
Run capacitor no
Motor speed [rpm] 2900
Variable speed no
Refrigerant R290
Specials Tropical use recommended no
Heavy duty pull down capability yes
Mobile operation possible no
Hot gas defrost capability yes
Cooling Required cooling Max. ambient temp.: 43°C F1 (fan 1.5m/s)

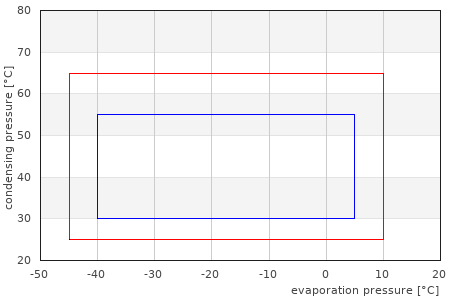

Operation limits diagram = short = continuous
CECOMAF CECOMAF ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 153 | 522 291 | 994 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.91 | 3.1 1.29 | 4.4 n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 205 | 700 367 | 1253 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.18 | 4 1.53 | 5.2 n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 116 | 396 332 | 1134 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.9 | 3.1 1.57 | 5.4 n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 168 | 574 349 | 1192 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.98 | 3.3 1.52 | 5.2 n/a | n/a
AHAM AHAM ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 227 | 775 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.39 | 4.7 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 213 | 727 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.4 | 4.8 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 192 | 656 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.2 | 4.1 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a
