Konfigurations-Code KLF77CNQ-25G2 |
|||||
|---|---|---|---|---|---|
| Bestellnummer | 106H2809 | ||||
| Typenbezeichnung | KLF7.7CNQX | ||||
| Produkt Status | Produktion - aktiv | ||||
| Datenblatt | Download | Konfiguration | |||
| Polynom | KLF77CNQ-25G2 | ||||
| Spannungsbereich | 187 … 254 | ||||
| Frequenz | 50 | ||||
| hohes Startmoment | ja | ||||
| Betriebskondensator | nein | ||||
| Motordrehzahl (UpM) | 3000 | ||||
| drehzahlgeregelt | nein | ||||
| Kältemittel | R290 | ||||
| Besonderheiten | tropische Anwendung empfohlen | ja | |||
| Schwerlast Pull Down möglich | ja | ||||
| mobiler Betrieb möglich | nein | ||||
| Heiß-Gas Abtauung möglich | ja | ||||
| Kühlung | erforderliche Kühlung d. Verdichters | Max. ambient temp.: 43°C F2 (fan 3m/s) | |||

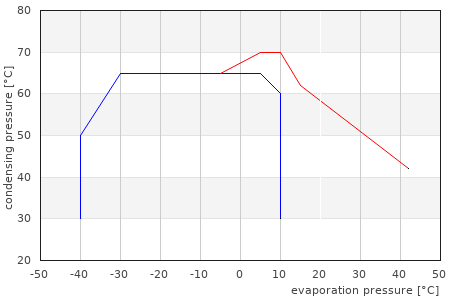

| Anwendungsdiagramm = kurz = fortlaufend |
|
||||
| CECOMAF | CECOMAF | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 291 | 994 | 548 | 1871 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.25 | 4.3 | 1.73 | 5.9 | n/a | n/a | |
| ASHRAE | ASHRAE | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 388 | 1325 | 688 | 2350 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.61 | 5.5 | 2.06 | 7 | n/a | n/a | |
| EN12900 | EN12900 | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 214 | 731 | 602 | 2056 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.17 | 4 | 2.06 | 7 | n/a | n/a | |
| ARI540 | ARI540 | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 313 | 1069 | 640 | 2186 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.32 | 4.5 | 2.01 | 6.9 | n/a | n/a | |
| AHAM | AHAM | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 413 | 1410 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.83 | 6.2 | n/a | n/a | n/a | n/a | |
| VSD_opt1 | VSD_opt1 | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 383 | 1308 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.83 | 6.2 | n/a | n/a | n/a | n/a | |
| VSD_opt2 | VSD_opt2 | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 352 | 1202 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.59 | 5.4 | n/a | n/a | n/a | n/a | |
| lowTemp | lowTemp | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
