Konfigurations-Code KLF86CND_25G3 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Bestellnummer | 106H2900 | 106H2910 | |||||||
| Typenbezeichnung | KLF8.6CND | KLF8.6CND | |||||||
| Produkt Status | Produktion - aktiv | Produktion - Variante | |||||||
| Datenblatt | Download | Download | Konfiguration | ||||||
| Polynom | KLF86CND_25G3 | KLF86CND_25RCG3 | |||||||
| Spannungsbereich | 198 … 254 | 198 … 254 | |||||||
| Frequenz | 50 | 50 | |||||||
| hohes Startmoment | ja | nein | |||||||
| Betriebskondensator | nein | ja | |||||||
| Motordrehzahl (UpM) | 2900 | 2900 | |||||||
| drehzahlgeregelt | ja | ja | |||||||
| Kältemittel | R290 | R290 | |||||||
| Besonderheiten | tropische Anwendung empfohlen | nein | nein | ||||||
| Schwerlast Pull Down möglich | ja | ja | |||||||
| mobiler Betrieb möglich | nein | nein | |||||||
| Heiß-Gas Abtauung möglich | ja | ja | |||||||
| Kühlung | erforderliche Kühlung d. Verdichters | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | ||||||

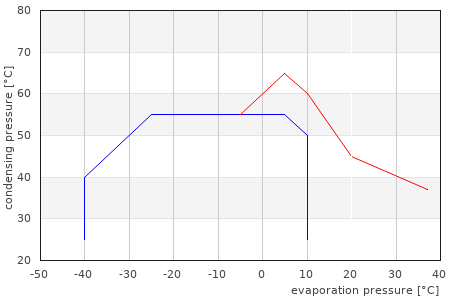

| Anwendungsdiagramm = kurz = fortlaufend |
|
|
|||||||
| CECOMAF | CECOMAF | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 342 | 1168 | 632 | 2158 | n/a | n/a | n/a | n/a | 343 | 1171 | 635 | 2169 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.25 | 4.3 | 1.69 | 5.8 | n/a | n/a | n/a | n/a | 1.32 | 4.5 | 1.8 | 6.1 | n/a | n/a | |
| ASHRAE | ASHRAE | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 456 | 1557 | 791 | 2701 | n/a | n/a | n/a | n/a | 457 | 1561 | 795 | 2715 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.61 | 5.5 | 2 | 6.8 | n/a | n/a | n/a | n/a | 1.7 | 5.8 | 2.14 | 7.3 | n/a | n/a | |
| EN12900 | EN12900 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 253 | 864 | 701 | 2394 | n/a | n/a | n/a | n/a | 254 | 867 | 704 | 2404 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.27 | 4.3 | 2.05 | 7 | n/a | n/a | n/a | n/a | 1.34 | 4.6 | 2.18 | 7.4 | n/a | n/a | |
| ARI540 | ARI540 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 367 | 1253 | 742 | 2534 | n/a | n/a | n/a | n/a | 368 | 1257 | 745 | 2544 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.34 | 4.6 | 1.97 | 6.7 | n/a | n/a | n/a | n/a | 1.42 | 4.8 | 2.11 | 7.2 | n/a | n/a | |
| AHAM | AHAM | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 485 | 1656 | n/a | n/a | n/a | n/a | n/a | n/a | 486 | 1660 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.87 | 6.4 | n/a | n/a | n/a | n/a | n/a | n/a | 1.97 | 6.7 | n/a | n/a | n/a | n/a | |
| VSD_opt1 | VSD_opt1 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 448 | 1530 | n/a | n/a | n/a | n/a | n/a | n/a | 450 | 1537 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.87 | 6.4 | n/a | n/a | n/a | n/a | n/a | n/a | 1.97 | 6.7 | n/a | n/a | n/a | n/a | |
| VSD_opt2 | VSD_opt2 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 413 | 1410 | n/a | n/a | n/a | n/a | n/a | n/a | 414 | 1414 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.63 | 5.6 | n/a | n/a | n/a | n/a | n/a | n/a | 1.72 | 5.9 | n/a | n/a | n/a | n/a | |
| lowTemp | lowTemp | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
