Konfigurations-Code NLE11MN_25RC |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Bestellnummer | 105H6177 | 105H6185 | |||||||
| Typenbezeichnung | NLE11MN | NLE11MN | |||||||
| Produkt Status | Produktion - aktiv | Produktion - Variante | |||||||
| Datenblatt | Download | Download | Konfiguration | ||||||
| Polynom | NLE11MN_25 | NLE11MN_25RC | |||||||
| Spannungsbereich | 198 … 254 | 198 … 254 | |||||||
| Frequenz | 50 | 50 | |||||||
| hohes Startmoment | ja | nein | |||||||
| Betriebskondensator | nein | ja | |||||||
| Motordrehzahl (UpM) | 2900 | 2900 | |||||||
| drehzahlgeregelt | nein | nein | |||||||
| Kältemittel | R290 | R290 | |||||||
| Besonderheiten | tropische Anwendung empfohlen | nein | nein | ||||||
| Schwerlast Pull Down möglich | ja | ja | |||||||
| mobiler Betrieb möglich | nein | nein | |||||||
| Heiß-Gas Abtauung möglich | ja | ja | |||||||
| Kühlung | erforderliche Kühlung d. Verdichters | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | ||||||

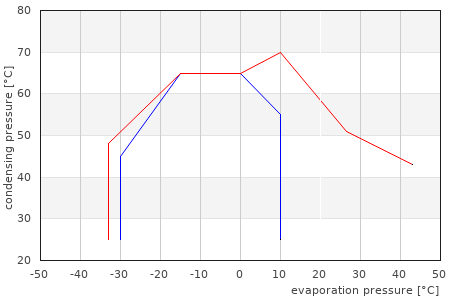

| Anwendungsdiagramm = kurz = fortlaufend |
|
|
|||||||
| CECOMAF | CECOMAF | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 423 | 1445 | 782 | 2671 | n/a | n/a | n/a | n/a | 425 | 1451 | 785 | 2681 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.24 | 4.2 | 1.68 | 5.7 | n/a | n/a | n/a | n/a | 1.3 | 4.4 | 1.77 | 6 | n/a | n/a | |
| ASHRAE | ASHRAE | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 561 | 1916 | 981 | 3350 | n/a | n/a | n/a | n/a | 563 | 1923 | 986 | 3367 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.58 | 5.4 | 2.01 | 6.9 | n/a | n/a | n/a | n/a | 1.66 | 5.7 | 2.11 | 7.2 | n/a | n/a | |
| EN12900 | EN12900 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 321 | 1096 | 869 | 2968 | n/a | n/a | n/a | n/a | 321 | 1096 | 873 | 2981 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.26 | 4.3 | 2.06 | 7 | n/a | n/a | n/a | n/a | 1.32 | 4.5 | 2.16 | 7.4 | n/a | n/a | |
| ARI540 | ARI540 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 452 | 1544 | 920 | 3142 | n/a | n/a | n/a | n/a | 454 | 1550 | 924 | 3155 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.31 | 4.5 | 1.99 | 6.8 | n/a | n/a | n/a | n/a | 1.38 | 4.7 | 2.09 | 7.1 | n/a | n/a | |
| AHAM | AHAM | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 600 | 2049 | n/a | n/a | n/a | n/a | n/a | n/a | 602 | 2056 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.84 | 6.3 | n/a | n/a | n/a | n/a | n/a | n/a | 1.93 | 6.6 | n/a | n/a | n/a | n/a | |
| VSD_opt1 | VSD_opt1 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 566 | 1933 | n/a | n/a | n/a | n/a | n/a | n/a | 568 | 1940 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.83 | 6.2 | n/a | n/a | n/a | n/a | n/a | n/a | 1.92 | 6.6 | n/a | n/a | n/a | n/a | |
| VSD_opt2 | VSD_opt2 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 510 | 1742 | n/a | n/a | n/a | n/a | n/a | n/a | 512 | 1748 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.6 | 5.5 | n/a | n/a | n/a | n/a | n/a | n/a | 1.68 | 5.7 | n/a | n/a | n/a | n/a | |
| lowTemp | lowTemp | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
