Konfigurations-Code SC12Gtwin25 |
|||||
|---|---|---|---|---|---|
| Bestellnummer | 104G8280 | ||||
| Typenbezeichnung | SC12/12G | ||||
| Produkt Status | Produktion - aktiv | ||||
| Datenblatt | Download | Konfiguration | |||
| Polynom | SC12Gtwin25 | ||||
| Spannungsbereich | 187 … 254 | ||||
| Frequenz | 50 | ||||
| hohes Startmoment | ja | ||||
| Betriebskondensator | nein | ||||
| Motordrehzahl (UpM) | 2900 | ||||
| drehzahlgeregelt | nein | ||||
| Kältemittel | R134a | ||||
| Besonderheiten | tropische Anwendung empfohlen | ja | |||
| Schwerlast Pull Down möglich | ja | ||||
| mobiler Betrieb möglich | nein | ||||
| Heiß-Gas Abtauung möglich | ja | ||||
| Kühlung | erforderliche Kühlung d. Verdichters | Max. ambient temp.: 43°C F2 (fan 3m/s) | |||

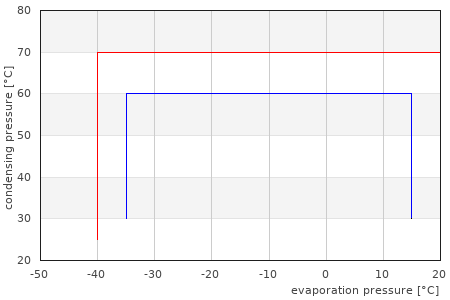

| Anwendungsdiagramm = kurz = fortlaufend |
|
||||
| CECOMAF | CECOMAF | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 350 | 1195 | 928 | 3169 | 1920 | 6557 | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 0.77 | 2.6 | 1.31 | 4.5 | 1.95 | 6.7 | |
| ASHRAE | ASHRAE | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 495 | 1690 | 1230 | 4200 | 2341 | 7995 | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.03 | 3.5 | 1.6 | 5.5 | 2.29 | 7.8 | |
| EN12900 | EN12900 | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 247 | 844 | 1094 | 3736 | 1990 | 6796 | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 0.75 | 2.6 | 1.61 | 5.5 | 2.1 | 7.2 | |
| ARI540 | ARI540 | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 431 | 1472 | 1187 | 4054 | 2009 | 6861 | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 0.9 | 3.1 | 1.59 | 5.4 | 1.96 | 6.7 | |
| AHAM | AHAM | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 631 | 2155 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.31 | 4.5 | n/a | n/a | n/a | n/a | |
| VSD_opt1 | VSD_opt1 | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 607 | 2073 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.32 | 4.5 | n/a | n/a | n/a | n/a | |
| VSD_opt2 | VSD_opt2 | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | 510 | 1742 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.11 | 3.8 | n/a | n/a | n/a | n/a | |
| lowTemp | lowTemp | ULT | LBP | MBP | HBP |
| Kälteleistung [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
