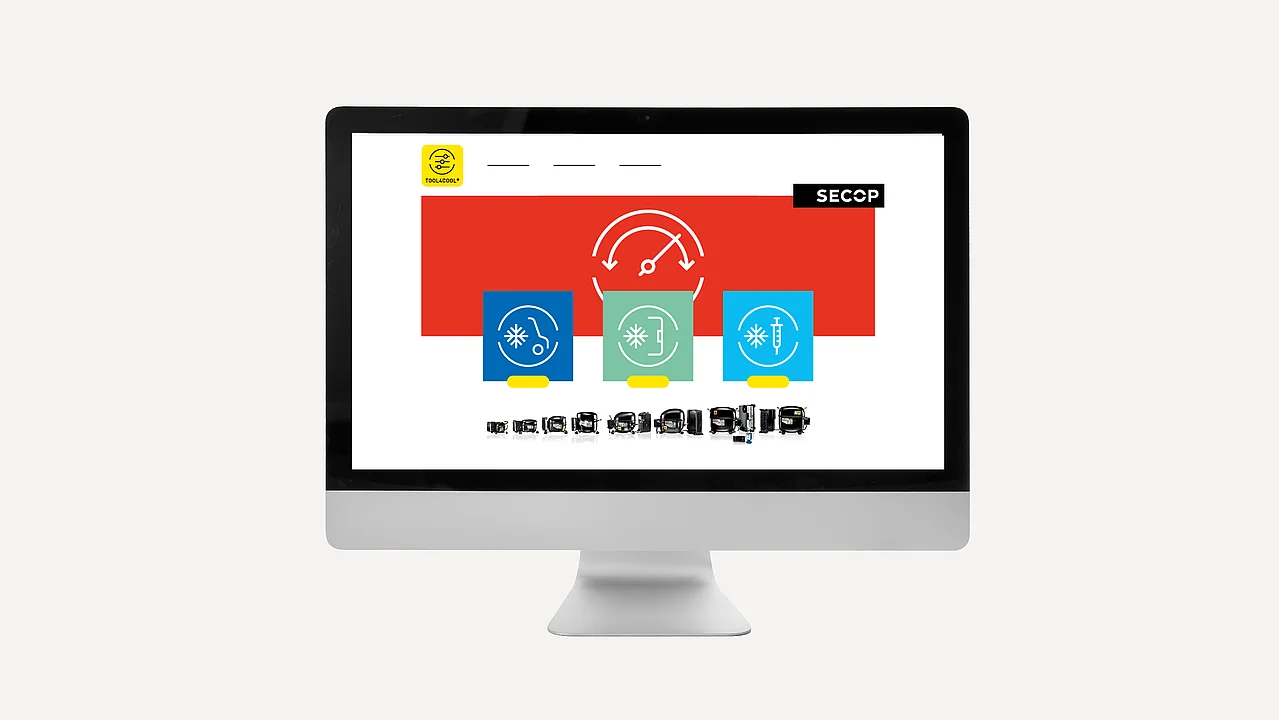

Variable-Speed Drive Software (Tool4Cool®)

Tool4Cool® is a unique PC software tool that enables you to precisely configure Secop variable speed drive compressors (inverter) to your cooling systems.

Optimum Control and Monitoring

As well as using Tool4Cool® to customise and optimize settings during development, you can also use it for remote control and monitoring of your refrigeration circuit during operation.

Tool4Cool® retrieves and sends information to all controllers in the refrigeration system, including settings, temperature and speed. This enables you to control and monitor your system from a central station. With Tool4Cool® your service department has a constant overview of your cooling system, so trouble-shooting can be carried out remotely. Technicians only need to visit the plant in the event that a component needs to be replaced, for example.

Download
Full Version (release date: December 2019)
(including FTDI driver and .NET framework)
Light Version (release date: December 2019)
(including FTDI driver, .NET framework not included)

English (203 MB)

English (13 MB)

German (203 MB)

German (13 MB)

Chinese (203 MB)

Chinese (13 MB)

Designed for Easy Operation

Tool4Cool® is a unique PC software tool that enables you to precisely configure your Secop compressors to your cooling systems.

Via microprocessor-based controllers, Tool4Cool® gives you easy access to all parameters. These can be changed, monitored, downloaded or uploaded to get the optimum performance out of your cooling system. Designed to be used with our automotive and light commercial range of compressors and controllers, Tool4Cool® covers a wide range of applications within parking cooling, light commercial cooling and transport cooling.

Using Tool4Cool®, you can determine the basic specifications of your product, giving you the ability to clearly differentiate yourself in the market.

Network System

  • Easy monitoring and optimization
  • Alarm log and event log
  • Easy service
  • HACCP logging possible

Standalone System

  • Optimize operation during development
  • Alarm and eventlog readout
  • Logging during development
  • Download settings on the production line

Product Keys and Parameter Definition Files

Product Keys

The Product Key is an alphanumeric code that is unique to single or multiple types and versions of Secop controllers. The user must enter the Product Key to gain access to the Tool4Cool® LabEdition features of the Secop controller.
Tool4Cool comes with various pre-installed Product Keys. Some special applications or extended access levels require a more unique and user-dependent key. Required Product Keys applicable for specific controllers and software versions are noted in the table below.
If not otherwise stated, the pre-installed general-purpose key applies.
General purpose key: ZH3TT6RBAD1GW8G68ZM1N8G62ZMCORVB3OEGBL12UZNAR

Parameter Definition Files

The Parameter Definition File contains the parameter data and settings specific to one type and version of Secop controller.
For some controllers, the Parameter Definition File must be imported. For others, the software will automatically obtain the Parameter Definition File from the controller electronics. When a Parameter Definition File import is required, the system will make a request via a dialog in the software.
Product Keys and  Parameter Definition Files for products not listed below are available from the supplier of the application.

Parameter Definition Files and Product Keys for Secop DC Controllers
Code
Number
Firmware
Version
Parameter
Definition File
Product Key

101N0212 01.13 ZH3TT6RBAD1GW8G68ZM1N8G62ZMCORVB3OEGBL12UZNAR
101N0242 02.68 ZH3TT6RBAD1GW8G68ZM1N8G62ZMCORVB3OEGBL12UZNAR
101N0340 01.08 ZH3TT6RBAD1GW8G68ZM1N8G62ZMCORVB3OEGBL12UZNAR
101N0390 01.07 ZH3TT6RBAD1GW8G68ZM1N8G62ZMCORVB3OEGBL12UZNAR
101N0392 01.07 ZH3TT6RBAD1GW8G68ZM1N8G62ZMCORVB3OEGBL12UZNAR
101N0420 01.12 ZH3TT6RBAD1GW8G68ZM1N8G62ZMCORVB3OEGBL12UZNAR
101N0510 01.29 ZH3TT6RBAD1GW8G68ZM1N8G62ZMCORVB3OEGBL12UZNAR
101N0650 01.09 ZH3TT6RBAD1GW8G68ZM1N8G62ZMCORVB3OEGBL12UZNAR
101N0715 01.13 ZX3TT6RBAD1GRLGB9ZM1N8G62ZMCOO916IER6GH2YZEIR
101N0720 01.20 ZF3TT6RBAD1GRLGBY311N8G62ZMCOO916IER6GH2YZEIR
101N0732 01.01 SC3TT6RBAD1GRLGBU911N8G62ZMCOO916IER6GH2YZEIR
101N0820 01.18 DG3TT6RBAD1GRLT6Y311N8G62ZMCOO916IER6GH2YZEIR
101N0830 01.03 ZH3TT6RBAD1GW8G68ZM1N8G62ZMCORVB3OEGBL12UZNAR
101N1000 02.02 ZH3TT6RBAD1GW8G68ZM1N8G62ZMCORVB3OEGBL12UZNAR
101N1010 01.00 DL3TT6RBAD1GWLTB9311N8G62ZMCOO916IER6GH2YZEIR
101N2100 01.11 ZH3TT6RBAD1GW8G68ZM1N8G62ZMCORVB3OEGBL12UZNAR
101N2130 01.82 ZH3TT6RBAD1GW8G68ZM1N8G62ZMCORVB3OEGBL12UZNAR
101N5100 01.05 ZH3TT6RBAD1GW8G68ZM1N8G62ZMCORVB3OEGBL12UZNAR
101NULT1 01.07 ZH3TT6RBAD1GW8G68ZM1N8G62ZMCORVB3OEGBL12UZNAR
Parameter Definition Files and Product Keys for Secop AC Controllers
Code
Number
Firmware
Version
Parameter
Definition File
Product Key

105N4410 01.04 DCOTT6RBADEGRXAB9311VLRB231KOO916IER6GH2YZEIR
105N4460 01.06 ZZOTT6RBADEGRXABJ311VLRB2311OO916IER6GH2YZEIR
105N4510 01.03 DCOTT6RBADEGRXWB9311VLRB231BOO916IER6GH2YZEIR
105N4600 01.13 ZCOTT6RBADEGRXLBA311VLRB2D1BOO916IER6GH2YZEIR
105N4710 01.14 DLOTT6RBADEGRXGB9311VLRB2D1KOO916IER6GH2YZEIR
105N4730 01.35 ZXOTT6RBADEGRXGBU311VLRB2Z1POO916IER6GH2YZEIR
105N4760 01.14 ZXOTT6RBADEGRXGBJ311VLRB2D1KOO916IER6GH2YZEIR
105N4762 01.13 DFOTT6RBADEGRXGBJ911VLRB2D1BOO916IER6GH2YZEIR
105N4910 01.07 MHOTT6RBADEGRXR69311VLRB2312OO916IER6GH2YZEIR
105N4960 01.07 88OTT6RBADEGRXR6J311VLRB2312OO916IER6GH2YZEIR
105N4962 01.07 8LOTT6RBADEGRXR6J911VLRB2312OO916IER6GH2YZEIR
105N4866 01.04 8LOTT6RBADEGRXT6J9E1VLRB231KOO916IER6GH2YZEIR

Compressor Connection with Secop Gateway 101N9518

Secop Gateway 105N9518 replaces the 105N9501 interface. It is fully compatible with all existing Secop electronic units (controllers) featuring a communication interface. It offers two communication modes: Secop transistor interface mode (I, D/I or COM pin name) as well as a full LIN interface (LIN pin name).

TOOL4COOL® Minimum System Requirements

  • 500 MB disk drive space for .NET Framework
  • 12 MB disk drive space for Tool4Cool®
  • Operating systems: Windows 7, 8, 10, or 11
