Last Update
29.04.2025
Configuration-Code BD1.4F_12_3000
Code number 109Z0106
Type designation BD1.4F-AUTO.3
Product status 现有型号
Data Sheet Download
Setup
Polynomial BD1.4F_12_3000 BD1.4F_12_3000YF
Voltage range [V … V] 9 … 31 9 … 31
Frequency 0 0
High starting torque yes yes
Run capacitor no no
Motor speed [rpm] 3000 3000
Variable speed yes yes
Refrigerant R134a R1234yf
Specials Tropical use recommended yes yes
Heavy duty pull down capability yes yes
Mobile operation possible yes yes
Hot gas defrost capability no no
Cooling Required cooling Max. ambient temp.: 43°C S (static cooling) Max. ambient temp.: 43°C S (static cooling)

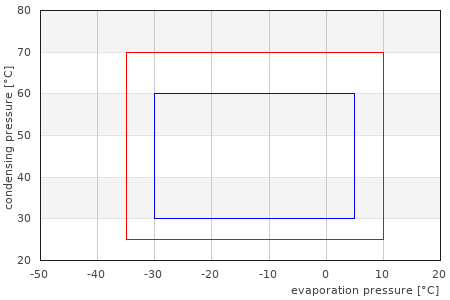

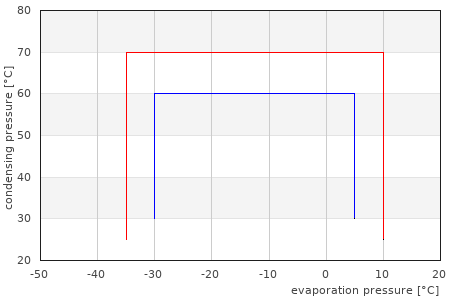

Operation limits diagram = short = continuous
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 16 | 55 51 | 174 n/a | n/a n/a | n/a 17 | 58 52 | 178 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.67 | 2.3 1.3 | 4.4 n/a | n/a n/a | n/a 0.66 | 2.3 1.26 | 4.3 n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 24 | 82 68 | 232 n/a | n/a n/a | n/a 27 | 92 70 | 239 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.93 | 3.2 1.6 | 5.5 n/a | n/a n/a | n/a 0.95 | 3.2 1.59 | 5.4 n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 10 | 34 61 | 208 n/a | n/a n/a | n/a 12 | 41 61 | 208 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.72 | 2.5 1.6 | 5.5 n/a | n/a n/a | n/a 0.72 | 2.5 1.57 | 5.4 n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 21 | 72 66 | 225 n/a | n/a n/a | n/a 21 | 72 65 | 222 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.83 | 2.8 1.59 | 5.4 n/a | n/a n/a | n/a 0.78 | 2.7 1.53 | 5.2 n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 31 | 106 n/a | n/a n/a | n/a n/a | n/a 33 | 113 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.21 | 4.1 n/a | n/a n/a | n/a n/a | n/a 1.22 | 4.2 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 30 | 102 n/a | n/a n/a | n/a n/a | n/a 32 | 109 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.21 | 4.1 n/a | n/a n/a | n/a n/a | n/a 1.21 | 4.1 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 24 | 82 n/a | n/a n/a | n/a n/a | n/a 26 | 89 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.02 | 3.5 n/a | n/a n/a | n/a n/a | n/a 1.01 | 3.4 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
