配置码 GS26GHX25 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| 销售代码 | 107B0702 | ||||||||
| 种类描述 | GS26GHX | ||||||||
| 产品状态 | 现有型号 | ||||||||
| 规格书 | 下载 | 安装 | |||||||
| 多项的 | GS26GHX25 | GS26GHX25RC_YF | |||||||
| 电压范围 | 198 … 254 | 198 … 254 | |||||||
| 频率 | 50 | 50 | |||||||
| 高启动力矩 | 是 | 是 | |||||||
| 运行电容 | 是 | 是 | |||||||
| 电机转速 | 2900 | 2900 | |||||||
| 变频 | 否 | 否 | |||||||
| 制冷剂 | R134a | R134a | |||||||
| 特殊 | 建议热带地区使用 | 否 | 否 | ||||||
| 重载下的拉温能力 | 是 | 是 | |||||||
| 可移动操作 | 否 | 否 | |||||||
| 热气除霜能力 | 是 | 是 | |||||||
| 制冷量 | 冷却矩阵 | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | ||||||

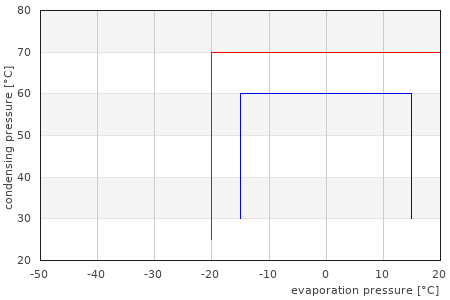

| 操作限制图 = 简短 = 持续的 |
|
|
|||||||
| CECOMAF | CECOMAF | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | 1119 | 3821 | 2152 | 7349 | n/a | n/a | n/a | n/a | 1114 | 3804 | 2049 | 6997 | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | 1.48 | 5.1 | 2.13 | 7.3 | n/a | n/a | n/a | n/a | 1.45 | 5 | 2.07 | 7.1 | |
| ASHRAE | ASHRAE | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | 1445 | 4935 | 2609 | 8910 | n/a | n/a | n/a | n/a | 1460 | 4986 | 2539 | 8671 | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | 1.79 | 6.1 | 2.49 | 8.5 | n/a | n/a | n/a | n/a | 1.79 | 6.1 | 2.48 | 8.5 | |
| EN12900 | EN12900 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | 1275 | 4354 | 2239 | 7646 | n/a | n/a | n/a | n/a | 1264 | 4317 | 2102 | 7178 | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | 1.78 | 6.1 | 2.31 | 7.9 | n/a | n/a | n/a | n/a | 1.73 | 5.9 | 2.21 | 7.5 | |
| ARI540 | ARI540 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | 1380 | 4713 | 2246 | 7670 | n/a | n/a | n/a | n/a | 1336 | 4562 | 2060 | 7035 | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | 1.76 | 6 | 2.15 | 7.3 | n/a | n/a | n/a | n/a | 1.69 | 5.8 | 2.01 | 6.9 | |
| AHAM | AHAM | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| VSD_opt1 | VSD_opt1 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| VSD_opt2 | VSD_opt2 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| lowTemp | lowTemp | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
