配置码 HTK12AA3_25 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| 销售代码 | 16111600 | CDO00038 | |||||||
| 种类描述 | HTK12AA | HTK12AA | |||||||
| 产品状态 | 现有型号 | 现有型号 | |||||||
| 规格书 | 下载 | 下载 | 安装 | ||||||
| 多项的 | HTK12AA3_25 | HTK12AA3_25RC | |||||||
| 电压范围 | 187 … 264 | 187 … 264 | |||||||
| 频率 | 50 | 50 | |||||||
| 高启动力矩 | 否 | 否 | |||||||
| 运行电容 | 否 | 是 | |||||||
| 电机转速 | 2900 | 2900 | |||||||
| 变频 | 否 | 否 | |||||||
| 制冷剂 | R600a | R600a | |||||||
| 特殊 | 建议热带地区使用 | 否 | 否 | ||||||
| 重载下的拉温能力 | 否 | 否 | |||||||
| 可移动操作 | 否 | 否 | |||||||
| 热气除霜能力 | 否 | 否 | |||||||
| 制冷量 | 冷却矩阵 | Max. ambient temp.: 43°C S (static cooling) | Max. ambient temp.: 43°C S (static cooling) | ||||||

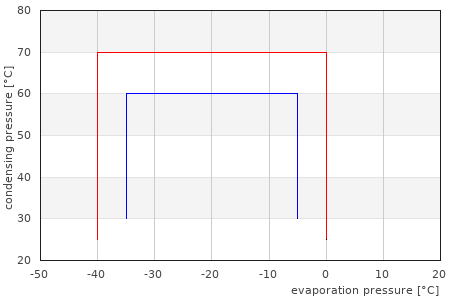

| 操作限制图 = 简短 = 持续的 |
|
|
|||||||
| CECOMAF | CECOMAF | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 149 | 509 | n/a | n/a | n/a | n/a | n/a | n/a | 149 | 509 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.28 | 4.4 | n/a | n/a | n/a | n/a | n/a | n/a | 1.34 | 4.6 | n/a | n/a | n/a | n/a | |
| ASHRAE | ASHRAE | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 198 | 676 | n/a | n/a | n/a | n/a | n/a | n/a | 198 | 676 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.63 | 5.6 | n/a | n/a | n/a | n/a | n/a | n/a | 1.7 | 5.8 | n/a | n/a | n/a | n/a | |
| EN12900 | EN12900 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 96 | 328 | n/a | n/a | n/a | n/a | n/a | n/a | 96 | 328 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.15 | 3.9 | n/a | n/a | n/a | n/a | n/a | n/a | 1.22 | 4.2 | n/a | n/a | n/a | n/a | |
| ARI540 | ARI540 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 159 | 543 | n/a | n/a | n/a | n/a | n/a | n/a | 159 | 543 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.34 | 4.6 | n/a | n/a | n/a | n/a | n/a | n/a | 1.4 | 4.8 | n/a | n/a | n/a | n/a | |
| AHAM | AHAM | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 207 | 707 | n/a | n/a | n/a | n/a | n/a | n/a | 207 | 707 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.81 | 6.2 | n/a | n/a | n/a | n/a | n/a | n/a | 1.88 | 6.4 | n/a | n/a | n/a | n/a | |
| VSD_opt1 | VSD_opt1 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 191 | 652 | n/a | n/a | n/a | n/a | n/a | n/a | 191 | 652 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.76 | 6 | n/a | n/a | n/a | n/a | n/a | n/a | 1.83 | 6.2 | n/a | n/a | n/a | n/a | |
| VSD_opt2 | VSD_opt2 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 176 | 601 | n/a | n/a | n/a | n/a | n/a | n/a | 176 | 601 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.58 | 5.4 | n/a | n/a | n/a | n/a | n/a | n/a | 1.65 | 5.6 | n/a | n/a | n/a | n/a | |
| lowTemp | lowTemp | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
