Last Update
29.04.2025
Configuration-Code HXK12AT-W-200-50
Code number 16409500 16470500 CDO00177 CDO00219
Type designation HXK12AT HXK12AT HXK12AT HXK12AT
Product status 现有型号 变体型号 现有型号 现有型号
Data Sheet Download Download Download
Setup
Polynomial HXK12AT-W-200-50 HXK12AT-W-200-50-RC HXK12AT-W-25RC HXK12AT-W-26RC-REV2
Voltage range [V … V] 170 … 264 170 … 264 170 … 264 198 … 253
Frequency 50 50 50 60
High starting torque no no no no
Run capacitor no yes yes yes
Motor speed [rpm] 2900 2900 2900 3500
Variable speed no no no no
Refrigerant R600a R600a R600a R600a
Specials Tropical use recommended yes yes yes yes
Heavy duty pull down capability no no no no
Mobile operation possible no no no no
Hot gas defrost capability no no no no
Cooling Required cooling Max. ambient temp.: 43°C S (static cooling) Max. ambient temp.: 43°C S (static cooling) Max. ambient temp.: 43°C S (static cooling) Max. ambient temp.: 43°C S (static cooling)

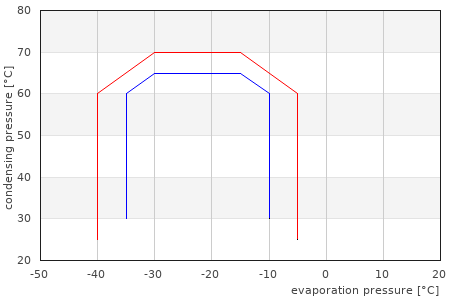

Operation limits diagram = short = continuous
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 150 | 512 n/a | n/a n/a | n/a n/a | n/a 151 | 516 n/a | n/a n/a | n/a n/a | n/a 151 | 516 n/a | n/a n/a | n/a n/a | n/a 178 | 608 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.3 | 4.4 n/a | n/a n/a | n/a n/a | n/a 1.35 | 4.6 n/a | n/a n/a | n/a n/a | n/a 1.29 | 4.4 n/a | n/a n/a | n/a n/a | n/a 1.36 | 4.6 n/a | n/a n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 198 | 676 n/a | n/a n/a | n/a n/a | n/a 200 | 683 n/a | n/a n/a | n/a n/a | n/a 200 | 683 n/a | n/a n/a | n/a n/a | n/a 236 | 806 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.67 | 5.7 n/a | n/a n/a | n/a n/a | n/a 1.73 | 5.9 n/a | n/a n/a | n/a n/a | n/a 1.66 | 5.7 n/a | n/a n/a | n/a n/a | n/a 1.75 | 6 n/a | n/a n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 114 | 389 n/a | n/a n/a | n/a n/a | n/a 115 | 393 n/a | n/a n/a | n/a n/a | n/a 115 | 393 n/a | n/a n/a | n/a n/a | n/a 134 | 458 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.2 | 4.1 n/a | n/a n/a | n/a n/a | n/a 1.25 | 4.3 n/a | n/a n/a | n/a n/a | n/a 1.2 | 4.1 n/a | n/a n/a | n/a n/a | n/a 1.25 | 4.3 n/a | n/a n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 160 | 546 n/a | n/a n/a | n/a n/a | n/a 161 | 550 n/a | n/a n/a | n/a n/a | n/a 161 | 550 n/a | n/a n/a | n/a n/a | n/a 189 | 645 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.4 | 4.8 n/a | n/a n/a | n/a n/a | n/a 1.45 | 5 n/a | n/a n/a | n/a n/a | n/a 1.4 | 4.8 n/a | n/a n/a | n/a n/a | n/a 1.46 | 5 n/a | n/a n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 208 | 710 n/a | n/a n/a | n/a n/a | n/a 210 | 717 n/a | n/a n/a | n/a n/a | n/a 210 | 717 n/a | n/a n/a | n/a n/a | n/a 245 | 837 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.93 | 6.6 n/a | n/a n/a | n/a n/a | n/a 2 | 6.8 n/a | n/a n/a | n/a n/a | n/a 1.93 | 6.6 n/a | n/a n/a | n/a n/a | n/a 2.01 | 6.9 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 190 | 649 n/a | n/a n/a | n/a n/a | n/a 192 | 656 n/a | n/a n/a | n/a n/a | n/a 192 | 656 n/a | n/a n/a | n/a n/a | n/a 224 | 765 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.86 | 6.4 n/a | n/a n/a | n/a n/a | n/a 1.93 | 6.6 n/a | n/a n/a | n/a n/a | n/a 1.85 | 6.3 n/a | n/a n/a | n/a n/a | n/a 1.94 | 6.6 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 177 | 604 n/a | n/a n/a | n/a n/a | n/a 179 | 611 n/a | n/a n/a | n/a n/a | n/a 179 | 611 n/a | n/a n/a | n/a n/a | n/a 209 | 714 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.68 | 5.7 n/a | n/a n/a | n/a n/a | n/a 1.74 | 5.9 n/a | n/a n/a | n/a n/a | n/a 1.68 | 5.7 n/a | n/a n/a | n/a n/a | n/a 1.75 | 6 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
