配置码 KLE77GFTX_25G2 |
|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 销售代码 | 106G5803 | 106G5804 | 106G5813 | ||||||||||||||
| 种类描述 | KLE7.7GFTX | KLE7.7GFTX | KLE7.7GFTX | ||||||||||||||
| 产品状态 | 现有型号 | 变体型号 | 变体型号 | ||||||||||||||
| 规格书 | 下载 | 下载 | 下载 | 安装 | |||||||||||||
| 多项的 | KLE77GFTX_25G2 | KLE77GFTX_26G2 | KLE77GFTX_25G2_513 | KLE77GFTX_26G2_513 | |||||||||||||
| 电压范围 | 187 … 254 | 198 … 253 | 187 … 254 | 198 … 253 | |||||||||||||
| 频率 | 50 | 60 | 50 | 60 | |||||||||||||
| 高启动力矩 | 是 | 是 | 是 | 是 | |||||||||||||
| 运行电容 | 否 | 否 | 否 | 否 | |||||||||||||
| 电机转速 | 2900 | 3500 | 2900 | 3500 | |||||||||||||
| 变频 | 否 | 否 | 否 | 否 | |||||||||||||
| 制冷剂 | R134a | R134a | R513A | R513A | |||||||||||||
| 特殊 | 建议热带地区使用 | 是 | 是 | 是 | 是 | ||||||||||||
| 重载下的拉温能力 | 是 | 是 | 是 | 是 | |||||||||||||
| 可移动操作 | 否 | 否 | 否 | 否 | |||||||||||||
| 热气除霜能力 | 是 | 是 | 是 | 是 | |||||||||||||
| 制冷量 | 冷却矩阵 | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | ||||||||||||

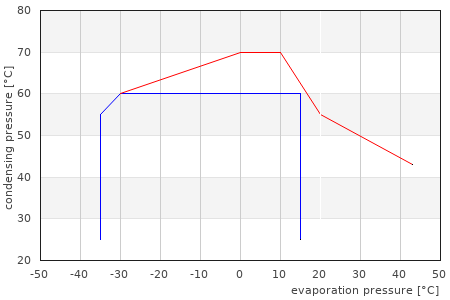

| 操作限制图 = 简短 = 持续的 |
|
|
|
|
|||||||||||||
| CECOMAF | CECOMAF | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 163 | 557 | 352 | 1202 | 657 | 2244 | n/a | n/a | 195 | 666 | 421 | 1438 | 785 | 2681 | n/a | n/a | 175 | 598 | 365 | 1246 | 665 | 2271 | n/a | n/a | 210 | 717 | 436 | 1489 | 795 | 2715 | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.02 | 3.5 | 1.51 | 5.2 | 2.07 | 7.1 | n/a | n/a | 1.07 | 3.7 | 1.55 | 5.3 | 2.12 | 7.2 | n/a | n/a | 1 | 3.4 | 1.47 | 5 | 2 | 6.8 | n/a | n/a | 1.06 | 3.6 | 1.5 | 5.1 | 2.04 | 7 | |
| ASHRAE | ASHRAE | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 221 | 755 | 452 | 1544 | 791 | 2701 | n/a | n/a | 265 | 905 | 540 | 1844 | 945 | 3227 | n/a | n/a | 243 | 830 | 474 | 1619 | 812 | 2773 | n/a | n/a | 292 | 997 | 566 | 1933 | 971 | 3316 | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.32 | 4.5 | 1.81 | 6.2 | 2.41 | 8.2 | n/a | n/a | 1.39 | 4.7 | 1.85 | 6.3 | 2.46 | 8.4 | n/a | n/a | 1.34 | 4.6 | 1.79 | 6.1 | 2.36 | 8.1 | n/a | n/a | 1.4 | 4.8 | 1.83 | 6.2 | 2.41 | 8.2 | |
| EN12900 | EN12900 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 115 | 393 | 395 | 1349 | 679 | 2319 | n/a | n/a | 136 | 464 | 472 | 1612 | 810 | 2766 | n/a | n/a | 128 | 437 | 411 | 1404 | 683 | 2332 | n/a | n/a | 151 | 516 | 490 | 1673 | 816 | 2787 | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.02 | 3.5 | 1.83 | 6.2 | 2.26 | 7.7 | n/a | n/a | 1.12 | 3.8 | 1.87 | 6.4 | 2.31 | 7.9 | n/a | n/a | 1.04 | 3.6 | 1.78 | 6.1 | 2.17 | 7.4 | n/a | n/a | 1.13 | 3.9 | 1.82 | 6.2 | 2.22 | 7.6 | |
| ARI540 | ARI540 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 182 | 622 | 429 | 1465 | 681 | 2326 | n/a | n/a | 218 | 744 | 512 | 1748 | 814 | 2780 | n/a | n/a | 190 | 649 | 439 | 1499 | 674 | 2302 | n/a | n/a | 227 | 775 | 524 | 1789 | 806 | 2752 | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.11 | 3.8 | 1.79 | 6.1 | 2.07 | 7.1 | n/a | n/a | 1.16 | 4 | 1.83 | 6.2 | 2.12 | 7.2 | n/a | n/a | 1.07 | 3.7 | 1.73 | 5.9 | 1.96 | 6.7 | n/a | n/a | 1.11 | 3.8 | 1.77 | 6 | 2 | 6.8 | |
| AHAM | AHAM | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 241 | 823 | n/a | n/a | n/a | n/a | n/a | n/a | 287 | 980 | n/a | n/a | n/a | n/a | n/a | n/a | 264 | 902 | n/a | n/a | n/a | n/a | n/a | n/a | 315 | 1076 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.53 | 5.2 | n/a | n/a | n/a | n/a | n/a | n/a | 1.59 | 5.4 | n/a | n/a | n/a | n/a | n/a | n/a | 1.55 | 5.3 | n/a | n/a | n/a | n/a | n/a | n/a | 1.61 | 5.5 | n/a | n/a | n/a | n/a | |
| VSD_opt1 | VSD_opt1 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 221 | 755 | n/a | n/a | n/a | n/a | n/a | n/a | 264 | 902 | n/a | n/a | n/a | n/a | n/a | n/a | 242 | 826 | n/a | n/a | n/a | n/a | n/a | n/a | 289 | 987 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.51 | 5.2 | n/a | n/a | n/a | n/a | n/a | n/a | 1.59 | 5.4 | n/a | n/a | n/a | n/a | n/a | n/a | 1.53 | 5.2 | n/a | n/a | n/a | n/a | n/a | n/a | 1.61 | 5.5 | n/a | n/a | n/a | n/a | |
| VSD_opt2 | VSD_opt2 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 201 | 686 | n/a | n/a | n/a | n/a | n/a | n/a | 240 | 820 | n/a | n/a | n/a | n/a | n/a | n/a | 219 | 748 | n/a | n/a | n/a | n/a | n/a | n/a | 262 | 895 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.32 | 4.5 | n/a | n/a | n/a | n/a | n/a | n/a | 1.38 | 4.7 | n/a | n/a | n/a | n/a | n/a | n/a | 1.33 | 4.5 | n/a | n/a | n/a | n/a | n/a | n/a | 1.39 | 4.7 | n/a | n/a | n/a | n/a | |
| lowTemp | lowTemp | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
