最近更新
27.05.2025
配置码 KLF56CNT_25G1
销售代码 106H2602 106H2606 106H2612
种类描述 KLF5.6CNT KLF5.6CNT KLF5.6CNT
产品状态 现有型号 变体型号 变体型号
规格书 下载 下载 下载
安装
多项的 KLF56CNT_25G1 KLF56CNT_25RCG1 KLF56CNT_26G1 KLF56CNT_26RCG1
电压范围 187 … 254 187 … 254 198 … 253 198 … 253
频率 50 50 60 60
高启动力矩 是 否 是 否
运行电容 否 是 否 是
电机转速 2900 2900 3500 3500
变频 否 否 否 否
制冷剂 R290 R290 R290 R290
特殊 建议热带地区使用 是 是 否 否
重载下的拉温能力 是 是 否 否
可移动操作 否 否 否 否
热气除霜能力 是 是 是 是
制冷量 冷却矩阵 Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F2 (fan 3m/s)

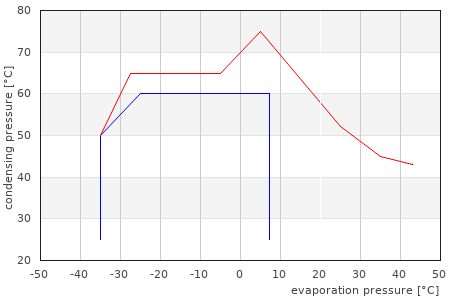

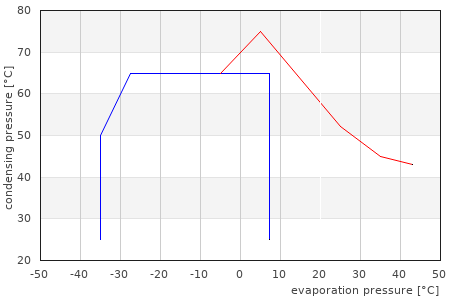

操作限制图 = 简短 = 持续的
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 202 | 690 388 | 1325 n/a | n/a n/a | n/a 205 | 700 396 | 1352 n/a | n/a n/a | n/a 249 | 850 478 | 1632 n/a | n/a n/a | n/a 254 | 867 488 | 1667 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.19 | 4.1 1.71 | 5.8 n/a | n/a n/a | n/a 1.24 | 4.2 1.79 | 6.1 n/a | n/a n/a | n/a 1.23 | 4.2 1.72 | 5.9 n/a | n/a n/a | n/a 1.31 | 4.5 1.83 | 6.2 n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 271 | 925 490 | 1673 n/a | n/a n/a | n/a 276 | 943 499 | 1704 n/a | n/a n/a | n/a 332 | 1134 604 | 2063 n/a | n/a n/a | n/a 338 | 1154 616 | 2104 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.54 | 5.3 2.06 | 7 n/a | n/a n/a | n/a 1.61 | 5.5 2.16 | 7.4 n/a | n/a n/a | n/a 1.58 | 5.4 2.07 | 7.1 n/a | n/a n/a | n/a 1.68 | 5.7 2.2 | 7.5 n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 148 | 505 431 | 1472 n/a | n/a n/a | n/a 150 | 512 439 | 1499 n/a | n/a n/a | n/a 189 | 645 538 | 1837 n/a | n/a n/a | n/a 193 | 659 549 | 1875 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.2 | 4.1 2.08 | 7.1 n/a | n/a n/a | n/a 1.24 | 4.2 2.17 | 7.4 n/a | n/a n/a | n/a 1.21 | 4.1 2.08 | 7.1 n/a | n/a n/a | n/a 1.28 | 4.4 2.21 | 7.5 n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 222 | 758 459 | 1567 n/a | n/a n/a | n/a 226 | 772 468 | 1598 n/a | n/a n/a | n/a 271 | 925 569 | 1943 n/a | n/a n/a | n/a 276 | 943 581 | 1984 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.29 | 4.4 2.04 | 7 n/a | n/a n/a | n/a 1.35 | 4.6 2.13 | 7.3 n/a | n/a n/a | n/a 1.3 | 4.4 2.04 | 7 n/a | n/a n/a | n/a 1.38 | 4.7 2.16 | 7.4 n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 286 | 977 n/a | n/a n/a | n/a n/a | n/a 292 | 997 n/a | n/a n/a | n/a n/a | n/a 365 | 1246 n/a | n/a n/a | n/a n/a | n/a 373 | 1274 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.8 | 6.1 n/a | n/a n/a | n/a n/a | n/a 1.87 | 6.4 n/a | n/a n/a | n/a n/a | n/a 1.82 | 6.2 n/a | n/a n/a | n/a n/a | n/a 1.93 | 6.6 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 251 | 857 n/a | n/a n/a | n/a n/a | n/a 256 | 874 n/a | n/a n/a | n/a n/a | n/a 337 | 1151 n/a | n/a n/a | n/a n/a | n/a 344 | 1175 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.77 | 6 n/a | n/a n/a | n/a n/a | n/a 1.83 | 6.2 n/a | n/a n/a | n/a n/a | n/a 1.81 | 6.2 n/a | n/a n/a | n/a n/a | n/a 1.92 | 6.6 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 245 | 837 n/a | n/a n/a | n/a n/a | n/a 250 | 854 n/a | n/a n/a | n/a n/a | n/a 310 | 1059 n/a | n/a n/a | n/a n/a | n/a 316 | 1079 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.57 | 5.4 n/a | n/a n/a | n/a n/a | n/a 1.63 | 5.6 n/a | n/a n/a | n/a n/a | n/a 1.58 | 5.4 n/a | n/a n/a | n/a n/a | n/a 1.68 | 5.7 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
