配置码 KLF77CNT_25G2 |
|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 销售代码 | 106H2808 | 106H2818 | 106H2828 | ||||||||||||||
| 种类描述 | KLF7.7CNT | KLF7.7CNT | KLF7.7CNT | ||||||||||||||
| 产品状态 | 现有型号 | 变体型号 | 变体型号 | ||||||||||||||
| 规格书 | 下载 | 下载 | 下载 | 安装 | |||||||||||||
| 多项的 | KLF77CNT_25G2 | KLF77CNT_25RCG2 | KLF77CNT_26G2 | KLF77CNT_26RCG2 | |||||||||||||
| 电压范围 | 187 … 254 | 187 … 254 | 198 … 253 | 198 … 253 | |||||||||||||
| 频率 | 50 | 50 | 60 | 60 | |||||||||||||
| 高启动力矩 | 是 | 否 | 是 | 否 | |||||||||||||
| 运行电容 | 否 | 是 | 否 | 是 | |||||||||||||
| 电机转速 | 2900 | 2900 | 3500 | 3500 | |||||||||||||
| 变频 | 否 | 否 | 否 | 否 | |||||||||||||
| 制冷剂 | R290 | R290 | R290 | R290 | |||||||||||||
| 特殊 | 建议热带地区使用 | 是 | 是 | 是 | 是 | ||||||||||||
| 重载下的拉温能力 | 是 | 是 | 是 | 是 | |||||||||||||
| 可移动操作 | 否 | 否 | 否 | 否 | |||||||||||||
| 热气除霜能力 | 是 | 是 | 是 | 是 | |||||||||||||
| 制冷量 | 冷却矩阵 | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | ||||||||||||

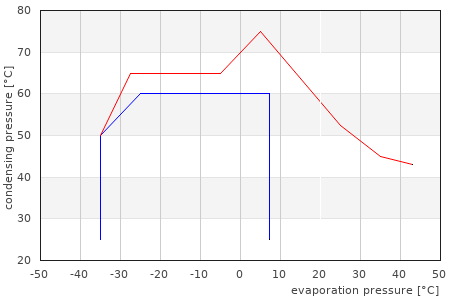

| 操作限制图 = 简短 = 持续的 |
|
|
|
|
|||||||||||||
| CECOMAF | CECOMAF | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 296 | 1011 | 560 | 1912 | n/a | n/a | n/a | n/a | 300 | 1025 | 564 | 1926 | n/a | n/a | n/a | n/a | 365 | 1246 | 667 | 2278 | n/a | n/a | n/a | n/a | 369 | 1260 | 675 | 2305 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.2 | 4.1 | 1.68 | 5.7 | n/a | n/a | n/a | n/a | 1.25 | 4.3 | 1.78 | 6.1 | n/a | n/a | n/a | n/a | 1.27 | 4.3 | 1.73 | 5.9 | n/a | n/a | n/a | n/a | 1.34 | 4.6 | 1.84 | 6.3 | n/a | n/a | |
| ASHRAE | ASHRAE | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 397 | 1356 | 705 | 2408 | n/a | n/a | n/a | n/a | 401 | 1369 | 709 | 2421 | n/a | n/a | n/a | n/a | 486 | 1660 | 836 | 2855 | n/a | n/a | n/a | n/a | 491 | 1677 | 846 | 2889 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.56 | 5.3 | 2.02 | 6.9 | n/a | n/a | n/a | n/a | 1.62 | 5.5 | 2.14 | 7.3 | n/a | n/a | n/a | n/a | 1.63 | 5.6 | 2.07 | 7.1 | n/a | n/a | n/a | n/a | 1.73 | 5.9 | 2.21 | 7.5 | n/a | n/a | |
| EN12900 | EN12900 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 228 | 779 | 616 | 2104 | n/a | n/a | n/a | n/a | 228 | 779 | 621 | 2121 | n/a | n/a | n/a | n/a | 270 | 922 | 734 | 2507 | n/a | n/a | n/a | n/a | 273 | 932 | 743 | 2537 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.24 | 4.2 | 2.07 | 7.1 | n/a | n/a | n/a | n/a | 1.33 | 4.5 | 2.17 | 7.4 | n/a | n/a | n/a | n/a | 1.26 | 4.3 | 2.1 | 7.2 | n/a | n/a | n/a | n/a | 1.33 | 4.5 | 2.23 | 7.6 | n/a | n/a | |
| ARI540 | ARI540 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 321 | 1096 | 657 | 2244 | n/a | n/a | n/a | n/a | 324 | 1106 | 661 | 2257 | n/a | n/a | n/a | n/a | 391 | 1335 | 779 | 2660 | n/a | n/a | n/a | n/a | 395 | 1349 | 789 | 2694 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.3 | 4.4 | 2.02 | 6.9 | n/a | n/a | n/a | n/a | 1.36 | 4.6 | 2.13 | 7.3 | n/a | n/a | n/a | n/a | 1.35 | 4.6 | 2.05 | 7 | n/a | n/a | n/a | n/a | 1.42 | 4.8 | 2.18 | 7.4 | n/a | n/a | |
| AHAM | AHAM | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 419 | 1431 | n/a | n/a | n/a | n/a | n/a | n/a | 424 | 1448 | n/a | n/a | n/a | n/a | n/a | n/a | 511 | 1745 | n/a | n/a | n/a | n/a | n/a | n/a | 517 | 1766 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.81 | 6.2 | n/a | n/a | n/a | n/a | n/a | n/a | 1.88 | 6.4 | n/a | n/a | n/a | n/a | n/a | n/a | 1.85 | 6.3 | n/a | n/a | n/a | n/a | n/a | n/a | 1.96 | 6.7 | n/a | n/a | n/a | n/a | |
| VSD_opt1 | VSD_opt1 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 388 | 1325 | n/a | n/a | n/a | n/a | n/a | n/a | 389 | 1328 | n/a | n/a | n/a | n/a | n/a | n/a | 473 | 1615 | n/a | n/a | n/a | n/a | n/a | n/a | 478 | 1632 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.82 | 6.2 | n/a | n/a | n/a | n/a | n/a | n/a | 1.91 | 6.5 | n/a | n/a | n/a | n/a | n/a | n/a | 1.86 | 6.4 | n/a | n/a | n/a | n/a | n/a | n/a | 1.97 | 6.7 | n/a | n/a | n/a | n/a | |
| VSD_opt2 | VSD_opt2 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 358 | 1223 | n/a | n/a | n/a | n/a | n/a | n/a | 362 | 1236 | n/a | n/a | n/a | n/a | n/a | n/a | 436 | 1489 | n/a | n/a | n/a | n/a | n/a | n/a | 441 | 1506 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.57 | 5.4 | n/a | n/a | n/a | n/a | n/a | n/a | 1.64 | 5.6 | n/a | n/a | n/a | n/a | n/a | n/a | 1.61 | 5.5 | n/a | n/a | n/a | n/a | n/a | n/a | 1.71 | 5.8 | n/a | n/a | n/a | n/a | |
| lowTemp | lowTemp | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
