Last Update
29.04.2025
Configuration-Code NF7CLX16
Code number 105F1714 105F1721 105F1725 105F1728
Type designation NF7CLX NF7CLX NF7CLX NF7CLX
Product status 变体型号 现有型号 变体型号 变体型号
Data Sheet Download Download Download Download
Setup
Polynomial NF7CLX16
Voltage range [V … V] 95 … 135
Frequency 60
High starting torque yes
Run capacitor no
Motor speed [rpm] 3500
Variable speed no
Refrigerant R404A
Specials Tropical use recommended yes
Heavy duty pull down capability yes
Mobile operation possible no
Hot gas defrost capability no
Cooling Required cooling Max. ambient temp.: 43°C F2 (fan 3m/s)

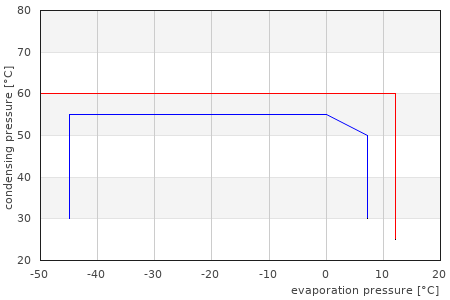

Operation limits diagram = short = continuous
CECOMAF CECOMAF ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 306 | 1045 617 | 2107 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.87 | 3 1.24 | 4.2 n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 451 | 1540 825 | 2817 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.23 | 4.2 1.56 | 5.3 n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 248 | 847 719 | 2455 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.93 | 3.2 1.52 | 5.2 n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 339 | 1158 746 | 2548 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.93 | 3.2 1.45 | 5 n/a | n/a
AHAM AHAM ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 513 | 1752 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.46 | 5 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 471 | 1608 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.43 | 4.9 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 421 | 1438 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.24 | 4.2 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a
