Last Update
29.04.2025
Configuration-Code NF7FX16
Code number 105G5723 105G5724 105G5744
Type designation NF7FX NF7FX NF7FX
Product status 现有型号 变体型号 变体型号
Data Sheet Download Download Download
Setup
Polynomial NF7FX16
Voltage range [V … V] 95 … 135
Frequency 60
High starting torque yes
Run capacitor no
Motor speed [rpm] 3500
Variable speed no
Refrigerant R134a
Specials Tropical use recommended yes
Heavy duty pull down capability yes
Mobile operation possible no
Hot gas defrost capability no
Cooling Required cooling Max. ambient temp.: 43°C F1 (fan 1.5m/s)

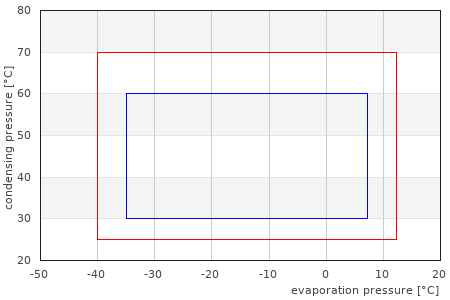

Operation limits diagram = short = continuous
CECOMAF CECOMAF ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 186 | 635 392 | 1339 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.9 | 3.1 1.34 | 4.6 n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 252 | 861 503 | 1718 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.17 | 4 1.62 | 5.5 n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 123 | 420 436 | 1489 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.9 | 3.1 1.58 | 5.4 n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 204 | 697 473 | 1615 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.98 | 3.3 1.58 | 5.4 n/a | n/a
AHAM AHAM ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 270 | 922 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.33 | 4.5 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 249 | 850 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.29 | 4.4 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 226 | 772 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.16 | 4 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a
