最近更新
27.05.2025
配置码 NF7MLX26
销售代码 105F3720 105F3721 105F3727
种类描述 NF7MLX NF7MLX NF7MLX
产品状态 现有型号 变体型号 变体型号
规格书 下载 下载 下载
安装
多项的 NF7MLX26 NF7MLX25 NF7MLX26_452 NF7MLX25_452
电压范围 187 … 254 187 … 254 187 … 254 187 … 254
频率 60 50 60 50
高启动力矩 是 是 是 是
运行电容 否 否 否 否
电机转速 3500 2900 3500 2900
变频 否 否 否 否
制冷剂 R404A R404A R452A R452A
特殊 建议热带地区使用 是 是 是 是
重载下的拉温能力 是 是 是 是
可移动操作 否 否 否 否
热气除霜能力 否 否 否 否
制冷量 冷却矩阵 Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F2 (fan 3m/s)

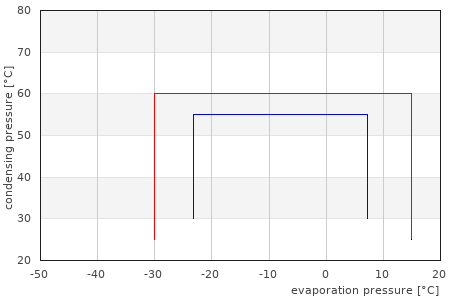

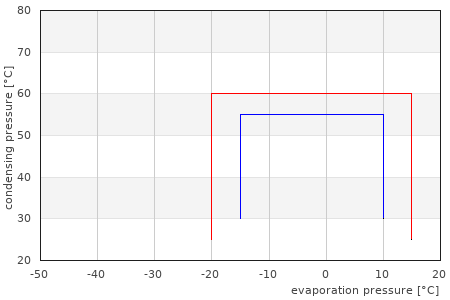

操作限制图 = 简短 = 持续的
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 283 | 966 613 | 2093 n/a | n/a n/a | n/a n/a | n/a 507 | 1731 n/a | n/a n/a | n/a 261 | 891 581 | 1984 n/a | n/a n/a | n/a n/a | n/a 480 | 1639 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.8 | 2.7 1.24 | 4.2 n/a | n/a n/a | n/a n/a | n/a 1.16 | 4 n/a | n/a n/a | n/a 0.8 | 2.7 1.24 | 4.2 n/a | n/a n/a | n/a n/a | n/a 1.17 | 4 n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 425 | 1451 825 | 2817 n/a | n/a n/a | n/a n/a | n/a 682 | 2329 n/a | n/a n/a | n/a 389 | 1328 780 | 2664 n/a | n/a n/a | n/a n/a | n/a 646 | 2206 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.16 | 4 1.56 | 5.3 n/a | n/a n/a | n/a n/a | n/a 1.49 | 5.1 n/a | n/a n/a | n/a 1.14 | 3.9 1.56 | 5.3 n/a | n/a n/a | n/a n/a | n/a 1.49 | 5.1 n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 223 | 762 724 | 2472 n/a | n/a n/a | n/a n/a | n/a 598 | 2042 n/a | n/a n/a | n/a 200 | 683 683 | 2332 n/a | n/a n/a | n/a n/a | n/a 565 | 1929 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.84 | 2.9 1.53 | 5.2 n/a | n/a n/a | n/a n/a | n/a 1.47 | 5 n/a | n/a n/a | n/a 0.82 | 2.8 1.53 | 5.2 n/a | n/a n/a | n/a n/a | n/a 1.48 | 5.1 n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 322 | 1100 750 | 2561 n/a | n/a n/a | n/a n/a | n/a 620 | 2117 n/a | n/a n/a | n/a 299 | 1021 712 | 2431 n/a | n/a n/a | n/a n/a | n/a 589 | 2011 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.89 | 3 1.45 | 5 n/a | n/a n/a | n/a n/a | n/a 1.41 | 4.8 n/a | n/a n/a | n/a 0.89 | 3 1.46 | 5 n/a | n/a n/a | n/a n/a | n/a 1.42 | 4.8 n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 500 | 1708 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 460 | 1571 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.42 | 4.8 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 1.41 | 4.8 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 471 | 1608 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 434 | 1482 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.43 | 4.9 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 1.42 | 4.8 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 405 | 1383 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 373 | 1274 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.19 | 4.1 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 1.18 | 4 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
