Last Update
29.04.2025
Configuration-Code NL84MF25
Code number 105G7802
Type designation NL8.4MF
Product status 现有型号
Data Sheet Download
Setup
Polynomial NL84MF25 NL84MF26 NL84MF25_513 NL84MF26_513
Voltage range [V … V] 187 … 254 187 … 254 187 … 254 187 … 253
Frequency 50 60 50 60
High starting torque yes yes yes yes
Run capacitor no no no no
Motor speed [rpm] 2900 3500 2900 3500
Variable speed no no no no
Refrigerant R134a R134a R513A R513A
Specials Tropical use recommended yes yes yes yes
Heavy duty pull down capability yes yes yes yes
Mobile operation possible no no no no
Hot gas defrost capability no no no no
Cooling Required cooling Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F1 (fan 1.5m/s) Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F1 (fan 1.5m/s)

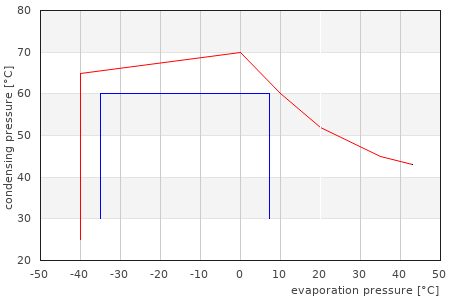

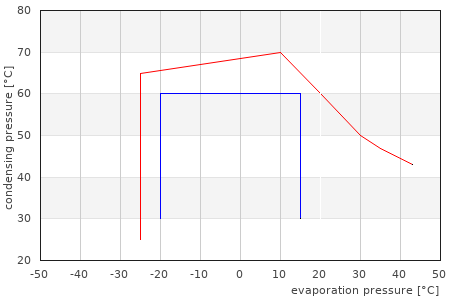

Operation limits diagram = short = continuous
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a 353 | 1205 679 | 2319 n/a | n/a 179 | 611 420 | 1434 n/a | n/a n/a | n/a n/a | n/a 367 | 1253 688 | 2350 n/a | n/a 194 | 663 436 | 1489 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a 1.36 | 4.6 1.94 | 6.6 n/a | n/a 0.95 | 3.2 1.35 | 4.6 n/a | n/a n/a | n/a n/a | n/a 1.33 | 4.5 1.88 | 6.4 n/a | n/a 0.94 | 3.2 1.31 | 4.5 n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a 457 | 1561 823 | 2811 n/a | n/a 248 | 847 547 | 1868 n/a | n/a n/a | n/a n/a | n/a 480 | 1639 846 | 2889 n/a | n/a 276 | 943 574 | 1960 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a 1.64 | 5.6 2.27 | 7.8 n/a | n/a 1.23 | 4.2 1.62 | 5.5 n/a | n/a n/a | n/a n/a | n/a 1.63 | 5.6 2.24 | 7.6 n/a | n/a 1.25 | 4.3 1.59 | 5.4 n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a 400 | 1366 702 | 2397 n/a | n/a 129 | 441 484 | 1653 n/a | n/a n/a | n/a n/a | n/a 419 | 1431 713 | 2435 n/a | n/a 146 | 499 506 | 1728 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a 1.61 | 5.5 2.09 | 7.1 n/a | n/a 0.98 | 3.3 1.65 | 5.6 n/a | n/a n/a | n/a n/a | n/a 1.6 | 5.5 2.03 | 6.9 n/a | n/a 1 | 3.4 1.61 | 5.5 n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a 434 | 1482 706 | 2411 n/a | n/a 211 | 721 525 | 1793 n/a | n/a n/a | n/a n/a | n/a 448 | 1530 708 | 2418 n/a | n/a 224 | 765 542 | 1851 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a 1.61 | 5.5 1.95 | 6.7 n/a | n/a 1.04 | 3.6 1.62 | 5.5 n/a | n/a n/a | n/a n/a | n/a 1.57 | 5.4 1.87 | 6.4 n/a | n/a 1.01 | 3.4 1.56 | 5.3 n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 289 | 987 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 319 | 1089 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 1.43 | 4.9 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 1.45 | 5 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 266 | 908 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 292 | 997 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 1.38 | 4.7 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 1.4 | 4.8 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 240 | 820 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 263 | 898 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 1.25 | 4.3 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 1.26 | 4.3 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
