Last Update
29.04.2025
Configuration-Code NL9FT25
Code number 105G6059 105G6828
Type designation NL9FT NL9FT
Product status 变体型号 现有型号
Data Sheet Download Download
Setup
Polynomial NL9FT25 NL9FT26
Voltage range [V … V] 187 … 254 198 … 254
Frequency 50 60
High starting torque yes yes
Run capacitor no no
Motor speed [rpm] 2900 3500
Variable speed no no
Refrigerant R134a R134a
Specials Tropical use recommended yes yes
Heavy duty pull down capability no no
Mobile operation possible no no
Hot gas defrost capability no no
Cooling Required cooling Max. ambient temp.: 43°C F1 (fan 1.5m/s) Max. ambient temp.: 43°C F1 (fan 1.5m/s)

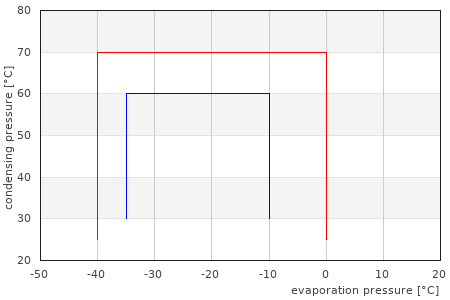

Operation limits diagram = short = continuous
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 162 | 553 n/a | n/a n/a | n/a n/a | n/a 197 | 673 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.95 | 3.2 n/a | n/a n/a | n/a n/a | n/a 1.07 | 3.7 n/a | n/a n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 219 | 748 n/a | n/a n/a | n/a n/a | n/a 270 | 922 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.23 | 4.2 n/a | n/a n/a | n/a n/a | n/a 1.38 | 4.7 n/a | n/a n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 115 | 393 n/a | n/a n/a | n/a n/a | n/a 122 | 417 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.91 | 3.1 n/a | n/a n/a | n/a n/a | n/a 0.96 | 3.3 n/a | n/a n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 180 | 615 n/a | n/a n/a | n/a n/a | n/a 221 | 755 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.02 | 3.5 n/a | n/a n/a | n/a n/a | n/a 1.14 | 3.9 n/a | n/a n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 246 | 840 n/a | n/a n/a | n/a n/a | n/a 300 | 1025 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.43 | 4.9 n/a | n/a n/a | n/a n/a | n/a 1.59 | 5.4 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 223 | 762 n/a | n/a n/a | n/a n/a | n/a 271 | 925 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.38 | 4.7 n/a | n/a n/a | n/a n/a | n/a 1.53 | 5.2 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 205 | 700 n/a | n/a n/a | n/a n/a | n/a 249 | 850 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.24 | 4.2 n/a | n/a n/a | n/a n/a | n/a 1.38 | 4.7 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
