配置码 NLE10CN-D-26-REV3 |
|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 销售代码 | 105H6179 | ||||||||||||||||
| 种类描述 | NLE10CNT | ||||||||||||||||
| 产品状态 | 现有型号 | ||||||||||||||||
| 规格书 | 下载 | 安装 | |||||||||||||||
| 多项的 | NLE10CN-D-26-REV3 | NLE10CN-D-26RC-REV3 | NLE10CN-D-25-REV3 | NLE10CN-D-25RC-REV3 | |||||||||||||
| 电压范围 | 187 … 253 | 187 … 253 | 187 … 242 | 187 … 242 | |||||||||||||
| 频率 | 60 | 60 | 50 | 50 | |||||||||||||
| 高启动力矩 | 是 | 否 | 是 | 否 | |||||||||||||
| 运行电容 | 否 | 是 | 否 | 是 | |||||||||||||
| 电机转速 | 3500 | 3500 | 2900 | 2900 | |||||||||||||
| 变频 | 否 | 否 | 否 | 否 | |||||||||||||
| 制冷剂 | R290 | R290 | R290 | R290 | |||||||||||||
| 特殊 | 建议热带地区使用 | 是 | 是 | 是 | 是 | ||||||||||||
| 重载下的拉温能力 | 是 | 是 | 是 | 是 | |||||||||||||
| 可移动操作 | 否 | 否 | 否 | 否 | |||||||||||||
| 热气除霜能力 | 是 | 是 | 是 | 是 | |||||||||||||
| 制冷量 | 冷却矩阵 | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | ||||||||||||

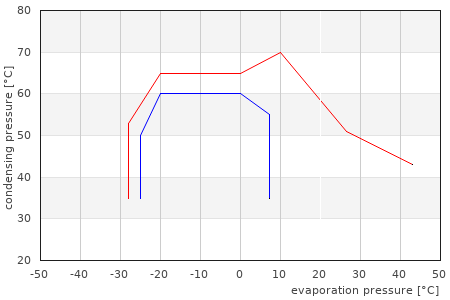

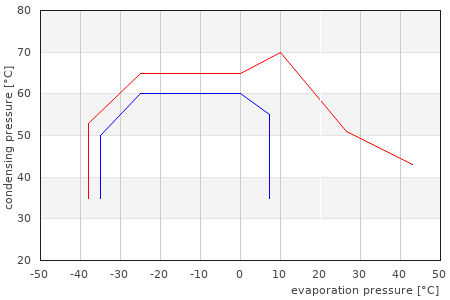

| 操作限制图 = 简短 = 持续的 |
|
|
|
|
|||||||||||||
| CECOMAF | CECOMAF | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 452 | 1544 | 860 | 2937 | n/a | n/a | n/a | n/a | 459 | 1567 | 873 | 2981 | n/a | n/a | n/a | n/a | 380 | 1298 | 724 | 2472 | n/a | n/a | n/a | n/a | 386 | 1318 | 736 | 2513 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.27 | 4.3 | 1.76 | 6 | n/a | n/a | n/a | n/a | 1.33 | 4.5 | 1.85 | 6.3 | n/a | n/a | n/a | n/a | 1.16 | 4 | 1.61 | 5.5 | n/a | n/a | n/a | n/a | 1.19 | 4.1 | 1.66 | 5.7 | n/a | n/a | |
| ASHRAE | ASHRAE | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 608 | 2076 | 1079 | 3685 | n/a | n/a | n/a | n/a | 617 | 2107 | 1095 | 3739 | n/a | n/a | n/a | n/a | 511 | 1745 | 908 | 3101 | n/a | n/a | n/a | n/a | 520 | 1776 | 923 | 3152 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.64 | 5.6 | 2.1 | 7.2 | n/a | n/a | n/a | n/a | 1.72 | 5.9 | 2.21 | 7.5 | n/a | n/a | n/a | n/a | 1.49 | 5.1 | 1.92 | 6.6 | n/a | n/a | n/a | n/a | 1.54 | 5.3 | 1.99 | 6.8 | n/a | n/a | |
| EN12900 | EN12900 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 347 | 1185 | 948 | 3237 | n/a | n/a | n/a | n/a | 352 | 1202 | 963 | 3289 | n/a | n/a | n/a | n/a | 292 | 997 | 797 | 2722 | n/a | n/a | n/a | n/a | 296 | 1011 | 808 | 2759 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.29 | 4.4 | 2.12 | 7.2 | n/a | n/a | n/a | n/a | 1.36 | 4.6 | 2.23 | 7.6 | n/a | n/a | n/a | n/a | 1.19 | 4.1 | 1.96 | 6.7 | n/a | n/a | n/a | n/a | 1.23 | 4.2 | 2.04 | 7 | n/a | n/a | |
| ARI540 | ARI540 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 495 | 1690 | 1005 | 3432 | n/a | n/a | n/a | n/a | 502 | 1714 | 1020 | 3483 | n/a | n/a | n/a | n/a | 416 | 1421 | 845 | 2886 | n/a | n/a | n/a | n/a | 422 | 1441 | 859 | 2933 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.36 | 4.6 | 2.06 | 7 | n/a | n/a | n/a | n/a | 1.43 | 4.9 | 2.17 | 7.4 | n/a | n/a | n/a | n/a | 1.24 | 4.2 | 1.89 | 6.5 | n/a | n/a | n/a | n/a | 1.29 | 4.4 | 1.97 | 6.7 | n/a | n/a | |
| AHAM | AHAM | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 655 | 2237 | n/a | n/a | n/a | n/a | n/a | n/a | 665 | 2271 | n/a | n/a | n/a | n/a | n/a | n/a | 549 | 1875 | n/a | n/a | n/a | n/a | n/a | n/a | 556 | 1899 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.89 | 6.5 | n/a | n/a | n/a | n/a | n/a | n/a | 2 | 6.8 | n/a | n/a | n/a | n/a | n/a | n/a | 1.75 | 6 | n/a | n/a | n/a | n/a | n/a | n/a | 1.82 | 6.2 | n/a | n/a | n/a | n/a | |
| VSD_opt1 | VSD_opt1 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 610 | 2083 | n/a | n/a | n/a | n/a | n/a | n/a | 620 | 2117 | n/a | n/a | n/a | n/a | n/a | n/a | 511 | 1745 | n/a | n/a | n/a | n/a | n/a | n/a | 516 | 1762 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.89 | 6.5 | n/a | n/a | n/a | n/a | n/a | n/a | 1.99 | 6.8 | n/a | n/a | n/a | n/a | n/a | n/a | 1.75 | 6 | n/a | n/a | n/a | n/a | n/a | n/a | 1.83 | 6.2 | n/a | n/a | n/a | n/a | |
| VSD_opt2 | VSD_opt2 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 557 | 1902 | n/a | n/a | n/a | n/a | n/a | n/a | 566 | 1933 | n/a | n/a | n/a | n/a | n/a | n/a | 467 | 1595 | n/a | n/a | n/a | n/a | n/a | n/a | 473 | 1615 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.65 | 5.6 | n/a | n/a | n/a | n/a | n/a | n/a | 1.74 | 5.9 | n/a | n/a | n/a | n/a | n/a | n/a | 1.52 | 5.2 | n/a | n/a | n/a | n/a | n/a | n/a | 1.58 | 5.4 | n/a | n/a | n/a | n/a | |
| lowTemp | lowTemp | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
