最近更新
27.05.2025
配置码 NLE10MF2_25rev3
销售代码 105G6187 105G7005
种类描述 NLE10MF.2 NLE10MF.2
产品状态 现有型号 变体型号
规格书 下载 下载
安装
多项的 NLE10MF2_25rev3 NLE10MF2_25RCrev3 NLE10MF2_513_25
电压范围 198 … 254 198 … 254 198 … 254
频率 50 50 50
高启动力矩 是 否 是
运行电容 否 是 否
电机转速 2900 2900 2900
变频 否 否 否
制冷剂 R134a R134a R513A
特殊 建议热带地区使用 否 否 否
重载下的拉温能力 是 是 是
可移动操作 否 否 否
热气除霜能力 是 是 是
制冷量 冷却矩阵 Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F2 (fan 3m/s)

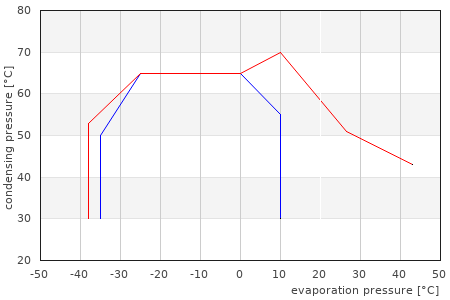

操作限制图 = 简短 = 持续的
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 210 | 717 471 | 1608 n/a | n/a n/a | n/a 210 | 717 471 | 1608 n/a | n/a n/a | n/a 228 | 779 490 | 1673 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.12 | 3.8 1.62 | 5.5 n/a | n/a n/a | n/a 1.18 | 4 1.71 | 5.8 n/a | n/a n/a | n/a 1.12 | 3.8 1.58 | 5.4 n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 289 | 987 609 | 2080 n/a | n/a n/a | n/a 289 | 987 608 | 2076 n/a | n/a n/a | n/a 322 | 1100 640 | 2186 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.45 | 5 1.94 | 6.6 n/a | n/a n/a | n/a 1.53 | 5.2 2.05 | 7 n/a | n/a n/a | n/a 1.49 | 5.1 1.92 | 6.6 n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 151 | 516 536 | 1830 n/a | n/a n/a | n/a 151 | 516 535 | 1827 n/a | n/a n/a | n/a 171 | 584 561 | 1916 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.06 | 3.6 1.99 | 6.8 n/a | n/a n/a | n/a 1.12 | 3.8 2.09 | 7.1 n/a | n/a n/a | n/a 1.09 | 3.7 1.96 | 6.7 n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 242 | 826 579 | 1977 n/a | n/a n/a | n/a 242 | 826 579 | 1977 n/a | n/a n/a | n/a 257 | 878 598 | 2042 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.21 | 4.1 1.94 | 6.6 n/a | n/a n/a | n/a 1.27 | 4.3 2.04 | 7 n/a | n/a n/a | n/a 1.18 | 4 1.89 | 6.5 n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 333 | 1137 n/a | n/a n/a | n/a n/a | n/a 333 | 1137 n/a | n/a n/a | n/a n/a | n/a 367 | 1253 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.71 | 5.8 n/a | n/a n/a | n/a n/a | n/a 1.8 | 6.1 n/a | n/a n/a | n/a n/a | n/a 1.75 | 6 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 302 | 1031 n/a | n/a n/a | n/a n/a | n/a 301 | 1028 n/a | n/a n/a | n/a n/a | n/a 332 | 1134 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.63 | 5.6 n/a | n/a n/a | n/a n/a | n/a 1.71 | 5.8 n/a | n/a n/a | n/a n/a | n/a 1.66 | 5.7 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 278 | 949 n/a | n/a n/a | n/a n/a | n/a 278 | 949 n/a | n/a n/a | n/a n/a | n/a 305 | 1042 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.48 | 5.1 n/a | n/a n/a | n/a n/a | n/a 1.56 | 5.3 n/a | n/a n/a | n/a n/a | n/a 1.5 | 5.1 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
