最近更新
27.05.2025
配置码 NLE11CNLT_26-REV3
销售代码 105H6109
种类描述 NLE11CNLT
产品状态 现有型号
规格书 下载
安装
多项的 NLE11CNLT_26-REV3 NLE11CNLT_26RC-REV3
电压范围 187 … 253 187 … 253
频率 60 60
高启动力矩 是 否
运行电容 否 是
电机转速 3500 3500
变频 否 否
制冷剂 R290 R290
特殊 建议热带地区使用 是 是
重载下的拉温能力 是 是
可移动操作 否 否
热气除霜能力 是 是
制冷量 冷却矩阵 Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F2 (fan 3m/s)

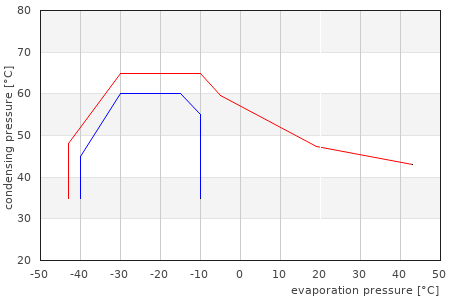

操作限制图 = 简短 = 持续的
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 499 | 1704 n/a | n/a n/a | n/a n/a | n/a 503 | 1718 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.28 | 4.4 n/a | n/a n/a | n/a n/a | n/a 1.37 | 4.7 n/a | n/a n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 668 | 2281 n/a | n/a n/a | n/a n/a | n/a 673 | 2298 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.65 | 5.6 n/a | n/a n/a | n/a n/a | n/a 1.76 | 6 n/a | n/a n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 383 | 1308 n/a | n/a n/a | n/a n/a | n/a 383 | 1308 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.32 | 4.5 n/a | n/a n/a | n/a n/a | n/a 1.39 | 4.7 n/a | n/a n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 544 | 1858 n/a | n/a n/a | n/a n/a | n/a 547 | 1868 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.37 | 4.7 n/a | n/a n/a | n/a n/a | n/a 1.46 | 5 n/a | n/a n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 730 | 2493 n/a | n/a n/a | n/a n/a | n/a 730 | 2493 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.92 | 6.6 n/a | n/a n/a | n/a n/a | n/a 2.04 | 7 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 686 | 2343 n/a | n/a n/a | n/a n/a | n/a 681 | 2326 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.93 | 6.6 n/a | n/a n/a | n/a n/a | n/a 2.03 | 6.9 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 616 | 2104 n/a | n/a n/a | n/a n/a | n/a 616 | 2104 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.66 | 5.7 n/a | n/a n/a | n/a n/a | n/a 1.77 | 6 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
