最近更新
27.05.2025
配置码 NLE11MF2_a25rev3
销售代码 105G6197 105G7101
种类描述 NLE11MF.2 NLE11MF.2
产品状态 现有型号 变体型号
规格书 下载 下载
安装
多项的 NLE11MF2_a25rev3 NLE11MF2_b25rev3 NLE11MF2_25RCREV3 NLE11MF2_513_25
电压范围 198 … 242 198 … 254 198 … 254 198 … 254
频率 50 50 50 50
高启动力矩 是 是 否 是
运行电容 否 否 是 否
电机转速 2900 2900 2900 2900
变频 否 否 否 否
制冷剂 R134a R134a R134a R513A
特殊 建议热带地区使用 否 否 否 否
重载下的拉温能力 是 是 是 是
可移动操作 否 否 否 否
热气除霜能力 是 是 是 是
制冷量 冷却矩阵 Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F2 (fan 3m/s)

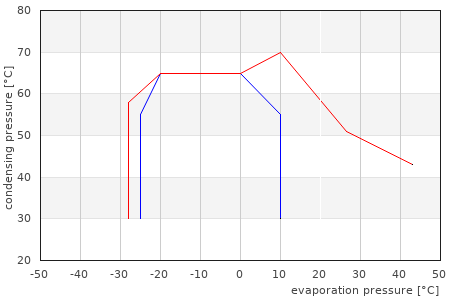

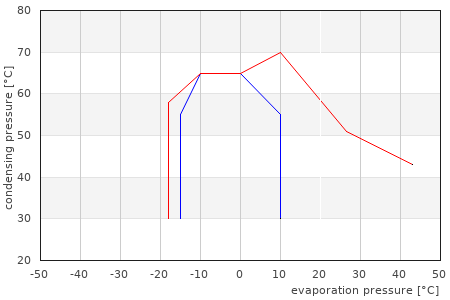

操作限制图 = 简短 = 持续的
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 242 | 826 527 | 1800 n/a | n/a n/a | n/a n/a | n/a 527 | 1800 n/a | n/a n/a | n/a 245 | 837 534 | 1824 n/a | n/a n/a | n/a n/a | n/a 547 | 1868 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.08 | 3.7 1.57 | 5.4 n/a | n/a n/a | n/a n/a | n/a 1.57 | 5.4 n/a | n/a n/a | n/a 1.17 | 4 1.7 | 5.8 n/a | n/a n/a | n/a n/a | n/a 1.53 | 5.2 n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 330 | 1127 681 | 2326 n/a | n/a n/a | n/a n/a | n/a 681 | 2326 n/a | n/a n/a | n/a 334 | 1141 690 | 2356 n/a | n/a n/a | n/a n/a | n/a 715 | 2442 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.41 | 4.8 1.88 | 6.4 n/a | n/a n/a | n/a n/a | n/a 1.88 | 6.4 n/a | n/a n/a | n/a 1.52 | 5.2 2.02 | 6.9 n/a | n/a n/a | n/a n/a | n/a 1.86 | 6.4 n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 169 | 577 601 | 2052 n/a | n/a n/a | n/a n/a | n/a 601 | 2052 n/a | n/a n/a | n/a 172 | 587 609 | 2080 n/a | n/a n/a | n/a n/a | n/a 628 | 2145 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.01 | 3.4 1.9 | 6.5 n/a | n/a n/a | n/a n/a | n/a 1.9 | 6.5 n/a | n/a n/a | n/a 1.08 | 3.7 2.05 | 7 n/a | n/a n/a | n/a n/a | n/a 1.87 | 6.4 n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 276 | 943 649 | 2216 n/a | n/a n/a | n/a n/a | n/a 649 | 2216 n/a | n/a n/a | n/a 280 | 956 658 | 2247 n/a | n/a n/a | n/a n/a | n/a 670 | 2288 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.18 | 4 1.86 | 6.4 n/a | n/a n/a | n/a n/a | n/a 1.86 | 6.4 n/a | n/a n/a | n/a 1.27 | 4.3 2 | 6.8 n/a | n/a n/a | n/a n/a | n/a 1.81 | 6.2 n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 369 | 1260 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 374 | 1277 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.64 | 5.6 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 1.77 | 6 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 324 | 1106 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 328 | 1120 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.55 | 5.3 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 1.67 | 5.7 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 310 | 1059 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 314 | 1072 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.42 | 4.8 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a 1.53 | 5.2 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
