最近更新
27.05.2025
配置码 NLE12.6CNL_25
销售代码 105H6376 105H6378
种类描述 NLE12.6CNL NLE12.6CNL
产品状态 变体型号 现有型号
规格书 下载 下载
安装
多项的 NLE12.6CNL_25 NLE12.6CNL_25RC
电压范围 198 … 254 198 … 254
频率 50 50
高启动力矩 是 否
运行电容 否 是
电机转速 2900 2900
变频 否 否
制冷剂 R290 R290
特殊 建议热带地区使用 否 否
重载下的拉温能力 是 否
可移动操作 否 否
热气除霜能力 是 是
制冷量 冷却矩阵 Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F2 (fan 3m/s)

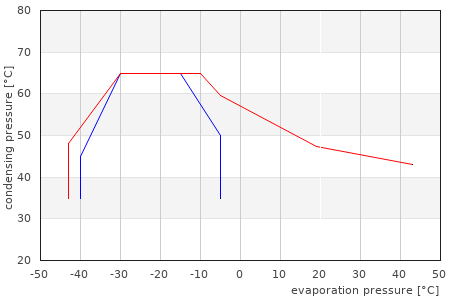

操作限制图 = 简短 = 持续的
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 460 | 1571 n/a | n/a n/a | n/a n/a | n/a 462 | 1578 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.27 | 4.3 n/a | n/a n/a | n/a n/a | n/a 1.32 | 4.5 n/a | n/a n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 610 | 2083 n/a | n/a n/a | n/a n/a | n/a 613 | 2093 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.62 | 5.5 n/a | n/a n/a | n/a n/a | n/a 1.69 | 5.8 n/a | n/a n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 354 | 1209 n/a | n/a n/a | n/a n/a | n/a 353 | 1205 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.33 | 4.5 n/a | n/a n/a | n/a n/a | n/a 1.39 | 4.7 n/a | n/a n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 493 | 1684 n/a | n/a n/a | n/a n/a | n/a 495 | 1690 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.36 | 4.6 n/a | n/a n/a | n/a n/a | n/a 1.41 | 4.8 n/a | n/a n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 660 | 2254 n/a | n/a n/a | n/a n/a | n/a 664 | 2268 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.91 | 6.5 n/a | n/a n/a | n/a n/a | n/a 1.99 | 6.8 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 628 | 2145 n/a | n/a n/a | n/a n/a | n/a 631 | 2155 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.91 | 6.5 n/a | n/a n/a | n/a n/a | n/a 1.99 | 6.8 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 561 | 1916 n/a | n/a n/a | n/a n/a | n/a 564 | 1926 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.67 | 5.7 n/a | n/a n/a | n/a n/a | n/a 1.74 | 5.9 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
