配置码 NLV10CN-2000_25 |
|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 销售代码 | 105H7003 | 105H7004 | |||||||||||||||
| 种类描述 | NLV10CN | NLV10CN | |||||||||||||||
| 产品状态 | 变体型号 | 变体型号 | |||||||||||||||
| 规格书 | 下载 | 下载 | 安装 | ||||||||||||||
| 多项的 | NLV10CN-2000_25 | NLV10CN-2500_25 | NLV10CN-3000_25 | NLV10CN-4500_25 | |||||||||||||
| 电压范围 | 90 … 270 | 90 … 270 | 90 … 270 | 90 … 270 | |||||||||||||
| 频率 | 50 | 50 | 50 | 50 | |||||||||||||
| 高启动力矩 | 是 | 是 | 是 | 是 | |||||||||||||
| 运行电容 | 否 | 否 | 否 | 否 | |||||||||||||
| 电机转速 | 2000 | 2500 | 3000 | 4500 | |||||||||||||
| 变频 | 是 | 是 | 是 | 是 | |||||||||||||
| 制冷剂 | R290 | R290 | R290 | R290 | |||||||||||||
| 特殊 | 建议热带地区使用 | 是 | 是 | 是 | 是 | ||||||||||||
| 重载下的拉温能力 | 是 | 是 | 是 | 是 | |||||||||||||
| 可移动操作 | 否 | 否 | 否 | 否 | |||||||||||||
| 热气除霜能力 | 是 | 是 | 是 | 是 | |||||||||||||
| 制冷量 | 冷却矩阵 | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | ||||||||||||

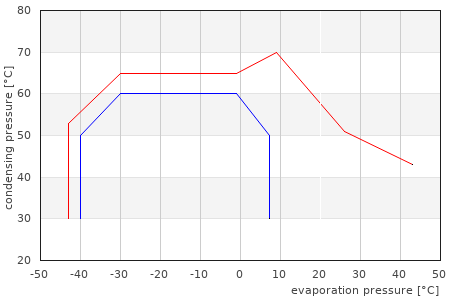

| 操作限制图 = 简短 = 持续的 |
|
|
|
|
|||||||||||||
| CECOMAF | CECOMAF | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 264 | 902 | 505 | 1725 | n/a | n/a | n/a | n/a | 329 | 1124 | 621 | 2121 | n/a | n/a | n/a | n/a | 385 | 1315 | 736 | 2513 | n/a | n/a | n/a | n/a | 560 | 1912 | 1077 | 3678 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.35 | 4.6 | 1.84 | 6.3 | n/a | n/a | n/a | n/a | 1.41 | 4.8 | 1.92 | 6.6 | n/a | n/a | n/a | n/a | 1.39 | 4.7 | 1.9 | 6.5 | n/a | n/a | n/a | n/a | 1.37 | 4.7 | 1.87 | 6.4 | n/a | n/a | |
| ASHRAE | ASHRAE | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 353 | 1205 | 637 | 2175 | n/a | n/a | n/a | n/a | 439 | 1499 | 782 | 2671 | n/a | n/a | n/a | n/a | 515 | 1759 | 931 | 3179 | n/a | n/a | n/a | n/a | 750 | 2561 | 1360 | 4644 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.74 | 5.9 | 2.21 | 7.5 | n/a | n/a | n/a | n/a | 1.81 | 6.2 | 2.29 | 7.8 | n/a | n/a | n/a | n/a | 1.78 | 6.1 | 2.28 | 7.8 | n/a | n/a | n/a | n/a | 1.77 | 6 | 2.22 | 7.6 | n/a | n/a | |
| EN12900 | EN12900 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 195 | 666 | 555 | 1895 | n/a | n/a | n/a | n/a | 246 | 840 | 688 | 2350 | n/a | n/a | n/a | n/a | 293 | 1001 | 825 | 2817 | n/a | n/a | n/a | n/a | 413 | 1410 | 1189 | 4060 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.42 | 4.8 | 2.3 | 7.9 | n/a | n/a | n/a | n/a | 1.44 | 4.9 | 2.33 | 8 | n/a | n/a | n/a | n/a | 1.46 | 5 | 2.33 | 8 | n/a | n/a | n/a | n/a | 1.38 | 4.7 | 2.2 | 7.5 | n/a | n/a | |
| ARI540 | ARI540 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 283 | 966 | 593 | 2025 | n/a | n/a | n/a | n/a | 354 | 1209 | 731 | 2496 | n/a | n/a | n/a | n/a | 417 | 1424 | 875 | 2988 | n/a | n/a | n/a | n/a | 603 | 2059 | 1269 | 4334 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.46 | 5 | 2.22 | 7.6 | n/a | n/a | n/a | n/a | 1.5 | 5.1 | 2.26 | 7.7 | n/a | n/a | n/a | n/a | 1.49 | 5.1 | 2.25 | 7.7 | n/a | n/a | n/a | n/a | 1.45 | 5 | 2.15 | 7.3 | n/a | n/a | |
| AHAM | AHAM | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 372 | 1270 | n/a | n/a | n/a | n/a | n/a | n/a | 468 | 1598 | n/a | n/a | n/a | n/a | n/a | n/a | 559 | 1909 | n/a | n/a | n/a | n/a | n/a | n/a | 796 | 2718 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 2.07 | 7.1 | n/a | n/a | n/a | n/a | n/a | n/a | 2.09 | 7.1 | n/a | n/a | n/a | n/a | n/a | n/a | 2.1 | 7.2 | n/a | n/a | n/a | n/a | n/a | n/a | 1.98 | 6.8 | n/a | n/a | n/a | n/a | |
| VSD_opt1 | VSD_opt1 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 345 | 1178 | n/a | n/a | n/a | n/a | n/a | n/a | 431 | 1472 | n/a | n/a | n/a | n/a | n/a | n/a | 521 | 1779 | n/a | n/a | n/a | n/a | n/a | n/a | 733 | 2503 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 2.11 | 7.2 | n/a | n/a | n/a | n/a | n/a | n/a | 2.08 | 7.1 | n/a | n/a | n/a | n/a | n/a | n/a | 2.11 | 7.2 | n/a | n/a | n/a | n/a | n/a | n/a | 1.95 | 6.7 | n/a | n/a | n/a | n/a | |
| VSD_opt2 | VSD_opt2 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 316 | 1079 | n/a | n/a | n/a | n/a | n/a | n/a | 397 | 1356 | n/a | n/a | n/a | n/a | n/a | n/a | 474 | 1619 | n/a | n/a | n/a | n/a | n/a | n/a | 674 | 2302 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.8 | 6.1 | n/a | n/a | n/a | n/a | n/a | n/a | 1.82 | 6.2 | n/a | n/a | n/a | n/a | n/a | n/a | 1.83 | 6.2 | n/a | n/a | n/a | n/a | n/a | n/a | 1.74 | 5.9 | n/a | n/a | n/a | n/a | |
| lowTemp | lowTemp | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
