配置码 NLV12.6CN-2000_25 |
|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 销售代码 | 105H6365 | 105H6366 | |||||||||||||||
| 种类描述 | NLV12.6CN | NLV12.6CN | |||||||||||||||
| 产品状态 | 变体型号 | 变体型号 | |||||||||||||||
| 规格书 | 下载 | 下载 | 安装 | ||||||||||||||
| 多项的 | NLV12.6CN-2000_25 | NLV12.6CN-2500_25 | NLV12.6CN-3000_25 | NLV12.6CN-4500_25 | |||||||||||||
| 电压范围 | 198 … 254 | 198 … 254 | 198 … 254 | 198 … 254 | |||||||||||||
| 频率 | 50 | 50 | 50 | 50 | |||||||||||||
| 高启动力矩 | 是 | 是 | 是 | 是 | |||||||||||||
| 运行电容 | 否 | 否 | 否 | 否 | |||||||||||||
| 电机转速 | 2000 | 2500 | 3000 | 4500 | |||||||||||||
| 变频 | 是 | 是 | 是 | 是 | |||||||||||||
| 制冷剂 | R290 | R290 | R290 | R290 | |||||||||||||
| 特殊 | 建议热带地区使用 | 否 | 否 | 否 | 否 | ||||||||||||
| 重载下的拉温能力 | 是 | 是 | 是 | 是 | |||||||||||||
| 可移动操作 | 否 | 否 | 否 | 否 | |||||||||||||
| 热气除霜能力 | 是 | 是 | 是 | 是 | |||||||||||||
| 制冷量 | 冷却矩阵 | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | ||||||||||||

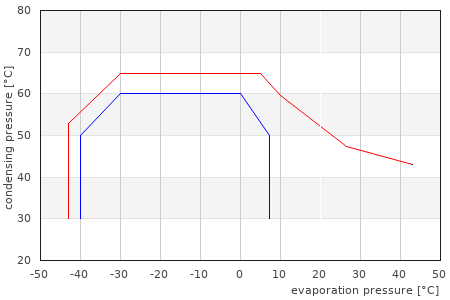

| 操作限制图 = 简短 = 持续的 |
|
|
|
|
|||||||||||||
| CECOMAF | CECOMAF | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 322 | 1100 | 610 | 2083 | n/a | n/a | n/a | n/a | 410 | 1400 | 766 | 2616 | n/a | n/a | n/a | n/a | 492 | 1680 | 914 | 3121 | n/a | n/a | n/a | n/a | 711 | 2428 | 1336 | 4562 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.36 | 4.6 | 1.84 | 6.3 | n/a | n/a | n/a | n/a | 1.41 | 4.8 | 1.89 | 6.5 | n/a | n/a | n/a | n/a | 1.43 | 4.9 | 1.91 | 6.5 | n/a | n/a | n/a | n/a | 1.39 | 4.7 | 1.84 | 6.3 | n/a | n/a | |
| ASHRAE | ASHRAE | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 431 | 1472 | 770 | 2630 | n/a | n/a | n/a | n/a | 548 | 1871 | 961 | 3282 | n/a | n/a | n/a | n/a | 655 | 2237 | 1151 | 3931 | n/a | n/a | n/a | n/a | 952 | 3251 | 1679 | 5734 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.74 | 5.9 | 2.19 | 7.5 | n/a | n/a | n/a | n/a | 1.81 | 6.2 | 2.25 | 7.7 | n/a | n/a | n/a | n/a | 1.83 | 6.2 | 2.28 | 7.8 | n/a | n/a | n/a | n/a | 1.78 | 6.1 | 2.19 | 7.5 | n/a | n/a | |
| EN12900 | EN12900 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 245 | 837 | 688 | 2350 | n/a | n/a | n/a | n/a | 301 | 1028 | 845 | 2886 | n/a | n/a | n/a | n/a | 366 | 1250 | 1003 | 3425 | n/a | n/a | n/a | n/a | 544 | 1858 | 1504 | 5136 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.44 | 4.9 | 2.25 | 7.7 | n/a | n/a | n/a | n/a | 1.53 | 5.2 | 2.3 | 7.9 | n/a | n/a | n/a | n/a | 1.51 | 5.2 | 2.31 | 7.9 | n/a | n/a | n/a | n/a | 1.51 | 5.2 | 2.3 | 7.9 | n/a | n/a | |
| ARI540 | ARI540 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 351 | 1199 | 726 | 2479 | n/a | n/a | n/a | n/a | 440 | 1503 | 897 | 3063 | n/a | n/a | n/a | n/a | 525 | 1793 | 1070 | 3654 | n/a | n/a | n/a | n/a | 774 | 2643 | 1583 | 5406 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.46 | 5 | 2.17 | 7.4 | n/a | n/a | n/a | n/a | 1.51 | 5.2 | 2.22 | 7.6 | n/a | n/a | n/a | n/a | 1.51 | 5.2 | 2.23 | 7.6 | n/a | n/a | n/a | n/a | 1.51 | 5.2 | 2.19 | 7.5 | n/a | n/a | |
| AHAM | AHAM | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 470 | 1605 | n/a | n/a | n/a | n/a | n/a | n/a | 579 | 1977 | n/a | n/a | n/a | n/a | n/a | n/a | 690 | 2356 | n/a | n/a | n/a | n/a | n/a | n/a | 1038 | 3545 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 2.05 | 7 | n/a | n/a | n/a | n/a | n/a | n/a | 2.15 | 7.3 | n/a | n/a | n/a | n/a | n/a | n/a | 2.13 | 7.3 | n/a | n/a | n/a | n/a | n/a | n/a | 2.14 | 7.3 | n/a | n/a | n/a | n/a | |
| VSD_opt1 | VSD_opt1 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 435 | 1486 | n/a | n/a | n/a | n/a | n/a | n/a | 538 | 1837 | n/a | n/a | n/a | n/a | n/a | n/a | 639 | 2182 | n/a | n/a | n/a | n/a | n/a | n/a | 961 | 3282 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 2.02 | 6.9 | n/a | n/a | n/a | n/a | n/a | n/a | 2.15 | 7.3 | n/a | n/a | n/a | n/a | n/a | n/a | 2.12 | 7.2 | n/a | n/a | n/a | n/a | n/a | n/a | 2.07 | 7.1 | n/a | n/a | n/a | n/a | |
| VSD_opt2 | VSD_opt2 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 399 | 1363 | n/a | n/a | n/a | n/a | n/a | n/a | 492 | 1680 | n/a | n/a | n/a | n/a | n/a | n/a | 588 | 2008 | n/a | n/a | n/a | n/a | n/a | n/a | 881 | 3009 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.79 | 6.1 | n/a | n/a | n/a | n/a | n/a | n/a | 1.88 | 6.4 | n/a | n/a | n/a | n/a | n/a | n/a | 1.86 | 6.4 | n/a | n/a | n/a | n/a | n/a | n/a | 1.88 | 6.4 | n/a | n/a | n/a | n/a | |
| lowTemp | lowTemp | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
