Last Update
29.04.2025
Configuration-Code NLY10CN_16
Code number 105H6164 105H6165
Type designation NLY10CN NLY10CN
Product status 现有型号 变体型号
Data Sheet Download Download
Setup
Polynomial NLY10CN_16 NLY10CN_16RC
Voltage range [V … V] 95 … 135 95 … 135
Frequency 60 60
High starting torque yes no
Run capacitor no yes
Motor speed [rpm] 3500 3500
Variable speed no no
Refrigerant R290 R290
Specials Tropical use recommended yes yes
Heavy duty pull down capability yes yes
Mobile operation possible no no
Hot gas defrost capability yes yes
Cooling Required cooling Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F2 (fan 3m/s)

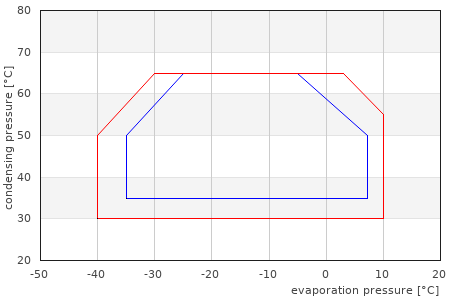

Operation limits diagram = short = continuous
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 445 | 1520 848 | 2896 n/a | n/a n/a | n/a 449 | 1533 859 | 2933 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.24 | 4.2 1.78 | 6.1 n/a | n/a n/a | n/a 1.32 | 4.5 1.9 | 6.5 n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 592 | 2022 1068 | 3647 n/a | n/a n/a | n/a 597 | 2039 1082 | 3695 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.6 | 5.5 2.15 | 7.3 n/a | n/a n/a | n/a 1.69 | 5.8 2.3 | 7.9 n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 340 | 1161 935 | 3193 n/a | n/a n/a | n/a 342 | 1168 943 | 3220 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.23 | 4.2 2.14 | 7.3 n/a | n/a n/a | n/a 1.31 | 4.5 2.26 | 7.7 n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 482 | 1646 993 | 3391 n/a | n/a n/a | n/a 484 | 1653 1001 | 3418 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.32 | 4.5 2.1 | 7.2 n/a | n/a n/a | n/a 1.39 | 4.7 2.22 | 7.6 n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 649 | 2216 n/a | n/a n/a | n/a n/a | n/a 655 | 2237 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.86 | 6.4 n/a | n/a n/a | n/a n/a | n/a 1.96 | 6.7 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 615 | 2100 n/a | n/a n/a | n/a n/a | n/a 627 | 2141 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.88 | 6.4 n/a | n/a n/a | n/a n/a | n/a 2 | 6.8 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 550 | 1878 n/a | n/a n/a | n/a n/a | n/a 554 | 1892 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.6 | 5.5 n/a | n/a n/a | n/a n/a | n/a 1.69 | 5.8 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
