Last Update
29.04.2025
Configuration-Code SC10CLX25
Code number 104L2512 104L2533 104L2536
Type designation SC10CLX SC10CLX SC10CLX
Product status 变体型号 现有型号 变体型号
Data Sheet Download Download Download
Setup
Polynomial SC10CLX25 SC10CLX26
Voltage range [V … V] 198 … 254 198 … 254
Frequency 50 60
High starting torque yes yes
Run capacitor no no
Motor speed [rpm] 2900 3500
Variable speed no no
Refrigerant R404A R404A
Specials Tropical use recommended no no
Heavy duty pull down capability yes yes
Mobile operation possible no no
Hot gas defrost capability yes yes
Cooling Required cooling Max. ambient temp.: 38°C F2 (fan 3m/s) Max. ambient temp.: 38°C F2 (fan 3m/s)

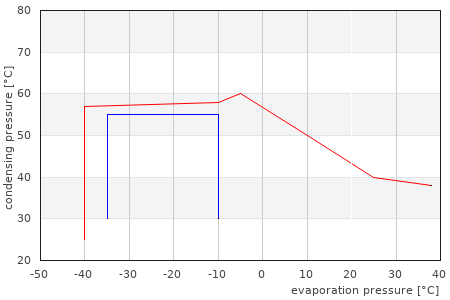

Operation limits diagram = short = continuous
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 258 | 881 n/a | n/a n/a | n/a n/a | n/a 340 | 1161 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.77 | 2.6 n/a | n/a n/a | n/a n/a | n/a 0.81 | 2.8 n/a | n/a n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 395 | 1349 n/a | n/a n/a | n/a n/a | n/a 516 | 1762 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.11 | 3.8 n/a | n/a n/a | n/a n/a | n/a 1.16 | 4 n/a | n/a n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 194 | 663 n/a | n/a n/a | n/a n/a | n/a 262 | 895 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.74 | 2.5 n/a | n/a n/a | n/a n/a | n/a 0.81 | 2.8 n/a | n/a n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 306 | 1045 n/a | n/a n/a | n/a n/a | n/a 390 | 1332 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.84 | 2.9 n/a | n/a n/a | n/a n/a | n/a 0.87 | 3 n/a | n/a n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 491 | 1677 n/a | n/a n/a | n/a n/a | n/a 598 | 2042 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.33 | 4.5 n/a | n/a n/a | n/a n/a | n/a 1.34 | 4.6 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 465 | 1588 n/a | n/a n/a | n/a n/a | n/a 550 | 1878 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.32 | 4.5 n/a | n/a n/a | n/a n/a | n/a 1.33 | 4.5 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 391 | 1335 n/a | n/a n/a | n/a n/a | n/a 487 | 1663 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.11 | 3.8 n/a | n/a n/a | n/a n/a | n/a 1.13 | 3.9 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
