配置码 SC10GH_5060_25 |
|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 销售代码 | 104G8041 | ||||||||||||||||
| 种类描述 | SC10GH | ||||||||||||||||
| 产品状态 | 现有型号 | ||||||||||||||||
| 规格书 | 下载 | 安装 | |||||||||||||||
| 多项的 | SC10GH_5060_25 | SC10GH_5060_25R513A | SC10GH_5060_26 | SC10GH_5060_26R513A | |||||||||||||
| 电压范围 | 198 … 254 | 198 … 254 | 198 … 254 | 198 … 254 | |||||||||||||
| 频率 | 50 | 50 | 60 | 60 | |||||||||||||
| 高启动力矩 | 是 | 是 | 是 | 是 | |||||||||||||
| 运行电容 | 否 | 否 | 否 | 否 | |||||||||||||
| 电机转速 | 2900 | 2900 | 3500 | 3500 | |||||||||||||
| 变频 | 否 | 否 | 否 | 否 | |||||||||||||
| 制冷剂 | R134a | R513A | R134a | R513A | |||||||||||||
| 特殊 | 建议热带地区使用 | 否 | 否 | 否 | 否 | ||||||||||||
| 重载下的拉温能力 | 是 | 是 | 是 | 是 | |||||||||||||
| 可移动操作 | 否 | 否 | 否 | 否 | |||||||||||||
| 热气除霜能力 | 是 | 是 | 是 | 是 | |||||||||||||
| 制冷量 | 冷却矩阵 | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | ||||||||||||

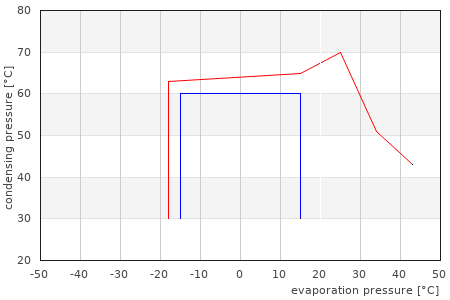

| 操作限制图 = 简短 = 持续的 |
|
|
|
|
|||||||||||||
| CECOMAF | CECOMAF | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | 352 | 1202 | 762 | 2602 | n/a | n/a | n/a | n/a | 366 | 1250 | 772 | 2636 | n/a | n/a | n/a | n/a | 421 | 1438 | 849 | 2899 | n/a | n/a | n/a | n/a | 437 | 1492 | 861 | 2940 | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | 1.25 | 4.3 | 1.93 | 6.6 | n/a | n/a | n/a | n/a | 1.23 | 4.2 | 1.87 | 6.4 | n/a | n/a | n/a | n/a | 1.24 | 4.2 | 1.71 | 5.8 | n/a | n/a | n/a | n/a | 1.21 | 4.1 | 1.66 | 5.7 | |
| ASHRAE | ASHRAE | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | 481 | 1643 | 924 | 3155 | n/a | n/a | n/a | n/a | 505 | 1725 | 951 | 3248 | n/a | n/a | n/a | n/a | 555 | 1895 | 1037 | 3541 | n/a | n/a | n/a | n/a | 583 | 1991 | 1067 | 3644 | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | 1.56 | 5.3 | 2.27 | 7.8 | n/a | n/a | n/a | n/a | 1.55 | 5.3 | 2.24 | 7.6 | n/a | n/a | n/a | n/a | 1.48 | 5.1 | 2.02 | 6.9 | n/a | n/a | n/a | n/a | 1.47 | 5 | 1.99 | 6.8 | |
| EN12900 | EN12900 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | 408 | 1393 | 796 | 2718 | n/a | n/a | n/a | n/a | 425 | 1451 | 802 | 2739 | n/a | n/a | n/a | n/a | 516 | 1762 | 909 | 3104 | n/a | n/a | n/a | n/a | 538 | 1837 | 916 | 3128 | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | 1.51 | 5.2 | 2.12 | 7.2 | n/a | n/a | n/a | n/a | 1.48 | 5.1 | 2.04 | 7 | n/a | n/a | n/a | n/a | 1.53 | 5.2 | 1.94 | 6.6 | n/a | n/a | n/a | n/a | 1.5 | 5.1 | 1.87 | 6.4 | |
| ARI540 | ARI540 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | 460 | 1571 | 796 | 2718 | n/a | n/a | n/a | n/a | 472 | 1612 | 790 | 2698 | n/a | n/a | n/a | n/a | 553 | 1888 | 893 | 3050 | n/a | n/a | n/a | n/a | 568 | 1940 | 886 | 3026 | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | 1.54 | 5.3 | 1.96 | 6.7 | n/a | n/a | n/a | n/a | 1.49 | 5.1 | 1.86 | 6.4 | n/a | n/a | n/a | n/a | 1.51 | 5.2 | 1.74 | 5.9 | n/a | n/a | n/a | n/a | 1.46 | 5 | 1.65 | 5.6 | |
| AHAM | AHAM | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| VSD_opt1 | VSD_opt1 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| VSD_opt2 | VSD_opt2 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| lowTemp | lowTemp | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
