最近更新
27.05.2025
配置码 SC12CL25
销售代码 104L2623
种类描述 SC12CL
产品状态 现有型号
规格书 下载
安装
多项的 SC12CL25 SC12CL25_452
电压范围 198 … 254 198 … 254
频率 50 50
高启动力矩 是 是
运行电容 否 否
电机转速 2900 2900
变频 否 否
制冷剂 R404A R452A
特殊 建议热带地区使用 否 否
重载下的拉温能力 是 是
可移动操作 否 否
热气除霜能力 是 是
制冷量 冷却矩阵 Max. ambient temp.: 38°C F2 (fan 3m/s) Max. ambient temp.: 38°C F2 (fan 3m/s)

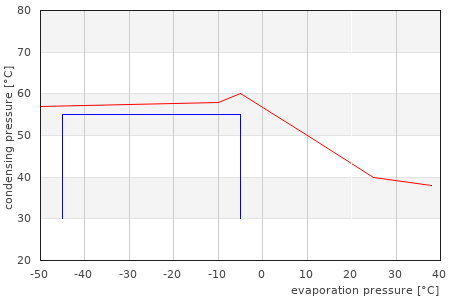

操作限制图 = 简短 = 持续的
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 336 | 1147 n/a | n/a n/a | n/a n/a | n/a 305 | 1042 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.76 | 2.6 n/a | n/a n/a | n/a n/a | n/a 0.75 | 2.6 n/a | n/a n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 514 | 1755 n/a | n/a n/a | n/a n/a | n/a 464 | 1585 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.1 | 3.8 n/a | n/a n/a | n/a n/a | n/a 1.07 | 3.7 n/a | n/a n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 279 | 953 n/a | n/a n/a | n/a n/a | n/a 246 | 840 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.87 | 3 n/a | n/a n/a | n/a n/a | n/a 0.84 | 2.9 n/a | n/a n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 408 | 1393 n/a | n/a n/a | n/a n/a | n/a 375 | 1281 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.87 | 3 n/a | n/a n/a | n/a n/a | n/a 0.86 | 2.9 n/a | n/a n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 665 | 2271 n/a | n/a n/a | n/a n/a | n/a 607 | 2073 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.44 | 4.9 n/a | n/a n/a | n/a n/a | n/a 1.41 | 4.8 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 640 | 2186 n/a | n/a n/a | n/a n/a | n/a 586 | 2001 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.47 | 5 n/a | n/a n/a | n/a n/a | n/a 1.44 | 4.9 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 531 | 1813 n/a | n/a n/a | n/a n/a | n/a 484 | 1653 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.2 | 4.1 n/a | n/a n/a | n/a n/a | n/a 1.18 | 4 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
