最近更新
27.05.2025
配置码 SC15CLX2_16
销售代码 104L1853
种类描述 SC15CLX.2
产品状态 现有型号
规格书 下载
安装
多项的 SC15CLX2_16 SC15CLX2_16_452 SC15CLX2_16RC SC15CLX2_16_452RC
电压范围 103 … 127 103 … 127 103 … 127 103 … 127
频率 60 60 60 60
高启动力矩 是 是 是 是
运行电容 否 否 是 是
电机转速 3500 3500 3500 3500
变频 否 否 否 否
制冷剂 R404A R452A R404A R452A
特殊 建议热带地区使用 否 否 否 否
重载下的拉温能力 否 否 否 否
可移动操作 否 否 否 否
热气除霜能力 是 是 是 是
制冷量 冷却矩阵 Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F2 (fan 3m/s)

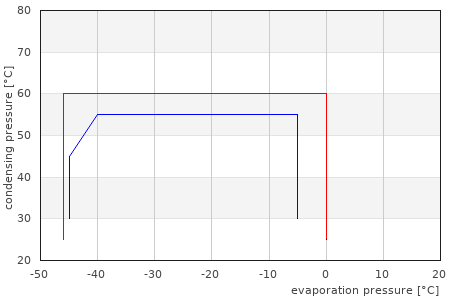

操作限制图 = 简短 = 持续的
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 592 | 2022 n/a | n/a n/a | n/a n/a | n/a 545 | 1861 n/a | n/a n/a | n/a n/a | n/a 588 | 2008 n/a | n/a n/a | n/a n/a | n/a 541 | 1848 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.85 | 2.9 n/a | n/a n/a | n/a n/a | n/a 0.84 | 2.9 n/a | n/a n/a | n/a n/a | n/a 0.89 | 3 n/a | n/a n/a | n/a n/a | n/a 0.88 | 3 n/a | n/a n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 880 | 3005 n/a | n/a n/a | n/a n/a | n/a 804 | 2746 n/a | n/a n/a | n/a n/a | n/a 874 | 2985 n/a | n/a n/a | n/a n/a | n/a 798 | 2725 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.21 | 4.1 n/a | n/a n/a | n/a n/a | n/a 1.18 | 4 n/a | n/a n/a | n/a n/a | n/a 1.27 | 4.3 n/a | n/a n/a | n/a n/a | n/a 1.24 | 4.2 n/a | n/a n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 478 | 1632 n/a | n/a n/a | n/a n/a | n/a 431 | 1472 n/a | n/a n/a | n/a n/a | n/a 475 | 1622 n/a | n/a n/a | n/a n/a | n/a 428 | 1462 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.93 | 3.2 n/a | n/a n/a | n/a n/a | n/a 0.9 | 3.1 n/a | n/a n/a | n/a n/a | n/a 0.98 | 3.3 n/a | n/a n/a | n/a n/a | n/a 0.96 | 3.3 n/a | n/a n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 662 | 2261 n/a | n/a n/a | n/a n/a | n/a 615 | 2100 n/a | n/a n/a | n/a n/a | n/a 658 | 2247 n/a | n/a n/a | n/a n/a | n/a 610 | 2083 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.93 | 3.2 n/a | n/a n/a | n/a n/a | n/a 0.93 | 3.2 n/a | n/a n/a | n/a n/a | n/a 0.97 | 3.3 n/a | n/a n/a | n/a n/a | n/a 0.97 | 3.3 n/a | n/a n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 1017 | 3473 n/a | n/a n/a | n/a n/a | n/a 935 | 3193 n/a | n/a n/a | n/a n/a | n/a 1010 | 3449 n/a | n/a n/a | n/a n/a | n/a 929 | 3173 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.48 | 5.1 n/a | n/a n/a | n/a n/a | n/a 1.46 | 5 n/a | n/a n/a | n/a n/a | n/a 1.55 | 5.3 n/a | n/a n/a | n/a n/a | n/a 1.52 | 5.2 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 952 | 3251 n/a | n/a n/a | n/a n/a | n/a 876 | 2992 n/a | n/a n/a | n/a n/a | n/a 945 | 3227 n/a | n/a n/a | n/a n/a | n/a 870 | 2971 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.47 | 5 n/a | n/a n/a | n/a n/a | n/a 1.45 | 5 n/a | n/a n/a | n/a n/a | n/a 1.54 | 5.3 n/a | n/a n/a | n/a n/a | n/a 1.52 | 5.2 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 830 | 2834 n/a | n/a n/a | n/a n/a | n/a 763 | 2606 n/a | n/a n/a | n/a n/a | n/a 824 | 2814 n/a | n/a n/a | n/a n/a | n/a 758 | 2589 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.25 | 4.3 n/a | n/a n/a | n/a n/a | n/a 1.23 | 4.2 n/a | n/a n/a | n/a n/a | n/a 1.3 | 4.4 n/a | n/a n/a | n/a n/a | n/a 1.28 | 4.4 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
