Last Update
29.04.2025
Configuration-Code SC15MFX_25
Code number 104G8501
Type designation SC15MFX
Product status 现有型号
Data Sheet Download
Setup
Polynomial SC15MFX_25 SC15MFX_513_25 SC15MFX_25YF
Voltage range [V … V] 198 … 254 198 … 254 198 … 254
Frequency 50 50 50
High starting torque yes yes yes
Run capacitor no no no
Motor speed [rpm] 2900 2900 2900
Variable speed no no no
Refrigerant R134a R513A R1234yf
Specials Tropical use recommended no no no
Heavy duty pull down capability yes yes yes
Mobile operation possible no no no
Hot gas defrost capability yes yes yes
Cooling Required cooling Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F2 (fan 3m/s)

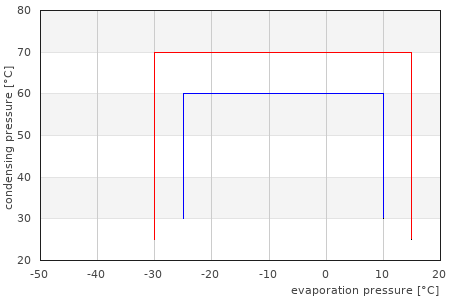

Operation limits diagram = short = continuous
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 226 | 772 602 | 2056 n/a | n/a n/a | n/a 245 | 837 625 | 2134 n/a | n/a n/a | n/a 240 | 820 598 | 2042 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.81 | 2.8 1.38 | 4.7 n/a | n/a n/a | n/a 0.82 | 2.8 1.34 | 4.6 n/a | n/a n/a | n/a 0.81 | 2.8 1.34 | 4.6 n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 324 | 1106 786 | 2684 n/a | n/a n/a | n/a 361 | 1233 826 | 2821 n/a | n/a n/a | n/a 356 | 1216 793 | 2708 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.1 | 3.8 1.66 | 5.7 n/a | n/a n/a | n/a 1.14 | 3.9 1.65 | 5.6 n/a | n/a n/a | n/a 1.14 | 3.9 1.66 | 5.7 n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 138 | 471 676 | 2309 n/a | n/a n/a | n/a 156 | 533 708 | 2418 n/a | n/a n/a | n/a 155 | 529 671 | 2291 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.78 | 2.7 1.63 | 5.6 n/a | n/a n/a | n/a 0.86 | 2.9 1.61 | 5.5 n/a | n/a n/a | n/a 0.82 | 2.8 1.59 | 5.4 n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 278 | 949 744 | 2541 n/a | n/a n/a | n/a 295 | 1007 769 | 2626 n/a | n/a n/a | n/a 279 | 953 721 | 2462 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.96 | 3.3 1.62 | 5.5 n/a | n/a n/a | n/a 0.95 | 3.2 1.58 | 5.4 n/a | n/a n/a | n/a 0.91 | 3.1 1.56 | 5.3 n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 373 | 1274 n/a | n/a n/a | n/a n/a | n/a 411 | 1404 n/a | n/a n/a | n/a n/a | n/a 405 | 1383 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.32 | 4.5 n/a | n/a n/a | n/a n/a | n/a 1.38 | 4.7 n/a | n/a n/a | n/a n/a | n/a 1.37 | 4.7 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 343 | 1171 n/a | n/a n/a | n/a n/a | n/a 378 | 1291 n/a | n/a n/a | n/a n/a | n/a 373 | 1274 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.28 | 4.4 n/a | n/a n/a | n/a n/a | n/a 1.34 | 4.6 n/a | n/a n/a | n/a n/a | n/a 1.33 | 4.5 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 304 | 1038 n/a | n/a n/a | n/a n/a | n/a 334 | 1141 n/a | n/a n/a | n/a n/a | n/a 328 | 1120 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.13 | 3.9 n/a | n/a n/a | n/a n/a | n/a 1.18 | 4 n/a | n/a n/a | n/a n/a | n/a 1.17 | 4 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
