Last Update
29.04.2025
Configuration-Code SC15MLX25
Code number 104L2869
Type designation SC15MLX
Product status 现有型号
Data Sheet Download
Setup
Polynomial SC15MLX25 SC15MLX25_452 SC15MLX25_448 SC15MLX25_449
Voltage range [V … V] 198 … 254 198 … 254 198 … 254 198 … 254
Frequency 50 50 50 50
High starting torque yes yes yes yes
Run capacitor no no no no
Motor speed [rpm] 2900 2900 2900 2900
Variable speed no no no no
Refrigerant R404A R452A
Specials Tropical use recommended no no no no
Heavy duty pull down capability yes yes yes yes
Mobile operation possible no no no no
Hot gas defrost capability yes yes yes yes
Cooling Required cooling Max. ambient temp.: 38°C F2 (fan 3m/s) Max. ambient temp.: 38°C F2 (fan 3m/s) Max. ambient temp.: 38°C F2 (fan 3m/s) Max. ambient temp.: 38°C F2 (fan 3m/s)

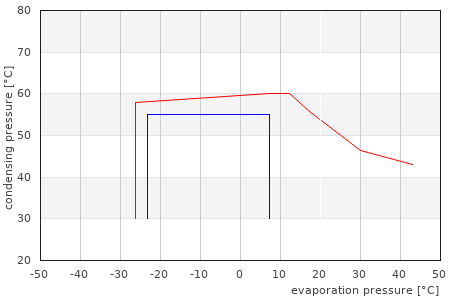

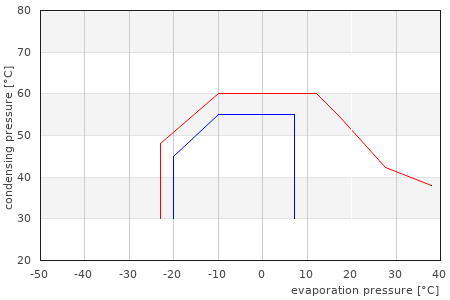

Operation limits diagram = short = continuous
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 521 | 1779 1025 | 3500 n/a | n/a n/a | n/a 479 | 1636 970 | 3313 n/a | n/a n/a | n/a n/a | n/a 959 | 3275 n/a | n/a n/a | n/a n/a | n/a 953 | 3254 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.85 | 2.9 1.22 | 4.2 n/a | n/a n/a | n/a 0.84 | 2.9 1.22 | 4.2 n/a | n/a n/a | n/a n/a | n/a 1.28 | 4.4 n/a | n/a n/a | n/a n/a | n/a 1.28 | 4.4 n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 760 | 2595 1376 | 4699 n/a | n/a n/a | n/a 694 | 2370 1301 | 4443 n/a | n/a n/a | n/a n/a | n/a 1255 | 4286 n/a | n/a n/a | n/a n/a | n/a 1248 | 4262 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.19 | 4.1 1.55 | 5.3 n/a | n/a n/a | n/a 1.17 | 4 1.54 | 5.3 n/a | n/a n/a | n/a n/a | n/a 1.57 | 5.4 n/a | n/a n/a | n/a n/a | n/a 1.57 | 5.4 n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 423 | 1445 1211 | 4136 n/a | n/a n/a | n/a 381 | 1301 1142 | 3900 n/a | n/a n/a | n/a n/a | n/a 1117 | 3815 n/a | n/a n/a | n/a n/a | n/a 1110 | 3791 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.89 | 3 1.55 | 5.3 n/a | n/a n/a | n/a 0.87 | 3 1.54 | 5.3 n/a | n/a n/a | n/a n/a | n/a 1.6 | 5.5 n/a | n/a n/a | n/a n/a | n/a 1.59 | 5.4 n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 560 | 1912 1253 | 4279 n/a | n/a n/a | n/a 520 | 1776 1190 | 4064 n/a | n/a n/a | n/a n/a | n/a 1189 | 4060 n/a | n/a n/a | n/a n/a | n/a 1180 | 4030 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.9 | 3.1 1.48 | 5.1 n/a | n/a n/a | n/a 0.9 | 3.1 1.48 | 5.1 n/a | n/a n/a | n/a n/a | n/a 1.56 | 5.3 n/a | n/a n/a | n/a n/a | n/a 1.56 | 5.3 n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 853 | 2913 n/a | n/a n/a | n/a n/a | n/a 785 | 2681 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.4 | 4.8 n/a | n/a n/a | n/a n/a | n/a 1.38 | 4.7 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 803 | 2742 n/a | n/a n/a | n/a n/a | n/a 739 | 2524 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.36 | 4.6 n/a | n/a n/a | n/a n/a | n/a 1.34 | 4.6 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 698 | 2384 n/a | n/a n/a | n/a n/a | n/a 642 | 2192 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.18 | 4 n/a | n/a n/a | n/a n/a | n/a 1.17 | 4 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
