Last Update
29.04.2025
Configuration-Code SC18CL25
Code number 104L2123 104L2132
Type designation SC18CL SC18CL
Product status 现有型号 变体型号
Data Sheet Download Download
Setup
Polynomial SC18CL25 SC18CL25_452
Voltage range [V … V] 198 … 254 198 … 254
Frequency 50 50
High starting torque yes yes
Run capacitor yes yes
Motor speed [rpm] 2900 2900
Variable speed no no
Refrigerant R404A R452A
Specials Tropical use recommended no no
Heavy duty pull down capability yes yes
Mobile operation possible no no
Hot gas defrost capability yes yes
Cooling Required cooling Max. ambient temp.: 38°C F2 (fan 3m/s) Max. ambient temp.: 38°C F2 (fan 3m/s)

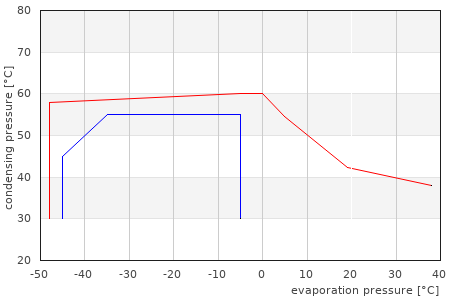

Operation limits diagram = short = continuous
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 539 | 1841 n/a | n/a n/a | n/a n/a | n/a 496 | 1694 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.86 | 2.9 n/a | n/a n/a | n/a n/a | n/a 0.85 | 2.9 n/a | n/a n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 801 | 2735 n/a | n/a n/a | n/a n/a | n/a 732 | 2500 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.21 | 4.1 n/a | n/a n/a | n/a n/a | n/a 1.19 | 4.1 n/a | n/a n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 436 | 1489 n/a | n/a n/a | n/a n/a | n/a 393 | 1342 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.97 | 3.3 n/a | n/a n/a | n/a n/a | n/a 0.95 | 3.2 n/a | n/a n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 607 | 2073 n/a | n/a n/a | n/a n/a | n/a 564 | 1926 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.93 | 3.2 n/a | n/a n/a | n/a n/a | n/a 0.93 | 3.2 n/a | n/a n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 949 | 3241 n/a | n/a n/a | n/a n/a | n/a 874 | 2985 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.51 | 5.2 n/a | n/a n/a | n/a n/a | n/a 1.49 | 5.1 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 899 | 3070 n/a | n/a n/a | n/a n/a | n/a 828 | 2828 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.56 | 5.3 n/a | n/a n/a | n/a n/a | n/a 1.53 | 5.2 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 770 | 2630 n/a | n/a n/a | n/a n/a | n/a 709 | 2421 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.27 | 4.3 n/a | n/a n/a | n/a n/a | n/a 1.26 | 4.3 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
