Last Update
29.04.2025
Configuration-Code SC18CLX2-NK_26
Code number 104L2185
Type designation SC18CLX.2
Product status 变体型号
Data Sheet Download
Setup
Polynomial SC18CLX2-NK_26
Voltage range [V … V] 187 … 254
Frequency 60
High starting torque yes
Run capacitor no
Motor speed [rpm] 3500
Variable speed no
Refrigerant R404A
Specials Tropical use recommended no
Heavy duty pull down capability yes
Mobile operation possible no
Hot gas defrost capability yes
Cooling Required cooling Max. ambient temp.: 38°C F2 (fan 3m/s)

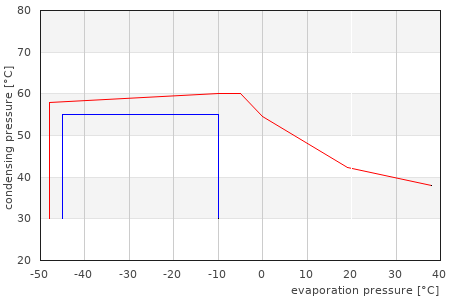

Operation limits diagram = short = continuous
CECOMAF CECOMAF ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 691 | 2360 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.98 | 3.3 n/a | n/a n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 1021 | 3487 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.37 | 4.7 n/a | n/a n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 522 | 1783 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.99 | 3.4 n/a | n/a n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 755 | 2578 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1 | 3.4 n/a | n/a n/a | n/a
AHAM AHAM ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 1092 | 3729 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.52 | 5.2 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 1020 | 3483 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.48 | 5.1 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 903 | 3084 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.29 | 4.4 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a
