配置码 SC18MFX25 |
|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 销售代码 | 104G8804 | ||||||||||||||||
| 种类描述 | SC18MFX | ||||||||||||||||
| 产品状态 | 现有型号 | ||||||||||||||||
| 规格书 | 下载 | 安装 | |||||||||||||||
| 多项的 | SC18MFX25 | SC18MFX26 | SC18MFX25_513 | SC18MFX26_513 | |||||||||||||
| 电压范围 | 187 … 254 | 187 … 254 | 187 … 254 | 187 … 254 | |||||||||||||
| 频率 | 50 | 60 | 50 | 60 | |||||||||||||
| 高启动力矩 | 是 | 是 | 是 | 是 | |||||||||||||
| 运行电容 | 否 | 是 | 否 | 是 | |||||||||||||
| 电机转速 | 2900 | 3500 | 2900 | 3500 | |||||||||||||
| 变频 | 否 | 否 | 否 | 否 | |||||||||||||
| 制冷剂 | R134a | R134a | R513A | R513A | |||||||||||||
| 特殊 | 建议热带地区使用 | 是 | 是 | 是 | 是 | ||||||||||||
| 重载下的拉温能力 | 是 | 是 | 是 | 是 | |||||||||||||
| 可移动操作 | 否 | 否 | 否 | 否 | |||||||||||||
| 热气除霜能力 | 是 | 是 | 是 | 是 | |||||||||||||
| 制冷量 | 冷却矩阵 | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | ||||||||||||

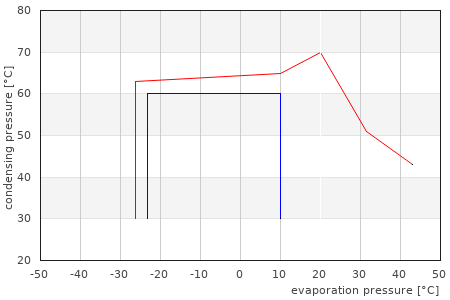

| 操作限制图 = 简短 = 持续的 |
|
|
|
|
|||||||||||||
| CECOMAF | CECOMAF | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 316 | 1079 | 709 | 2421 | n/a | n/a | n/a | n/a | 385 | 1315 | 851 | 2906 | n/a | n/a | n/a | n/a | 343 | 1171 | 736 | 2513 | n/a | n/a | n/a | n/a | 418 | 1427 | 884 | 3019 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 0.88 | 3 | 1.34 | 4.6 | n/a | n/a | n/a | n/a | 0.96 | 3.3 | 1.45 | 5 | n/a | n/a | n/a | n/a | 0.87 | 3 | 1.3 | 4.4 | n/a | n/a | n/a | n/a | 0.95 | 3.2 | 1.42 | 4.8 | n/a | n/a | |
| ASHRAE | ASHRAE | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 432 | 1475 | 916 | 3128 | n/a | n/a | n/a | n/a | 526 | 1796 | 1095 | 3739 | n/a | n/a | n/a | n/a | 479 | 1636 | 961 | 3282 | n/a | n/a | n/a | n/a | 583 | 1991 | 1150 | 3927 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.15 | 3.9 | 1.63 | 5.6 | n/a | n/a | n/a | n/a | 1.25 | 4.3 | 1.74 | 5.9 | n/a | n/a | n/a | n/a | 1.15 | 3.9 | 1.6 | 5.5 | n/a | n/a | n/a | n/a | 1.27 | 4.3 | 1.73 | 5.9 | n/a | n/a | |
| EN12900 | EN12900 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 210 | 717 | 794 | 2712 | n/a | n/a | n/a | n/a | 255 | 871 | 949 | 3241 | n/a | n/a | n/a | n/a | 237 | 809 | 827 | 2824 | n/a | n/a | n/a | n/a | 288 | 984 | 989 | 3377 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 0.75 | 2.6 | 1.59 | 5.4 | n/a | n/a | n/a | n/a | 0.87 | 3 | 1.71 | 5.8 | n/a | n/a | n/a | n/a | 0.76 | 2.6 | 1.55 | 5.3 | n/a | n/a | n/a | n/a | 0.89 | 3 | 1.68 | 5.7 | n/a | n/a | |
| ARI540 | ARI540 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 356 | 1216 | 867 | 2961 | n/a | n/a | n/a | n/a | 432 | 1475 | 1034 | 3531 | n/a | n/a | n/a | n/a | 373 | 1274 | 888 | 3033 | n/a | n/a | n/a | n/a | 453 | 1547 | 1061 | 3623 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 0.94 | 3.2 | 1.6 | 5.5 | n/a | n/a | n/a | n/a | 1.04 | 3.6 | 1.7 | 5.8 | n/a | n/a | n/a | n/a | 0.9 | 3.1 | 1.54 | 5.3 | n/a | n/a | n/a | n/a | 1.01 | 3.4 | 1.65 | 5.6 | n/a | n/a | |
| AHAM | AHAM | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 476 | 1626 | n/a | n/a | n/a | n/a | n/a | n/a | 575 | 1964 | n/a | n/a | n/a | n/a | n/a | n/a | 524 | 1789 | n/a | n/a | n/a | n/a | n/a | n/a | 633 | 2162 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.26 | 4.3 | n/a | n/a | n/a | n/a | n/a | n/a | 1.43 | 4.9 | n/a | n/a | n/a | n/a | n/a | n/a | 1.27 | 4.3 | n/a | n/a | n/a | n/a | n/a | n/a | 1.46 | 5 | n/a | n/a | n/a | n/a | |
| VSD_opt1 | VSD_opt1 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 441 | 1506 | n/a | n/a | n/a | n/a | n/a | n/a | 532 | 1817 | n/a | n/a | n/a | n/a | n/a | n/a | 485 | 1656 | n/a | n/a | n/a | n/a | n/a | n/a | 585 | 1998 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.22 | 4.2 | n/a | n/a | n/a | n/a | n/a | n/a | 1.41 | 4.8 | n/a | n/a | n/a | n/a | n/a | n/a | 1.22 | 4.2 | n/a | n/a | n/a | n/a | n/a | n/a | 1.44 | 4.9 | n/a | n/a | n/a | n/a | |
| VSD_opt2 | VSD_opt2 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 395 | 1349 | n/a | n/a | n/a | n/a | n/a | n/a | 479 | 1636 | n/a | n/a | n/a | n/a | n/a | n/a | 433 | 1479 | n/a | n/a | n/a | n/a | n/a | n/a | 524 | 1789 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.09 | 3.7 | n/a | n/a | n/a | n/a | n/a | n/a | 1.23 | 4.2 | n/a | n/a | n/a | n/a | n/a | n/a | 1.08 | 3.7 | n/a | n/a | n/a | n/a | n/a | n/a | 1.25 | 4.3 | n/a | n/a | n/a | n/a | |
| lowTemp | lowTemp | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
