配置码 SC21MFX25 |
|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 销售代码 | 104G8120 | ||||||||||||||||
| 种类描述 | SC21MFX | ||||||||||||||||
| 产品状态 | 现有型号 | ||||||||||||||||
| 规格书 | 下载 | 安装 | |||||||||||||||
| 多项的 | SC21MFX25 | SC21MFX25_RC | SC21MFX25_513 | SC21MFX25_YF | |||||||||||||
| 电压范围 | 187 … 254 | 187 … 254 | 187 … 254 | 198 … 254 | |||||||||||||
| 频率 | 50 | 50 | 50 | 50 | |||||||||||||
| 高启动力矩 | 是 | 是 | 是 | 是 | |||||||||||||
| 运行电容 | 否 | 是 | 否 | 否 | |||||||||||||
| 电机转速 | 2900 | 2900 | 2900 | 2900 | |||||||||||||
| 变频 | 否 | 否 | 否 | 否 | |||||||||||||
| 制冷剂 | R134a | R134a | R513A | R1234yf | |||||||||||||
| 特殊 | 建议热带地区使用 | 是 | 是 | 是 | 是 | ||||||||||||
| 重载下的拉温能力 | 是 | 是 | 是 | 是 | |||||||||||||
| 可移动操作 | 否 | 否 | 否 | 否 | |||||||||||||
| 热气除霜能力 | 是 | 是 | 是 | 是 | |||||||||||||
| 制冷量 | 冷却矩阵 | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | ||||||||||||

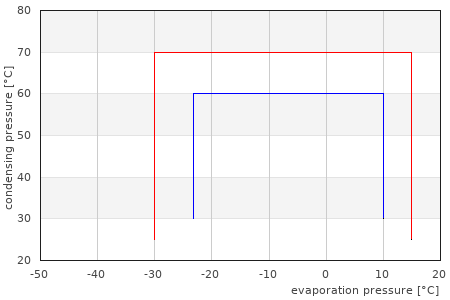

| 操作限制图 = 简短 = 持续的 |
|
|
|
|
|||||||||||||
| CECOMAF | CECOMAF | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 390 | 1332 | 840 | 2869 | n/a | n/a | n/a | n/a | 403 | 1376 | 866 | 2957 | n/a | n/a | n/a | n/a | 416 | 1421 | 867 | 2961 | n/a | n/a | n/a | n/a | 415 | 1417 | 836 | 2855 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 0.93 | 3.2 | 1.37 | 4.7 | n/a | n/a | n/a | n/a | 0.99 | 3.4 | 1.46 | 5 | n/a | n/a | n/a | n/a | 0.91 | 3.1 | 1.32 | 4.5 | n/a | n/a | n/a | n/a | 0.93 | 3.2 | 1.33 | 4.5 | n/a | n/a | |
| ASHRAE | ASHRAE | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 530 | 1810 | 1081 | 3692 | n/a | n/a | n/a | n/a | 546 | 1865 | 1114 | 3804 | n/a | n/a | n/a | n/a | 578 | 1974 | 1129 | 3856 | n/a | n/a | n/a | n/a | 584 | 1994 | 1092 | 3729 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.2 | 4.1 | 1.65 | 5.6 | n/a | n/a | n/a | n/a | 1.28 | 4.4 | 1.76 | 6 | n/a | n/a | n/a | n/a | 1.2 | 4.1 | 1.62 | 5.5 | n/a | n/a | n/a | n/a | 1.25 | 4.3 | 1.64 | 5.6 | n/a | n/a | |
| EN12900 | EN12900 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 274 | 936 | 942 | 3217 | n/a | n/a | n/a | n/a | 283 | 966 | 971 | 3316 | n/a | n/a | n/a | n/a | 303 | 1035 | 976 | 3333 | n/a | n/a | n/a | n/a | 309 | 1055 | 934 | 3190 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 0.92 | 3.1 | 1.62 | 5.5 | n/a | n/a | n/a | n/a | 0.98 | 3.3 | 1.73 | 5.9 | n/a | n/a | n/a | n/a | 0.94 | 3.2 | 1.58 | 5.4 | n/a | n/a | n/a | n/a | 0.95 | 3.2 | 1.57 | 5.4 | n/a | n/a | |
| ARI540 | ARI540 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 437 | 1492 | 1023 | 3494 | n/a | n/a | n/a | n/a | 451 | 1540 | 1054 | 3599 | n/a | n/a | n/a | n/a | 452 | 1544 | 1044 | 3565 | n/a | n/a | n/a | n/a | 438 | 1496 | 990 | 3381 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.01 | 3.4 | 1.61 | 5.5 | n/a | n/a | n/a | n/a | 1.08 | 3.7 | 1.72 | 5.9 | n/a | n/a | n/a | n/a | 0.96 | 3.3 | 1.55 | 5.3 | n/a | n/a | n/a | n/a | 0.95 | 3.2 | 1.54 | 5.3 | n/a | n/a | |
| AHAM | AHAM | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 583 | 1991 | n/a | n/a | n/a | n/a | n/a | n/a | 601 | 2052 | n/a | n/a | n/a | n/a | n/a | n/a | 635 | 2169 | n/a | n/a | n/a | n/a | n/a | n/a | 633 | 2162 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.38 | 4.7 | n/a | n/a | n/a | n/a | n/a | n/a | 1.47 | 5 | n/a | n/a | n/a | n/a | n/a | n/a | 1.38 | 4.7 | n/a | n/a | n/a | n/a | n/a | n/a | 1.42 | 4.8 | n/a | n/a | n/a | n/a | |
| VSD_opt1 | VSD_opt1 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 540 | 1844 | n/a | n/a | n/a | n/a | n/a | n/a | 557 | 1902 | n/a | n/a | n/a | n/a | n/a | n/a | 589 | 2011 | n/a | n/a | n/a | n/a | n/a | n/a | 585 | 1998 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.35 | 4.6 | n/a | n/a | n/a | n/a | n/a | n/a | 1.44 | 4.9 | n/a | n/a | n/a | n/a | n/a | n/a | 1.35 | 4.6 | n/a | n/a | n/a | n/a | n/a | n/a | 1.38 | 4.7 | n/a | n/a | n/a | n/a | |
| VSD_opt2 | VSD_opt2 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 487 | 1663 | n/a | n/a | n/a | n/a | n/a | n/a | 503 | 1718 | n/a | n/a | n/a | n/a | n/a | n/a | 528 | 1803 | n/a | n/a | n/a | n/a | n/a | n/a | 525 | 1793 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.2 | 4.1 | n/a | n/a | n/a | n/a | n/a | n/a | 1.28 | 4.4 | n/a | n/a | n/a | n/a | n/a | n/a | 1.19 | 4.1 | n/a | n/a | n/a | n/a | n/a | n/a | 1.22 | 4.2 | n/a | n/a | n/a | n/a | |
| lowTemp | lowTemp | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
