配置码 SCE18MNX_16RC-REV3 |
|||||
|---|---|---|---|---|---|
| 销售代码 | 104H7879 | ||||
| 种类描述 | SCE18MNX | ||||
| 产品状态 | 现有型号 | ||||
| 规格书 | 下载 | 安装 | |||
| 多项的 | SCE18MNX_16RC-REV3 | ||||
| 电压范围 | 103 … 127 | ||||
| 频率 | 60 | ||||
| 高启动力矩 | 是 | ||||
| 运行电容 | 是 | ||||
| 电机转速 | 3500 | ||||
| 变频 | 否 | ||||
| 制冷剂 | R290 | ||||
| 特殊 | 建议热带地区使用 | 否 | |||
| 重载下的拉温能力 | 是 | ||||
| 可移动操作 | 否 | ||||
| 热气除霜能力 | 是 | ||||
| 制冷量 | 冷却矩阵 | Max. ambient temp.: 43°C F2 (fan 3m/s) | |||

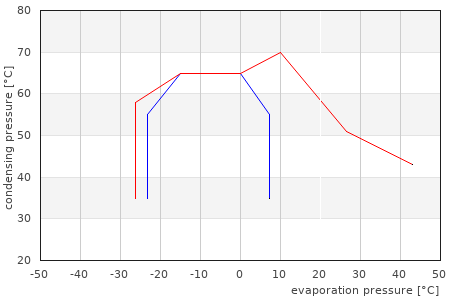

| 操作限制图 = 简短 = 持续的 |
|
||||
| CECOMAF | CECOMAF | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 658 | 2247 | 1421 | 4853 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.19 | 4.1 | 1.76 | 6 | n/a | n/a | |
| ASHRAE | ASHRAE | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 918 | 3135 | 1798 | 6140 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.56 | 5.3 | 2.13 | 7.3 | n/a | n/a | |
| EN12900 | EN12900 | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 478 | 1632 | 1598 | 5457 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.04 | 3.6 | 2.16 | 7.4 | n/a | n/a | |
| ARI540 | ARI540 | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 780 | 2664 | 1695 | 5788 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.31 | 4.5 | 2.12 | 7.2 | n/a | n/a | |
| AHAM | AHAM | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 1061 | 3623 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.79 | 6.1 | n/a | n/a | n/a | n/a | |
| VSD_opt1 | VSD_opt1 | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 961 | 3282 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.65 | 5.6 | n/a | n/a | n/a | n/a | |
| VSD_opt2 | VSD_opt2 | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 892 | 3046 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.55 | 5.3 | n/a | n/a | n/a | n/a | |
| lowTemp | lowTemp | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
