最近更新
27.05.2025
配置码 SCE18MNX_25-R3
销售代码 104H8849 104H8851
种类描述 SCE18MNX SCE18MNX
产品状态 现有型号 变体型号
规格书 下载 下载
安装
多项的 SCE18MNX_25-R3 SCE18MNX_25a-R3
电压范围 198 … 254 198 … 254
频率 50 50
高启动力矩 是 是
运行电容 否 否
电机转速 2900 2900
变频 否 否
制冷剂 R290 R290
特殊 建议热带地区使用 否 否
重载下的拉温能力 是 是
可移动操作 否 否
热气除霜能力 是 是
制冷量 冷却矩阵 Max. ambient temp.: 38°C F2 (fan 3m/s) Max. ambient temp.: 43°C F2 (fan 3m/s)

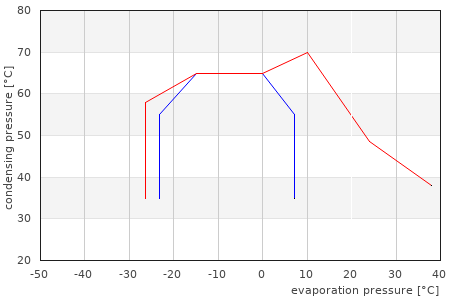

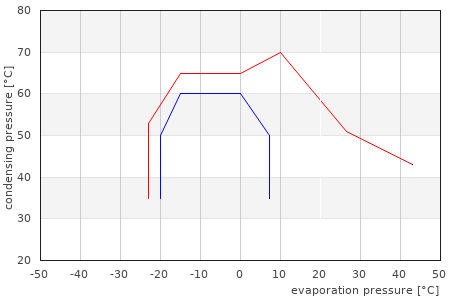

操作限制图 = 简短 = 持续的
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 600 | 2049 1190 | 4064 n/a | n/a n/a | n/a n/a | n/a 1190 | 4064 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.12 | 3.8 1.64 | 5.6 n/a | n/a n/a | n/a n/a | n/a 1.64 | 5.6 n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 808 | 2759 1503 | 5133 n/a | n/a n/a | n/a n/a | n/a 1503 | 5133 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.45 | 5 1.97 | 6.7 n/a | n/a n/a | n/a n/a | n/a 1.97 | 6.7 n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 488 | 1667 1321 | 4511 n/a | n/a n/a | n/a n/a | n/a 1321 | 4511 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.11 | 3.8 1.98 | 6.8 n/a | n/a n/a | n/a n/a | n/a 1.98 | 6.8 n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 662 | 2261 1405 | 4798 n/a | n/a n/a | n/a n/a | n/a 1405 | 4798 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.22 | 4.2 1.94 | 6.6 n/a | n/a n/a | n/a n/a | n/a 1.94 | 6.6 n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 887 | 3029 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.71 | 5.8 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 832 | 2841 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.71 | 5.8 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a 752 | 2568 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.48 | 5.1 n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP
制冷量 [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
