配置码 SLVE18CN-25-2200-R3 |
|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 销售代码 | 104H8841 | 104H8845 | 104H8846 | ||||||||||||||
| 种类描述 | SLVE18CN | SLVE18CN | SLVE18CN | ||||||||||||||
| 产品状态 | 变体型号 | 变体型号 | 现有型号 | ||||||||||||||
| 规格书 | 下载 | 下载 | 下载 | 安装 | |||||||||||||
| 多项的 | SLVE18CN-25-2200-R3 | SLVE18CN-25-2500-R3 | SLVE18CN-25-3000-R3 | SLVE18CN-25-4500-R3 | |||||||||||||
| 电压范围 | 187 … 254 | 187 … 254 | 187 … 254 | 187 … 254 | |||||||||||||
| 频率 | 50 | 50 | 50 | 50 | |||||||||||||
| 高启动力矩 | 是 | 是 | 是 | 是 | |||||||||||||
| 运行电容 | 否 | 否 | 否 | 否 | |||||||||||||
| 电机转速 | 2200 | 2500 | 3000 | 4500 | |||||||||||||
| 变频 | 是 | 是 | 是 | 是 | |||||||||||||
| 制冷剂 | R290 | R290 | R290 | R290 | |||||||||||||
| 特殊 | 建议热带地区使用 | 是 | 是 | 是 | 是 | ||||||||||||
| 重载下的拉温能力 | 是 | 是 | 是 | 是 | |||||||||||||
| 可移动操作 | 否 | 否 | 否 | 否 | |||||||||||||
| 热气除霜能力 | 是 | 是 | 是 | 是 | |||||||||||||
| 制冷量 | 冷却矩阵 | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | ||||||||||||

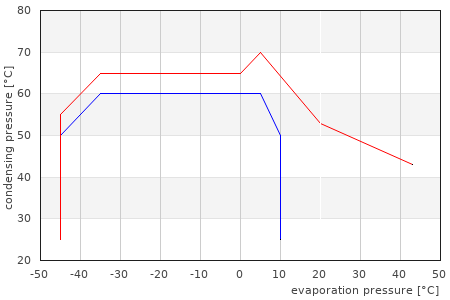

| 操作限制图 = 简短 = 持续的 |
|
|
|
|
|||||||||||||
| CECOMAF | CECOMAF | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 497 | 1697 | 954 | 3258 | n/a | n/a | n/a | n/a | 558 | 1906 | 1072 | 3661 | n/a | n/a | n/a | n/a | 661 | 2257 | 1270 | 4337 | n/a | n/a | n/a | n/a | 889 | 3036 | 1708 | 5833 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.34 | 4.6 | 1.85 | 6.3 | n/a | n/a | n/a | n/a | 1.35 | 4.6 | 1.86 | 6.4 | n/a | n/a | n/a | n/a | 1.36 | 4.6 | 1.88 | 6.4 | n/a | n/a | n/a | n/a | 1.29 | 4.4 | 1.79 | 6.1 | n/a | n/a | |
| ASHRAE | ASHRAE | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 667 | 2278 | 1201 | 4101 | n/a | n/a | n/a | n/a | 749 | 2558 | 1350 | 4610 | n/a | n/a | n/a | n/a | 888 | 3033 | 1600 | 5464 | n/a | n/a | n/a | n/a | 1194 | 4078 | 2151 | 7346 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.73 | 5.9 | 2.21 | 7.5 | n/a | n/a | n/a | n/a | 1.74 | 5.9 | 2.23 | 7.6 | n/a | n/a | n/a | n/a | 1.76 | 6 | 2.25 | 7.7 | n/a | n/a | n/a | n/a | 1.67 | 5.7 | 2.14 | 7.3 | n/a | n/a | |
| EN12900 | EN12900 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 362 | 1236 | 1045 | 3569 | n/a | n/a | n/a | n/a | 406 | 1386 | 1174 | 4009 | n/a | n/a | n/a | n/a | 481 | 1643 | 1392 | 4754 | n/a | n/a | n/a | n/a | 647 | 2210 | 1871 | 6389 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.39 | 4.7 | 2.26 | 7.7 | n/a | n/a | n/a | n/a | 1.38 | 4.7 | 2.27 | 7.8 | n/a | n/a | n/a | n/a | 1.41 | 4.8 | 2.29 | 7.8 | n/a | n/a | n/a | n/a | 1.34 | 4.6 | 2.18 | 7.4 | n/a | n/a | |
| ARI540 | ARI540 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 538 | 1837 | 1117 | 3815 | n/a | n/a | n/a | n/a | 605 | 2066 | 1254 | 4282 | n/a | n/a | n/a | n/a | 717 | 2449 | 1487 | 5078 | n/a | n/a | n/a | n/a | 963 | 3289 | 1999 | 6827 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.45 | 5 | 2.19 | 7.5 | n/a | n/a | n/a | n/a | 1.46 | 5 | 2.21 | 7.5 | n/a | n/a | n/a | n/a | 1.48 | 5.1 | 2.23 | 7.6 | n/a | n/a | n/a | n/a | 1.4 | 4.8 | 2.12 | 7.2 | n/a | n/a | |
| AHAM | AHAM | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 707 | 2414 | n/a | n/a | n/a | n/a | n/a | n/a | 794 | 2712 | n/a | n/a | n/a | n/a | n/a | n/a | 941 | 3214 | n/a | n/a | n/a | n/a | n/a | n/a | 1265 | 4320 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 2.03 | 6.9 | n/a | n/a | n/a | n/a | n/a | n/a | 2.03 | 6.9 | n/a | n/a | n/a | n/a | n/a | n/a | 2.06 | 7 | n/a | n/a | n/a | n/a | n/a | n/a | 1.96 | 6.7 | n/a | n/a | n/a | n/a | |
| VSD_opt1 | VSD_opt1 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 651 | 2223 | n/a | n/a | n/a | n/a | n/a | n/a | 732 | 2500 | n/a | n/a | n/a | n/a | n/a | n/a | 867 | 2961 | n/a | n/a | n/a | n/a | n/a | n/a | 1166 | 3982 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 2.04 | 7 | n/a | n/a | n/a | n/a | n/a | n/a | 2.05 | 7 | n/a | n/a | n/a | n/a | n/a | n/a | 2.07 | 7.1 | n/a | n/a | n/a | n/a | n/a | n/a | 1.97 | 6.7 | n/a | n/a | n/a | n/a | |
| VSD_opt2 | VSD_opt2 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 600 | 2049 | n/a | n/a | n/a | n/a | n/a | n/a | 674 | 2302 | n/a | n/a | n/a | n/a | n/a | n/a | 799 | 2729 | n/a | n/a | n/a | n/a | n/a | n/a | 1075 | 3671 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.77 | 6 | n/a | n/a | n/a | n/a | n/a | n/a | 1.77 | 6 | n/a | n/a | n/a | n/a | n/a | n/a | 1.79 | 6.1 | n/a | n/a | n/a | n/a | n/a | n/a | 1.71 | 5.8 | n/a | n/a | n/a | n/a | |
| lowTemp | lowTemp | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
