配置码 SC21G25 |
|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 销售代码 | 104G8124 | 104G8140 | 104G8143 | 104G8145 | 104G8148 | 104G8149 | |||||||||||
| 种类描述 | SC21G | SC21G | SC21G | SC21G | SC21G | SC21G | |||||||||||
| 产品状态 | 变体型号 | 现有型号 | 变体型号 | 变体型号 | 变体型号 | 现有型号 | |||||||||||
| 规格书 | 下载 | 下载 | 下载 | 下载 | 下载 | 下载 | 安装 | ||||||||||
| 多项的 | SC21G25 | SC21G26 | SC21G25_513 | SC21G26_513 | |||||||||||||
| 电压范围 | 187 … 254 | 198 … 254 | 187 … 254 | 198 … 253 | |||||||||||||
| 频率 | 50 | 60 | 50 | 60 | |||||||||||||
| 高启动力矩 | 是 | 是 | 是 | 是 | |||||||||||||
| 运行电容 | 是 | 是 | 是 | 是 | |||||||||||||
| 电机转速 | 2900 | 3500 | 2900 | 3500 | |||||||||||||
| 变频 | 否 | 否 | 否 | 否 | |||||||||||||
| 制冷剂 | R134a | R134a | R513A | R513A | |||||||||||||
| 特殊 | 建议热带地区使用 | 是 | 否 | 是 | 否 | ||||||||||||
| 重载下的拉温能力 | 是 | 是 | 是 | 是 | |||||||||||||
| 可移动操作 | 否 | 否 | 否 | 否 | |||||||||||||
| 热气除霜能力 | 是 | 是 | 是 | 是 | |||||||||||||
| 制冷量 | 冷却矩阵 | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | Max. ambient temp.: 43°C F2 (fan 3m/s) | ||||||||||||

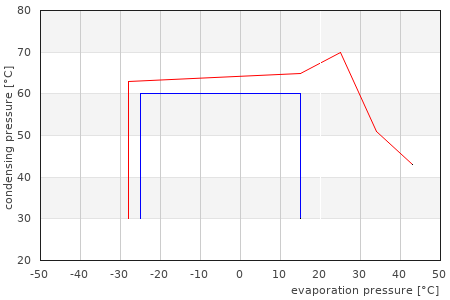

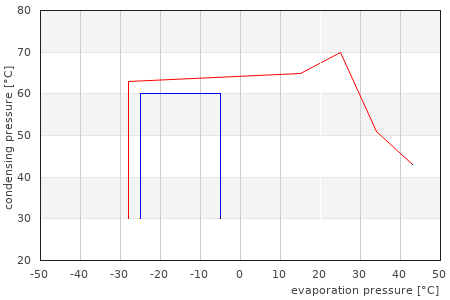

| 操作限制图 = 简短 = 持续的 |
|
|
|
|
|||||||||||||
| CECOMAF | CECOMAF | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 333 | 1137 | 793 | 2708 | 1561 | 5331 | n/a | n/a | 303 | 1035 | n/a | n/a | n/a | n/a | n/a | n/a | 361 | 1233 | 823 | 2811 | 1580 | 5396 | n/a | n/a | 329 | 1124 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 0.96 | 3.3 | 1.39 | 4.7 | 2.04 | 7 | n/a | n/a | 0.8 | 2.7 | n/a | n/a | n/a | n/a | n/a | n/a | 0.94 | 3.2 | 1.35 | 4.6 | 1.96 | 6.7 | n/a | n/a | 0.8 | 2.7 | n/a | n/a | n/a | n/a | |
| ASHRAE | ASHRAE | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 459 | 1567 | 1039 | 3548 | 1888 | 6448 | n/a | n/a | 443 | 1513 | n/a | n/a | n/a | n/a | n/a | n/a | 509 | 1738 | 1090 | 3722 | 1940 | 6625 | n/a | n/a | 491 | 1677 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.22 | 4.2 | 1.68 | 5.7 | 2.4 | 8.2 | n/a | n/a | 1.07 | 3.7 | n/a | n/a | n/a | n/a | n/a | n/a | 1.24 | 4.2 | 1.66 | 5.7 | 2.35 | 8 | n/a | n/a | 1.09 | 3.7 | n/a | n/a | n/a | n/a | |
| EN12900 | EN12900 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 222 | 758 | 933 | 3186 | 1625 | 5549 | n/a | n/a | 232 | 792 | n/a | n/a | n/a | n/a | n/a | n/a | 249 | 850 | 971 | 3316 | 1635 | 5584 | n/a | n/a | 262 | 895 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 0.88 | 3 | 1.64 | 5.6 | 2.16 | 7.4 | n/a | n/a | 0.82 | 2.8 | n/a | n/a | n/a | n/a | n/a | n/a | 0.89 | 3 | 1.59 | 5.4 | 2.07 | 7.1 | n/a | n/a | 0.84 | 2.9 | n/a | n/a | n/a | n/a | |
| ARI540 | ARI540 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 396 | 1352 | 1010 | 3449 | 1625 | 5549 | n/a | n/a | 404 | 1380 | n/a | n/a | n/a | n/a | n/a | n/a | 415 | 1417 | 1035 | 3535 | 1610 | 5498 | n/a | n/a | 424 | 1448 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1 | 3.4 | 1.63 | 5.6 | 2.06 | 7 | n/a | n/a | 0.94 | 3.2 | n/a | n/a | n/a | n/a | n/a | n/a | 0.96 | 3.3 | 1.57 | 5.4 | 1.95 | 6.7 | n/a | n/a | 0.9 | 3.1 | n/a | n/a | n/a | n/a | |
| AHAM | AHAM | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 542 | 1851 | n/a | n/a | n/a | n/a | n/a | n/a | 581 | 1984 | n/a | n/a | n/a | n/a | n/a | n/a | 597 | 2039 | n/a | n/a | n/a | n/a | n/a | n/a | 640 | 2186 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.38 | 4.7 | n/a | n/a | n/a | n/a | n/a | n/a | 1.34 | 4.6 | n/a | n/a | n/a | n/a | n/a | n/a | 1.4 | 4.8 | n/a | n/a | n/a | n/a | n/a | n/a | 1.37 | 4.7 | n/a | n/a | n/a | n/a | |
| VSD_opt1 | VSD_opt1 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 504 | 1721 | n/a | n/a | n/a | n/a | n/a | n/a | 544 | 1858 | n/a | n/a | n/a | n/a | n/a | n/a | 554 | 1892 | n/a | n/a | n/a | n/a | n/a | n/a | 598 | 2042 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.42 | 4.8 | n/a | n/a | n/a | n/a | n/a | n/a | 1.36 | 4.6 | n/a | n/a | n/a | n/a | n/a | n/a | 1.45 | 5 | n/a | n/a | n/a | n/a | n/a | n/a | 1.39 | 4.7 | n/a | n/a | n/a | n/a | |
| VSD_opt2 | VSD_opt2 | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | 444 | 1516 | n/a | n/a | n/a | n/a | n/a | n/a | 475 | 1622 | n/a | n/a | n/a | n/a | n/a | n/a | 487 | 1663 | n/a | n/a | n/a | n/a | n/a | n/a | 520 | 1776 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.18 | 4 | n/a | n/a | n/a | n/a | n/a | n/a | 1.15 | 3.9 | n/a | n/a | n/a | n/a | n/a | n/a | 1.19 | 4.1 | n/a | n/a | n/a | n/a | n/a | n/a | 1.16 | 4 | n/a | n/a | n/a | n/a | |
| lowTemp | lowTemp | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP | ULT | LBP | MBP | HBP |
| 制冷量 [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
