NLV/E-CN Compressors for R290 (Propane)
Secop’s variable speed NLV/E-CN propane compressor solution provides perfect cooling efficiency in a single unit, tailor-made features, and easy integration while ensuring considerable energy savings.
-
Data Sheets
-
Technical Details NLV/E
-
NextGen Controllers Video
Get in Touch with Us for a Specific Request
Secop Variable-Speed Propane Compressors for Light Commercial Refrigeration
NLV-CN or NLVE-CN compressors are the right choice if you are looking for high efficiency and a green solution using the environmentally friendly refrigerant propane (R290) with a low global warming potential (GWP 3).
While the Multipurpose (MP) controllers feature a high IP54 protection rating, the Extended (XT) controllers offer IP43 protection, and the Core Functions (CF) controllers are housed in enclosures with an IP31 protection rating. All controllers allow easy integration through speed control via Adaptive Energy Optimization (AEO), frequency signals, or serial communication.
Only the variable-speed design can obtain energy savings of up to 40% when compared to fixed-speed compressors in on/off operation mode.
MP and XT Multi-Voltage controllers (105N4960, 105N4962, 105N4964, 105N4966 and 105N4866) with their wide operating voltage range can be used for all voltages and frequencies globally.
NLV and NLVE Compressors
Compressors for MP and XT Controllers
- 105H7865 NLV8.0CN compressor with metric connectors
- 105H7866 NLV8.0CN compressor with inch connectors
- 105H7065 NLV10CN compressor with metric connectors
- 105H7066 NLV10CN compressor with inch connectors
- 105H7365 NLV12.6CN compressor with metric connectors
- 105H7366 NLV12.6CN compressor with inch connectors
Compressors for MP Controllers
- 105H7520 NLV15CN compressor with metric connectors
- 105H7522 NLV15CN compressor with inch connectors
Compressors for CF Controllers
- 105H7813 NLV8.0CN compressor with metric connectors (CCC Certified)
- 105H7013 NLV10CN compressor with metric connectors (CCC Certified)
- 105H7363 NLV12.6CN compressor with metric connectors (CCC Certified)
- 105H7374 NLVE13CN compressor with inch connectors (UL Recognized)
-

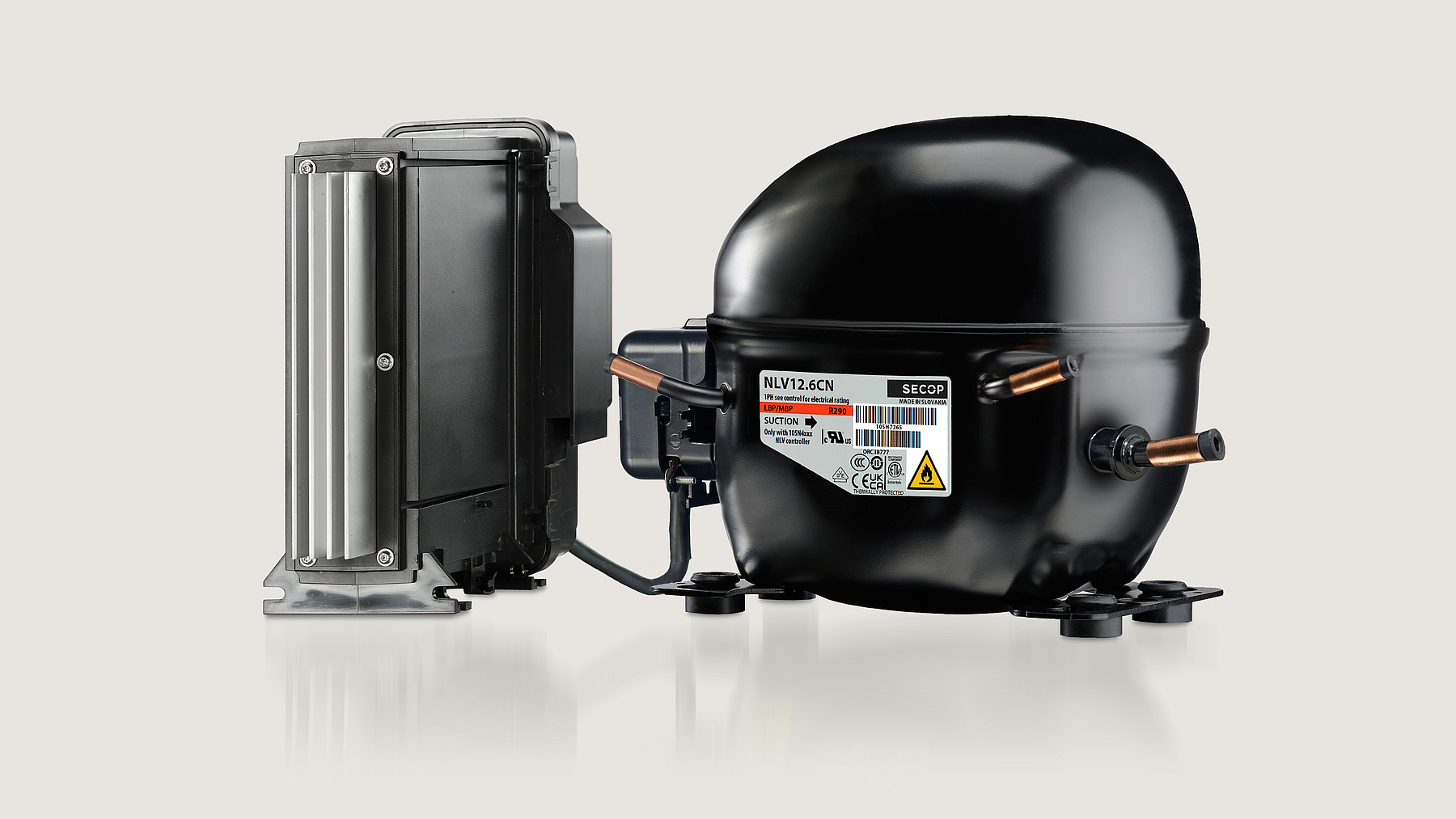

NLV Compressor with MP Controller -

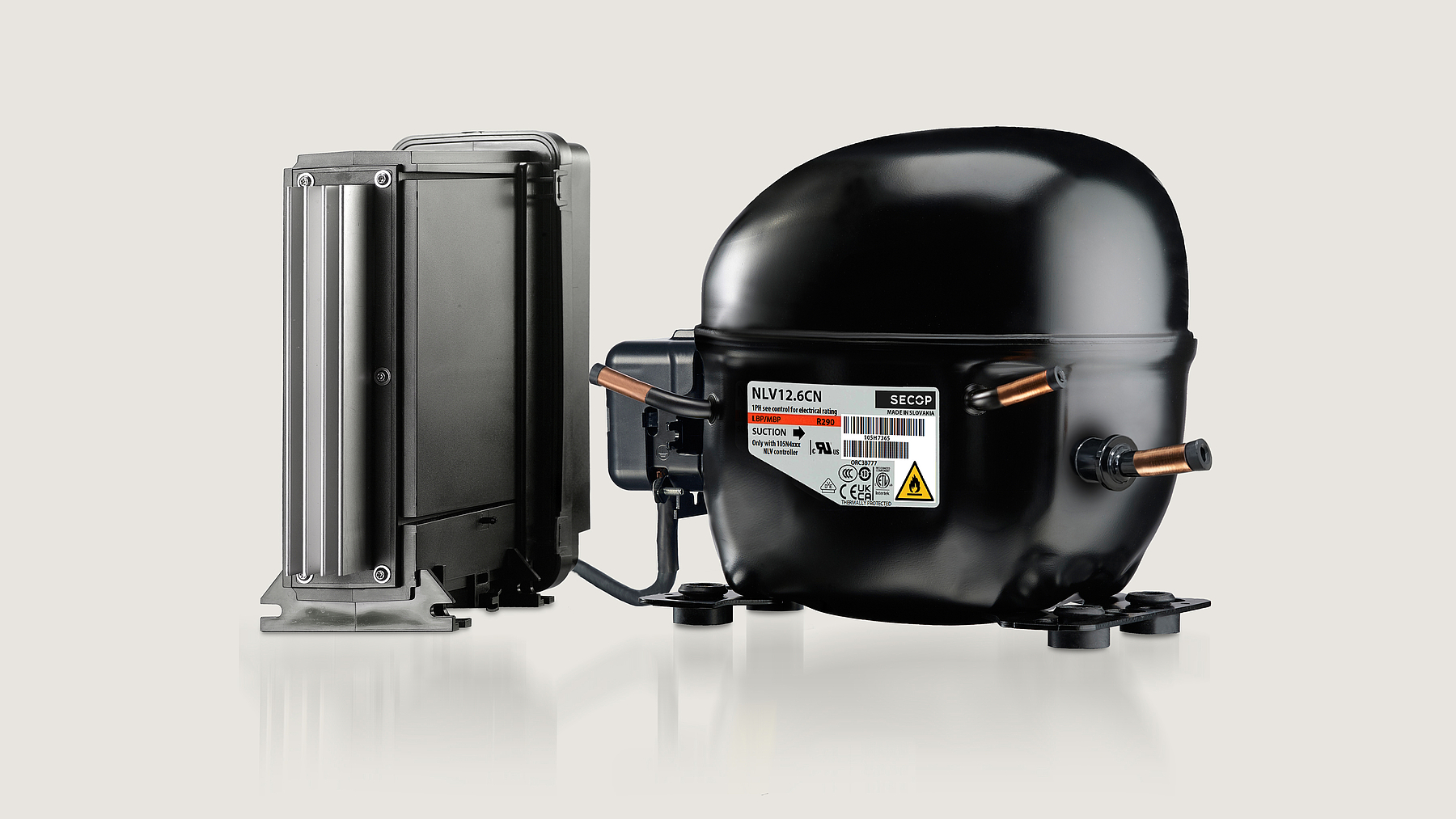

NLV Compressor with XT Controller -

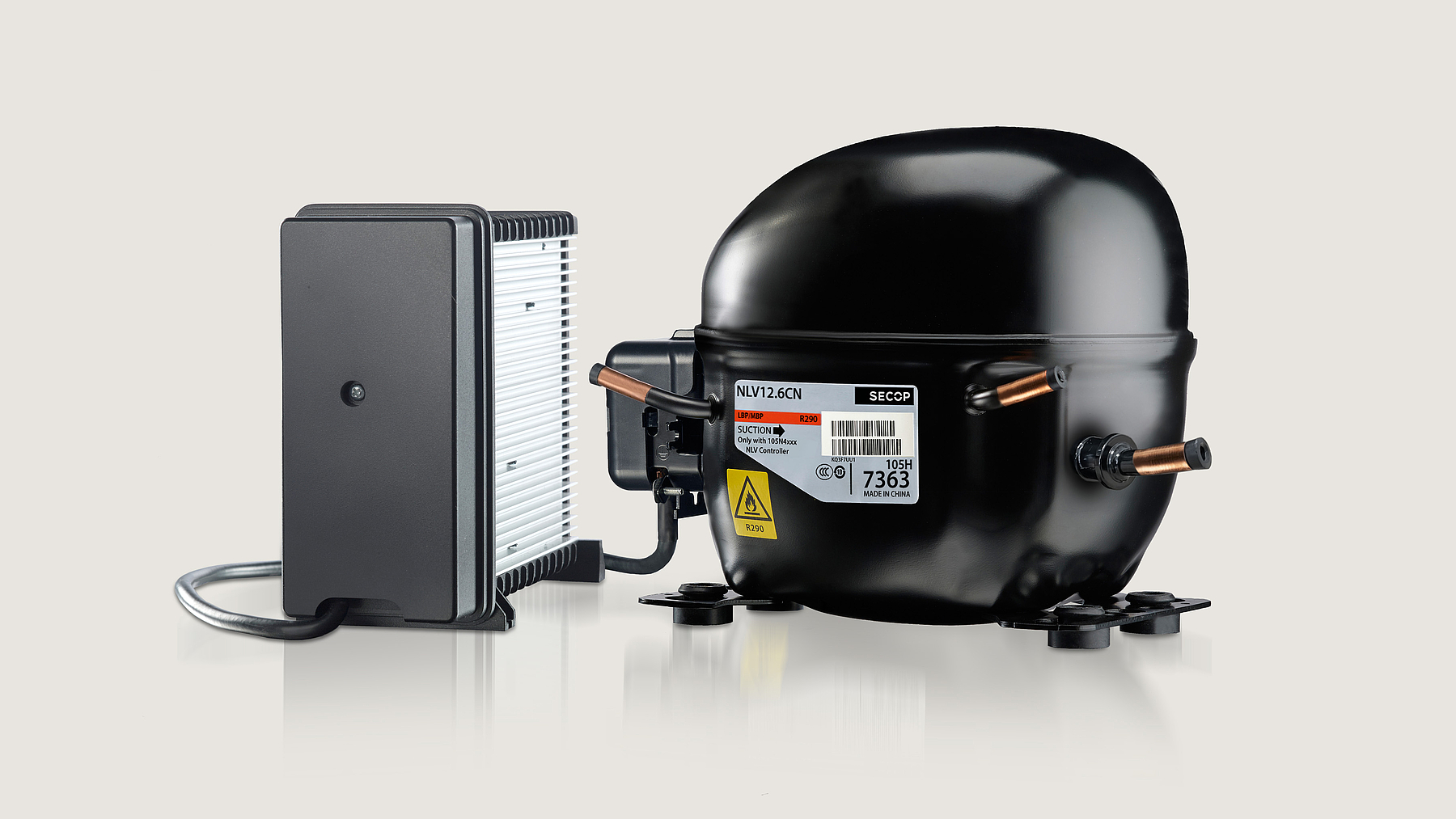

NLV Compressor with CF Controller
Controllers for NLV and NLVE Compressors
Multipurpose (MP) Controllers
NLV8.0CN, NLV10CN, and NLV12.6CN
- 105N4910 Standard controller, 220-240 V, 50/60 Hz
- 105N4960 Multi-Voltage controller, 100-240 V, 50/60 Hz
- 105N4962 Multi-Voltage controller (US GFCI-Conformity), 100-240 V, 50/60 Hz
NLV15CN
- 105N4914 Standard controller, 220-240 V, 50/60 Hz
- 105N4964 Multi-Voltage controller, 100-240 V, 50/60 Hz
- 105N4966 Multi-Voltage controller (US GFCI-Conformity), 100-240 V, 50/60 Hz
Extended (XT) Controllers
NLV8.0CN, NLV10CN, and NLV12.6CN
- 105N4866 Multi-Voltage controller, 100-240 V, 50/60 Hz
Core Functions (CF) Controllers
NLV8.0CN, NLV10CN, and NLV12.6CN – CCC Certified
- 105N4120 Standard controller, 220-240 V, 50/60 Hz
NLVE13CN – UL Recognized
- 105N4100 Standard controller, 115-127 V, 50/60 Hz
-
Multipurpose (MP) Controller -
Multipurpose (MP) Controller -
Extended (XT) Controller -
Extended (XT) Controller -
Core Functions (CF) Controller -
Core Functions (CF) Controller
Features and Benefits in Detail
Secop's NLV/NLVE Variable-Speed Solution Offers
- Energy savings of up to 40% compared to a fixed-speed R404A compressor
- Intelligent variable-speed drive controllers with automatic input detection
- NLV/NLVE compressors are suitable for both LBP and MBP applications
- All controllers provide a high starting torque and can start against a high differential pressure
NLV with MP (Multipurpose) Controller
- Able to operate continuously inside an evaporating temp. range from -40 to +7.2°C
- 2 additional relay outputs for case control
- 2–speed defrost control
- Easy customization via Tool4Cool®
- IP54 housing
NLV with XT (Extended) Controller
- Able to operate continuously inside an evaporating temp. range from -40 to +7.2°C
- 8 additional relay outputs for case control
- 2–speed defrost control
- 4 temperature sensors and 4 digital/analog I/O
- IP43 housing
- Easy customization via Tool4Cool®
NLV/NLVE with CF (Core Functions) Controller
- Able to operate continuously inside an evaporating temperature range from -40 to 0°C
- 2–speed defrost control
- An extra input that can be connected to the defrost relay output of the temperature controller
- IP31 housing
-

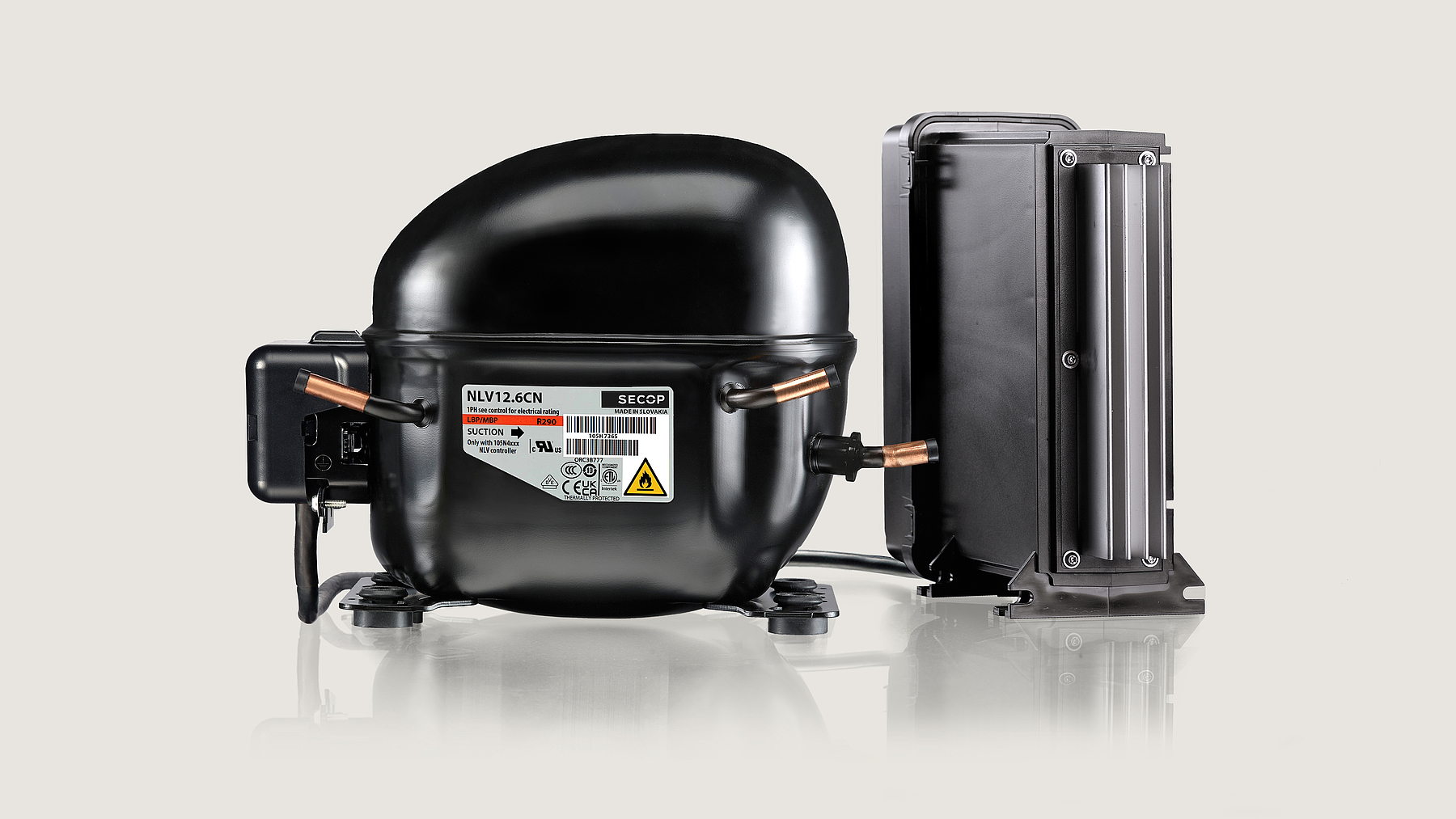

NLV Compressor with MP/XT Controller -

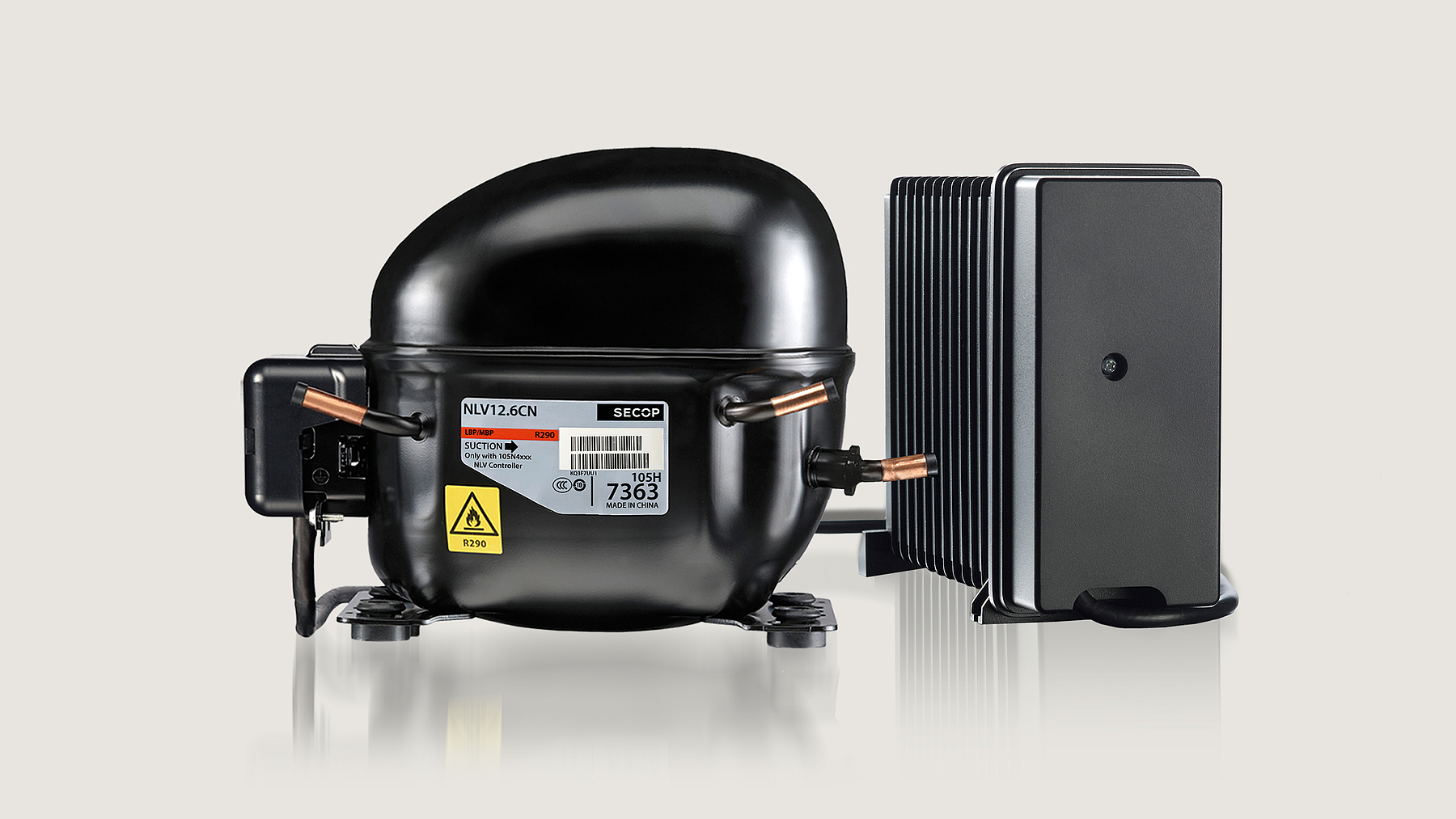

NLV Compressor with CF Controller
Chillventa 2024 Interview
Thies Möller, our Product Manager for Electronic Controllers, presents the latest Variable-Speed Solutions showcased at Chillventa 2024. Highlights include the NLV15CN, a durable propane compressor, and a new range of electronic controllers: the Basic (BC), the Multipurpose (MP), and the top-tier Extended (XT). With this comprehensive offering, Secop aims to meet the diverse needs of customers in the Food Retail, Food Service, and Medical markets. We are driving the shift toward high-efficiency solutions. Secop – Sustainable Cooling Solutions!
Technical Literature
-
NLV-CN Compressors, R290, 100-240 V, 220-240 V, 50/60 Hz, Multipurpose Controllers
Download (657.14 KB) -
NLV-CN Compressors, R290, 100-240 V, 50/60 Hz, Extended Controllers
Download (672.34 KB) -
NLV-CN Compressors, R290, 220-240 V, 50/60 Hz, Core Functions Controllers, CCC Certified
Download (444.42 KB) -
NLVE-CN Compressors, R290, 115-127 V, 50/60 Hz, Core Functions Controllers, UL Recognized
Download (422.41 KB) -
SLVE/NLV-CN Compressors – 105N4910 (220-240 V, 50/60 Hz), 105N4960/64 (100-240 V, 50/60 Hz), 105N4962/66/72 (100-240 V, 50/60 Hz, US GFCI-Conformity), 105N4932 (100-240 V, 50/60 Hz, US GFCI-Conformity) Multipurpose Controllers
Download (6.27 MB) -
NLV-CN Compressors – 105N4866 (100-240 V, 50/60 Hz) Extended Controllers
Download (21.58 MB) -
Next-Generation Modular Electronic Controllers
Download (290.46 KB)
