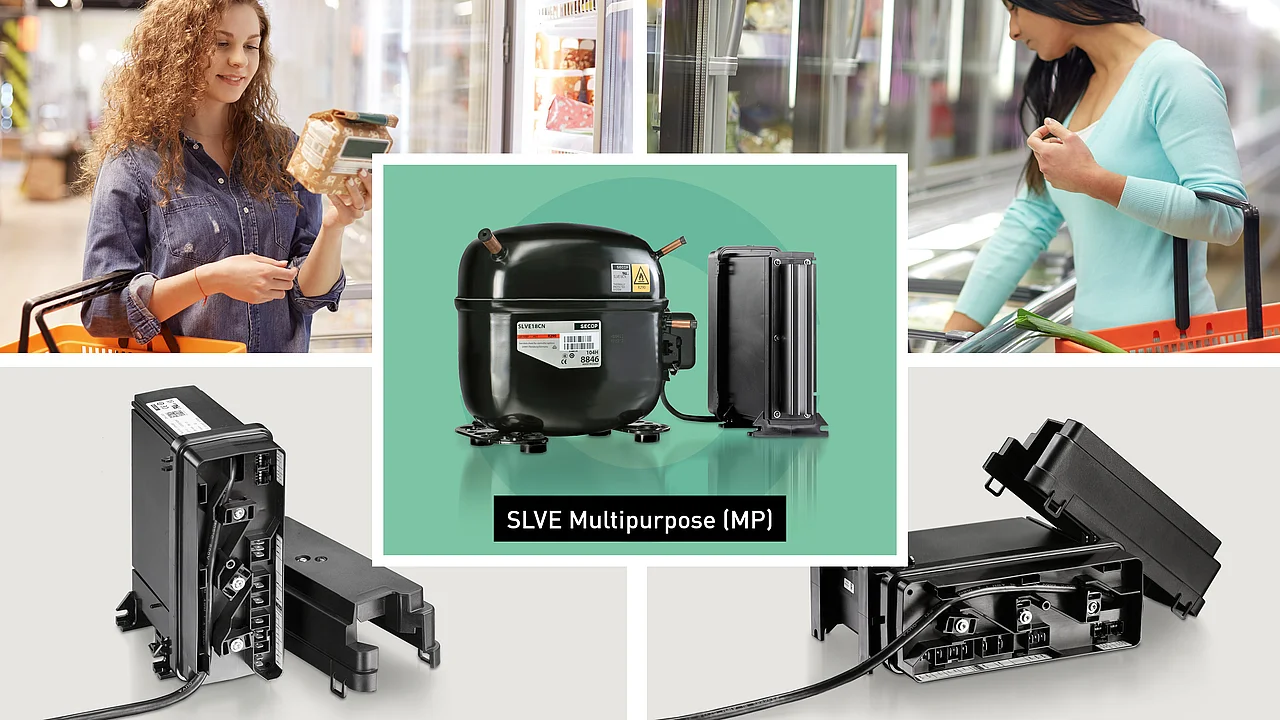

SLVE18CN with Multipurpose Controller
SLVE-CN MP · R290 · 104H8846 + 105N4932
The SLVE18CN is the most powerful propane variable-speed compressor in the Secop range, passing 2 kW of cooling capacity at a COP of up to 2.25 at ASHRAE MBP. The Multipurpose controller runs on any voltage worldwide, offers US GFCI conformity and comes in a fire-proof IP54 housing with coated PCB and galvanically isolated I/O.
Target applications: food retail display cases, food storage cabinets, and other commercial refrigeration.
Technical Data
- Refrigerant: R290 (propane)
- Application: LBP / MBP
- Speed range: 2,200 - 4,500 rpm
- Capacity Q0 (ASHRAE MBP): 1,199 W at 2,200 rpm | 2,146 W at 4,500 rpm
- COP (ASHRAE MBP): 2.21 to 2.25 W/W
- Capacity Q0 (ASHRAE LBP): 666 W to 1,192 W
- Evaporating temp. range: -45 to 10 °C
- Electronic unit: Multipurpose (MP) multi-voltage, 105N4932
- Input voltage: 100-240 V, 50/60 Hz (range 90-270 V)
- Protection class: IP54
- Approvals: VDE, CCC, UL, CB · PFC to EN 61000-3-2
- Displacement: 17.69 cm³
