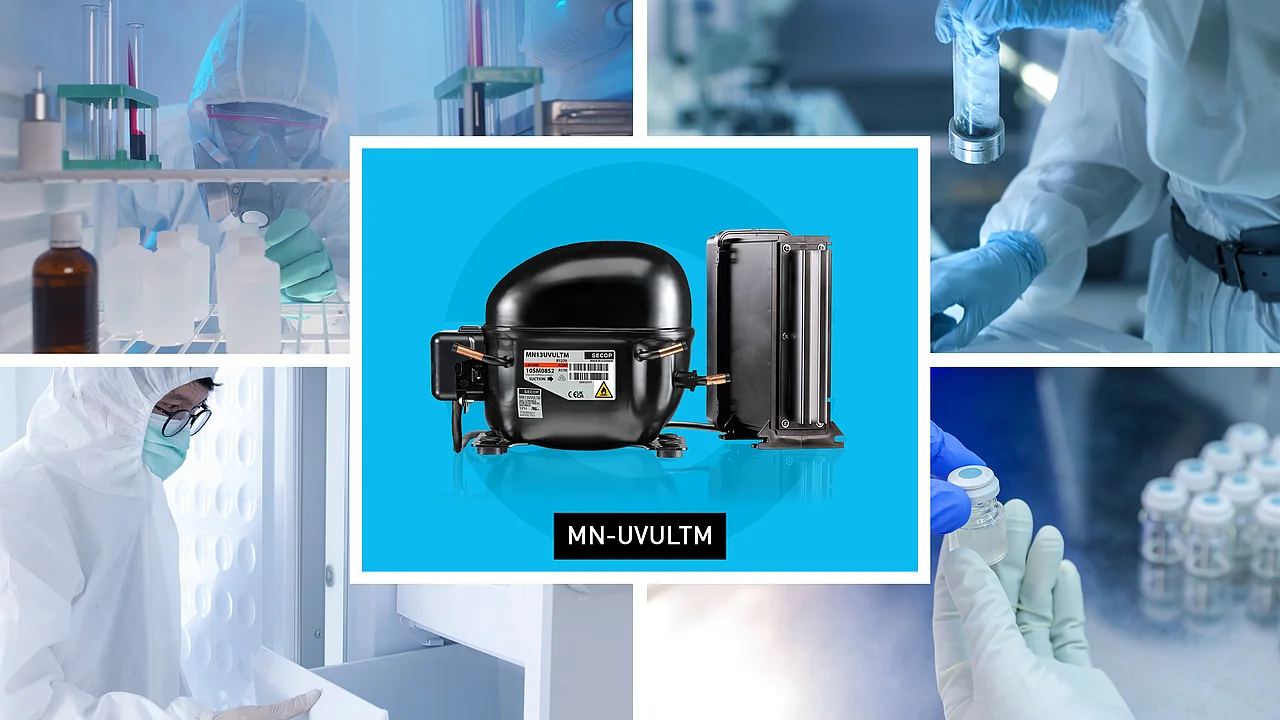

MN13UVULTM with Multipurpose and Medical Controllers
Medical ULT · R170, R290, R1270 · 105M0852
The MN13UVULTM is a variable-speed compressor for ultra-low temperature freezers, running R170 (ethane) at evaporating temperatures down to -95 °C. Its multi-voltage controller covers 100 to 240 V worldwide and modulates speed between 2,000 and 4,500 rpm to manage pull down and high ambient load without cycling stress on the samples.
Target applications: ultra-low temperature freezers, biomedical freezers, and cascade systems for the medical cold chain.
Technical Data
- Refrigerant: R170 (ethane), R290 (propane), R1270 (propene)
- Application: ULT with R170 · LBP / MBP with R290
- Cooling capacity (ULT): 472 W at pe -85 °C, pc -35 °C, 4,500 rpm
- COP (ULT): 1.83 W/W at pe -85 °C, pc -35 °C, 4,500 rpm
- Speed range: 2,000 - 4,500 rpm
- Electronic units: 105N4962 (MP multi-voltage GFCI) · 105N4880 (MED Multi-Voltage - under development)
- Input voltage: 100-240 V, 50/60 Hz (range 90-150 / 180-270 V)
- Protection class: IP54
- Approvals: UL, VDE, CCC
- Displacement: 12.55 cm³
