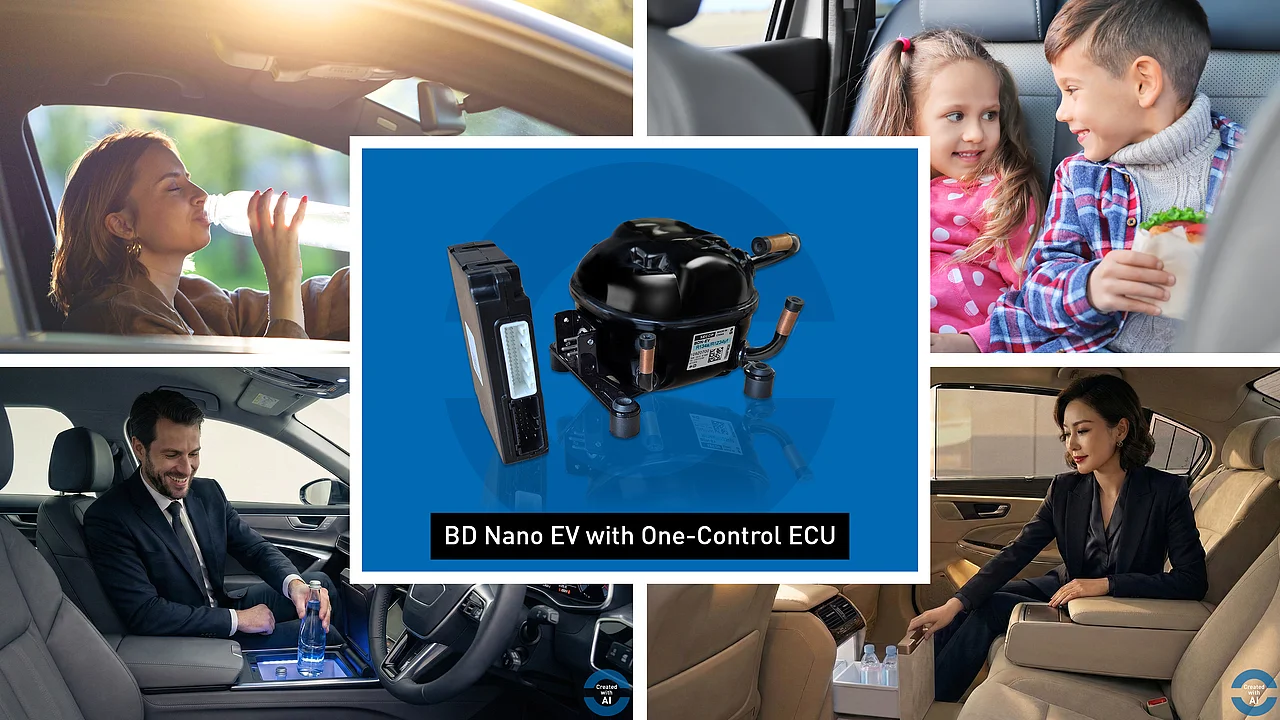

BD Nano EV with One-Control ECU
BDN-EV · R134a, R1234yf · 109Z0700 + 101N32xx
One-Control runs the compressor and the refrigeration unit from a single electronic unit. One board instead of two takes cost out of the bill of materials and gives back space inside an installation where every millimeter is already committed.
Target applications: refrigerators and center consoles in electric passenger cars.
Technical Data
- Refrigerant: R134a, R1234yf
- Application: LBP / MBP
- Cooling capacity (ASHRAE LBP): 27.5 to 36.2 W (R134a) | 30.3 to 39.9 W (R1234yf)
- COP (ASHRAE LBP): up to 1.41 W/W (R134a) | up to 1.44 W/W (R1234yf)
- Evaporating temp. range: -30 to -5 °C
- Nominal voltage: 12 V DC (range 9.6-17 V)
- Speed range: 2,300 - 3,000 rpm
- Electronic unit: 101N32xx, 0.055 kg
- Communication: LIN hardware, Modbus protocol
- Mechanical: ISO 16750 compliant
- Manufacturing: IATF 16949 certified plant, Tianjin
- Height and weight: 93.3 mm · 1.37 kg compressor
